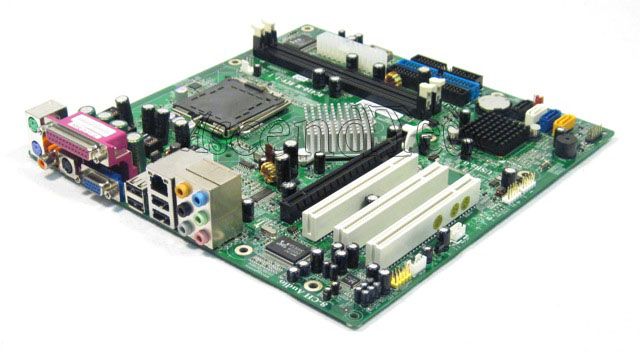

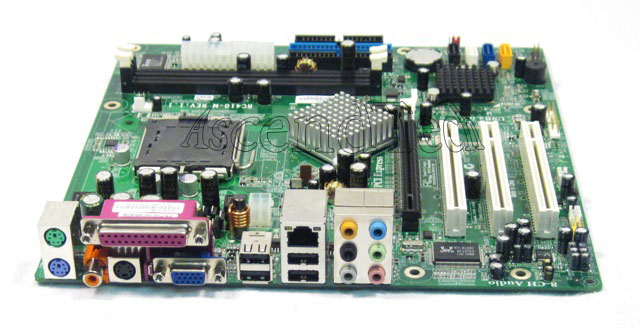

RC410-M V.1.1 | Ecs Rc410-M Lga775 Ddr2 Pcie Sata Board

ECS RC410-M Socket LGA775 800FSB Motherboard. ECS Raises The Bar Of PC Industry And Deliver A Full-value, High-performance Solution For Today's Most Demanding Tasks.

Please note this motherboard does not come with rear I/O shield also known as back-plate cover.

Specifications:

Motherboard description	Motherboard manufacturer's name: ECS RC410-M Rev 1.1
CPU/Processor	Socket: 775 Supports the following processors: Pentium D 900 series Dual Core (Presler) Pentium D 800 series Dual Core (Smithfield) Pentium 4 500 (Prescott) Pentium 4 600 (Prescott) Celeron D (Prescott) Celeron D (Cedar Mill)
Front-side bus (FSB)	800/533 MHz
Chipset	Northbridge: ATI RC410 Southbridge: ATI IXP450
BIOS features	AMI BIOS
Form factor	Micro ATX size form factor, 9.6 in x 9.6 in
Memory	Single-channel memory architecture 2 x 240-pin DIMM sockets support unbuffered non-ECC 400 or 533 MHz Only! Maximum eMachines approved memory is 2 GB
Expansion slots	Three PCI One PCI Express
Video graphics	Integrated Supports PCI Express x16 graphics cards
Onboard audio or audio card	Built-in Azalia 8 channel audio Realtek ALC882 or ALC883 8-channel High Definition Audio CODEC
Onboard LAN	Realtek RTL8100 10/100 Mbps Fast Ethernet controller
Back panel I/O	PS/2 keyboard (purple) PS/2 mouse (green) One SPDIF out port One S-video out port One VGA out port One Parallel port Four USB (2.0) One RJ-45 networking port (LAN) Audio ports: line in (light blue) line out (lime) microphone (pink) side speaker out (gray) rear speaker out (black) center/subwoofer (yellow orange)
Internal connectors	Two IDE connectors One floppy drive connector One ATX 24-pin power connector One ATX 4-pin +12v power connector Four Serial ATA connectors One VGA connector One CPU fan connector One PC fan connector One CD_IN connector One front panel audio connector One PC panel connector Two USB connectors supporting 2.0 ports
