ECS RC410-M LGA775 DDR2 PCIe x16 SATA MB

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.
Ecs Rc410-M Lga775 Ddr2 Pcie X16 Sata Mb. Model: Rc410-M Rev.1.01B
  Enlarge
*Note this image is for descriptional purposes.
Actual product may vary.
Item Code MB4ECS410M
Brand Hp / Compaq - Hewlett-Packard
Model RC410-M Rev.1.01B
Category Intel Lga775 Motherboards

Description

ECS RC410-M Rev.1.01B Socket LGA775 PCI-Express x16 DDR2 SATA Motherboard With On-Board ATI Xpress 200 Video, 8-Channel HD High Definition Audio, 10/100 Ethernet Adapter (Lan) & FireWire For Intel Socket 775 Processors (CPU).

Specifications:

*This Model Motherboard Does Not Come With Rear I/O Shield (BackPlate) Cover.

CPU/Processor
  • Socket: 775
  • Supports the following processors:
    • Pentium D 900 series Dual Core (Presler)
    • Pentium D 800 series Dual Core (Smithfield)
    • Pentium 4 500 (Prescott)
    • Pentium 4 600 (Prescott)
    • Celeron D (Prescott)
    • Celeron D (Cedar Mill)
Front-side bus (FSB)
  • 800/533 MHz
Chipset
  • Northbridge: ATI RC410
  • Southbridge: ATI IXP450
BIOS features
  • AMI BIOS
Form factor
  • Micro ATX size form factor, 9.6 in x 9.6 in
Memory
  • Single-channel memory architecture
  • 2 x 240-pin DIMM sockets support unbuffered non-ECC 400/533 MHZ DDR2 memory modules
  • Maximum HP/Compaq approved memory is 2 GB
Expansion slots
  • Three PCI
  • One PCI Express
Video graphics
  • Integrated
  • Supports PCI Express x16 graphics cards
Onboard audio or audio card
  • Built-in Azalia 8 channel audio
  • Realtek ALC882 or ALC883 8-channel High Definition Audio CODEC
Onboard LAN
  • Realtek RTL8100 10/100 Mbps Fast Ethernet controller
Back panel I/O
  • PS/2 keyboard (purple)
  • PS/2 mouse (green)
  • One SPDIF out port
  • One S-video out port
  • One VGA out port
  • One Parallel port
  • Four USB (2.0)
  • One RJ-45 networking port (LAN)
  • Audio ports:
    • line in (light blue)
    • line out (lime)
    • microphone (pink)
    • side speaker out (gray)
    • rear speaker out (black)
    • center/subwoofer (yellow orange)
Internal connectors
  • Two IDE connectors
  • One floppy drive connector
  • One ATX 24-pin power connector
  • One ATX 4-pin +12v power connector
  • Four Serial ATA connectors
  • One VGA connector
  • One IEEE 1394a connector
  • One CPU fan connector
  • One PC fan connector
  • One CD_IN connector
  • One front panel audio connector
  • One PC panel connector
  • Two USB connectors supporting 2.0 ports

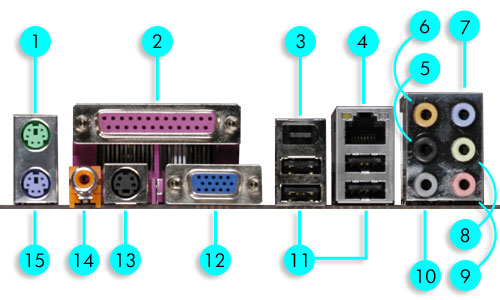

1 - PS/2 mouse port (green). This port is for a PS/2 mouse.
2 - Parallel port. This 25-pin port connects a parallel printer, a scanner, or other devices.
3 - IEEE 1394a port. This 6-pin IEEE 1394a port provides high-speed connectivity for audio/video devices, storage peripherals, PCs, or portable devices.
4 - LAN (RJ-45) port. This port allows connection to a Local Area Network (LAN) through a network hub.
5 - Rear Speaker Out port (black). This port connects to the rear speakers on a 4-channel, 6-channel, or 8-channel audio configuration.
6 - Center/Subwoofer port (yellow orange). This port connects the center/subwoofer speakers.
7 - Line In port (light blue). This port connects a tape, CD, DVD player or other audio sources.
8 - Line Out port (lime). This port connects a headphone or a speaker. In 4-channel, 6-channel, and 8-channel mode, the function of this port becomes Front Speaker Out.
9 - Microphone port (pink). This port connects a microphone.
10 - Side Speaker Out port (gray). This port connects to the side speakers in an 8-channel audio configuration.
11 - USB 2.0 ports 1, 2, 3, and 4. These four 4-pin Universal Serial Bus (USB) ports are available for connecting USB 2.0 devices.
12 - Video Graphics Adapter port. This 15-pin port is for a VGA monitor or other VGA-compatible devices.
13 - S-Video: common to many home video components. The video signal is split up into two channels, providing good image fidelity.
14 - Coaxial S/PDIF Out port. This port connects an external audio output device via a coaxial S/PDIF cable.
15 - PS/2 keyboard port (purple). This port is for a PS/2 keyboard.
