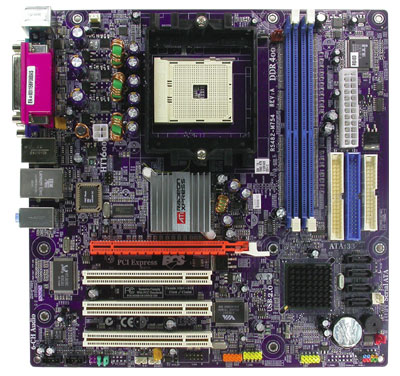

ECS RS482-M754 V.1.0 ATHLON 64 MBOARD

ECS RS482-M754 (V1.0) Socket 754 Motherboard for AMD Athlon 64 processor. Features: ATI Radeon Xpress 200 support, AMD Athlon 64/ Sempron processors, HT 1600 MT/s system bus and DDR 400, high-quality 6-channel audio, SATA support allows you to join several hard drives and increase data transfer by separating data (RAID 0) or by keeping 100% secure data duplication (RAID 1)

Specifications:

CPU:
Socket 754 for AMD Athlon™ 64/Sempron™ processor
High-performance Hyper Transport CPU interface.
Support transfer rate of 1600/1200/800/400 mega-transfers per second.
CHIPSET:
ATI® RS482 & SB400
North Bridge: ATI® RS482
South Bridge: ATI® SB 400
GRAPHICS:
On Chip (Radeon X300-based. 2D/3D graphic engine)
MEMORY:
Single-channel DDR memory architecture
2 x 184-pin DDR DIMM socket support up to 2 GB
Support DDR400/333/266 DDR SDRAM
EXPANSION SLOT:
1 x PCI Express x16 slot
3 x PCI slots
STORAGE:
Supported by SB 400
4 x Ultra DMA133/100/66 devices
4 x Serial ATA devices
RAID0 & RAID1 configuration
IEEE 1394a (optional):
TI TSB43AB22A support 2 x IEEE1394a ports
AUDIO:
Realtek ALC655 6-Channel audio CODEC
Compliant with AC'97 2.3 specification
LAN:
Realtek RTL8100C 10/100 Mbps Fast Ethernet Controller
REAR PANEL I/O :
1 x PS/2 keyboard & PS/2 mouse connectors
4 x USB ports
1 x VGA port
1 x RJ45 LAN connector
1 x 1394a port(optional)
1 x Parallel port (LPT1)
1 x Serial port (COM1)
1 x Audio port (Line-in, Line-out, Mic-in)
INTERNAL I/O CONNECTORS & HEADERS:
1 x 24-pin ATX Power Supply connector
1 x 4-pin ATX 12V connector
1 x FDD connector supports two 360K~2.88MB FDDs
2 x IDE connectors
4 x Serial ATA connectors
1 x IrDA for SIR header
1 x COM2 header (optional)
1 x 1394a header(optional)
2 x USB 2.0 headers support additional 4 USB Ports
1 x TV out header
1 x SPDIF out header
1 x Front panel switch/LED header
1 x Front panel audio header
CD in/ AUX in headers
CPUFAN/PWRFAN/SYSFAN connectors
SYSTEM BIOS:
Award BIOS with 4Mb Flash ROM
Supports Plug and Play 1.0A, APM 1.2, Multi Boot, DMI
Supports ACPI revision 1.0 specification
FORM FACTOR:
Micro-ATX Size, 244mm*244mm
PRODUCT TYPE:
Recertified
