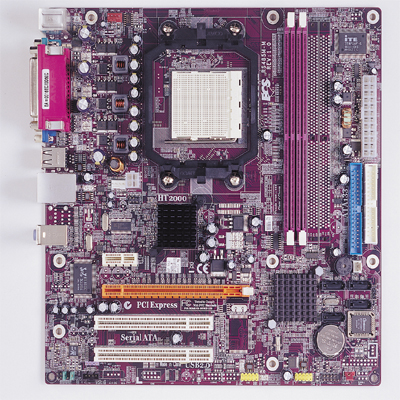

ECS RS485M-M ATI RS485 AM2 Radeon X300

ECS RS485M-M (V1.0) Socket AM2 Motherboard. Supports AMD Socket AM2 Athlon 64/Athlon 64 X2 Dual-Core/Athlon 64 FX processors. Features SATA Raid 0/1, Dual-DDR2 800 Memory architecture, HIGH-quality 6-channel audio, integrated ATI RADEON X300-based 2D/3D graphics core.


Specifications:

CPU:
Socket AM2 with AMD Athlon 64 FX/ Athlon 64/ Athlon 64 X2 Dual-Core/ Sempron processor
High-performance Hyper Transport CPU interface.
Support transfer rate of 2000/1600/1200/800/400 mega-transfers per second.

CHIPSET:
ATI RS485 & ATI SB460
North Bridge: ATI® RS485
South Bridge: ATI® SB460

GRAPHICS:
On Chip (Radeon X300-based. 2D/3D graphic engine)
Share Memory: Maximum up to 256MB

MEMORY:
Dual-channel DDR2 memory architecture
2 x 240-pin DDR2 DIMM socket support up to 16 GB
Support DDR2 800/667/533/400 DDR2 SDRAM

EXPANSION SLOT:
1 x PCI Express x16 slot
1 x PCI Express x1 slot
2 x PCI slots

STORAGE:
Supported by SB460
2 x Ultra DMA133/100/66 devices
4 x Serial ATA devices
RAID0 & RAID1 configuration

AUDIO:
Realtek ALC655 6-Channel audio CODEC

REAR PANEL I/O:
1 x PS/2 keyboard & PS/2 mouse connectors
1 x Parallel port (LPT1)
1 x Serial port (COM1)
1 x VGA port
1 x RJ45 LAN connector
4 x USB ports
1 x Audio port (Line-in, Line-out, Mic-in)

INTERNAL I/O CONNECTORS & HEADERS:
1 x 24-pin ATX Power Supply connector
1 x 4-pin ATX 12V connector
1 x IDE connector
4 x Serial ATA connectors
2 x USB 2.0 headers support additional 4 USB Ports
1 x SPDIF out header
1 x Front panel switch/LED header
1 x Front panel audio header
CD in header
CPUFAN/NBFAN/SYSFAN connectors

SYSTEM BIOS:
Award BIOS with 4Mb Flash ROM
Supports Plug and Play 1.0A, APM 1.2, Multi Boot, DMI
Supports ACPI revision 1.0 specification

FORM FACTOR:
Micro-ATX Size, 244mm*244mm

PRODUCT TYPE:
Recertified
