ECS VX900-I L2007 DDR3 SATA2 Motherboard

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.

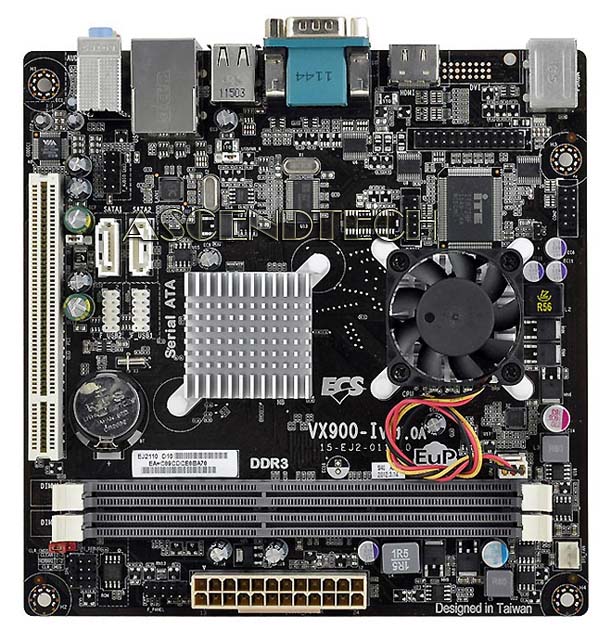

Ecs Vx900-I L2007 Ddr3 Sata2 Motherboard. Model: Vx900-I (V1.0A)
  Enlarge
Ecs Vx900-I L2007 Ddr3 Sata2 Motherboard. Model: Vx900-I (V1.0A)
Ecs Vx900-I L2007 Ddr3 Sata2 Motherboard. Model: Vx900-I (V1.0A)
Ecs Vx900-I L2007 Ddr3 Sata2 Motherboard. Model: Vx900-I (V1.0A)
*Note this image is for descriptional purposes.
Actual product may vary.
Item Code MBDTECSVX900IV1
Brand Ecs - Elitegroup
Model VX900-I (V1.0A)
Category Motherboard & Cpu - Ready To Go Combos
Condition New Open Box

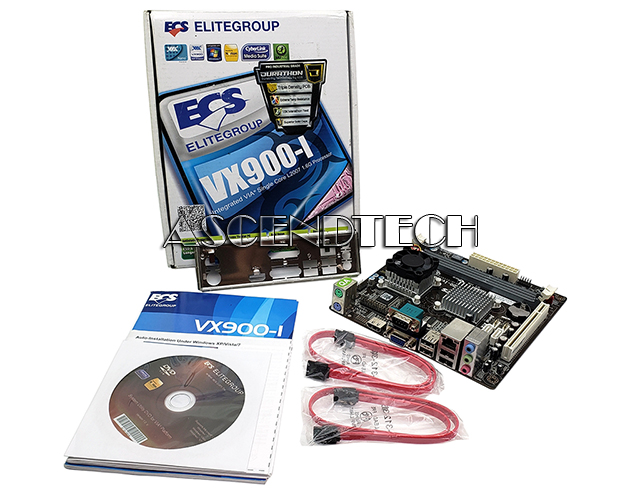

Condition Description Please Note Motherboard comes with I/O Shield, 2 SATA Cables, Manuals, and System Utility DVD

Description

ECS VX900-I V1.0A VIA VX900 Chipset VIA NANO L2007 Processor Dual DDR3 SATA 3GB/S Mini-ITX Motherboard.

ECS Model Number: VX900-I V1.0A
Includes: I/O Shield, 2 SATA Cables, Manuals, and System Utility DVD







Features:

ECS VX900-I motherboard supports the latest DDR3 system memory at speeds of up to 1066MHz and is compatible with the VIA Nano L2007 processor.
Integrated LVDS for an extra display option
Applied Solid Capacitor for CPU VRM to ensure a longer lifespan for system
ECS Durathon Technology ensure the stability, reliability and performance of system.
ESD Protection prevents computers from electrostatic discharge damage to enhance its durability and lifespan
Dual Display design for multiple output support
1 COM designed for various IPC applications
Windows 8 Workable support
Supports DirectX 9.0 to enhance graphical performance
Supports HDMI 1.4a Technology ( resolution up to 1920X1200 ) and HDCP function







Specifications:

CPU

Onboard VIA NANO L2007 processor

Chipset

VIA VX900 (Colay VX900H)

Graphics

VIA Chrome 9 HD graphics
Supports HDMI 1.4a & Premium Audio
Supports Full HD 1080P Blu-ray / HD-DVD Playback

Memory

Single-channel DDR3 Memory architecture
Supports DDR3 1066 non-ECC, Un-buffered SDRAM Memory
2 X 240-pin DDR3 DIMM socket
Support up to 8 GB*
* Due to the operation system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation

Expansion Slot

1 X PCI slot(s)

Storage

Support by VIA VX900 Express Chipset
2 X Serial ATAII 3Gb/s
Supports NCQ, AHCI and "Hot Plug" functions

Audio

6-Channel HD audio CODEC
Compliant with HD audio specification
VIA 1705
‧VIA VT1705 6-channel High Definition audio CODEC
‧Compliant with HD audio specification for a whole new immersive surround sound experience
‧3 DACs and 2 ADCs with High-performance ADCs with 100dB SNR, DACs with 100dB SNR
‧Low Power Consumption
‧Capability for “full rate” BluRay / DVD / HD DVD support.
BluRay DVD/HD DVD support

LAN

Realtek 8111E Gigabit Fast Ethernet Controller
( Realtek 8105E 10/100Mbps Fast Ethernet Controller optional)
Wake-On-LAN

USB

Support by VIA VX900 Express Chipset
8 X USB2.0 port(s) Up to 480 Mb/s
Back Panel 4 port(s)
Onboard 4 port(s)

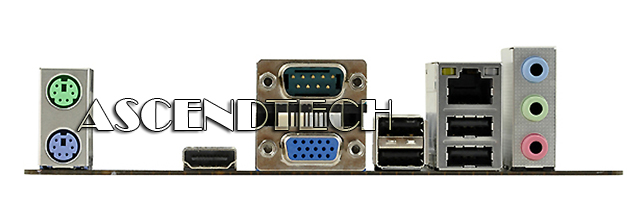

Rear Panel I/O

1 X PS/2 Keyboard & PS/2 mouse connectors
1 X Serial port (COM)
1 X Audio port (Line Out/Line In/Mic In)
1 X RJ-45 port
1 X D-Sub (VGA) port(s)
1 X HDMI port(s) (DVI port(s), optional)
4 X USB2.0 port(s)

Connectors and Headers

1 X 24-pin ATX Power Supply connector
1 X 3-pin CPU_FAN connector with smart fan
1 X 3-pin SYS_FAN connector
1 X Front Panel switch/LED header
1 X Front panel audio header
2 X USB 2.0 header
Support additional 4 USB ports
2 X SATA II 3Gb/s connector(s)
1 X CLR_CMOS header
2 X Serial port header (COM)
1 X Parallel port header (LPT)
1 X Chassis intrusion header
1 X LVDS connector (optional)

System BIOS

AMI BIOS with 8 MB SPI Flash ROM
Dual Display
Plug and Play, STR (S3) / STD (S4) , Hardware monitor, Multi Boot
Multi-Language BIOS

Form Factor

Mini ITX Form Factor
170mm(W)*170mm(H)
