ECS X77H2-A3 V1.2 DDR3 Intel Motherboard

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.

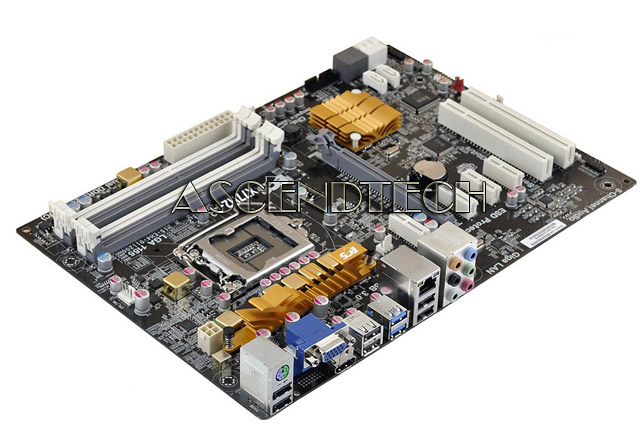

Ecs X77h2-A3 V1.2 Ddr3 Intel Motherboard. Model: X77h2-A3 (V1.2)
  Enlarge
Ecs X77h2-A3 V1.2 Ddr3 Intel Motherboard. Model: X77h2-A3 (V1.2)
Ecs X77h2-A3 V1.2 Ddr3 Intel Motherboard. Model: X77h2-A3 (V1.2)
Ecs X77h2-A3 V1.2 Ddr3 Intel Motherboard. Model: X77h2-A3 (V1.2)
*Note this image is for descriptional purposes.
Actual product may vary.
Item Code MBECSLGAX77H2A3
Brand Ecs - Elitegroup
Model X77H2-A3 (V1.2)
Category Intel Lga1155 Motherboard

Description

ECS X77H2-A3 (V1.2) Intel H77 Dual Channel DDR3 USB 3.0 SATA 3.0GB/s Socket LGA1155 ATX Desktop Motherboard. ECS meets the current and future demands of high performance, power embedded computing, making it ideal for communications, transaction terminal, interactive client, industrial automation applications as well as for standard home use.




Specifications:

CPUº Supports new 2nd & 3rd gen Intel® Core™ family, Pentium, Celeron series processors in LGA1155 socket
º DMI 5.0GT/s
º 100% Solid capacitor design
º Supports Intel® Hyper-Threading Technology
º Please refer to CPU support list for details

CHIPSETº Intel® H77 Express Chipset
º Intel® Smart Response Technology, Intel® Smart Connect Technology & Intel® Rapid Start Technolog

GRAPHICSº Support Intel® HD Graphics 2500/4000(Intel 3rd gen CPU)
º Supports DirectX® 11
º *DirectX 11 - Only supported with the 3rd Gen Intel processors for LGA 1155 socket
º Supports Intel® HD Graphics, InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
º Supports HDMI 1.4a & Premium Audio

MEMORYº Dual-channel DDR3 Memory architecture
º Supports DDR3 1600/1333/1066 non-ECC, Un-buffered SDRAM Memory
º 4 X 240-pin DDR3 DIMM socket
º Support up to 32 GB*
º * Due to the operation system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU,
     there is no such limitation
º Note:Please refer to the latest Memory support list for details

EXPANSION SLOTº 1 X PCI Express X16 Gen 3.0 slot(s)
º 4 X PCI Express X 1 Gen 2.0 slot(s)
º 2 X PCI slot(s)

Storageº Support by Intel® H77 Express Chipset
    • 2 X Serial ATAIII 6Gb/s
    • 4 X Serial ATAII 3Gb/s
    • RAID0, RAID1,RAID5, RAID 10 configuration
º Supports Intel® Rapid Storage Technology
º Supports NCQ, AHCI and "Hot Plug" functions

Audioº 8-Channel HD audio CODEC
º Compliant with HD audio specification
º Realtek ALC892
‧Realtek ALC892 8-channel High Definition audio CODEC
‧Compatible with Direct Sound 3D™, A3D™, I3DL2
‧Smart multiple streaming operation
‧Intuitive Configuration Panel (Realtek Audio Manager) to enhance user experience
‧7.1+2 channel multi-streaming enables concurrent gaming/VoIP

LANº RealTek RTL 8111E Gigabit Fast Ethernet Controller
º Wake-On-LAN

USBº Support by Intel® H77 Express Chipset
    • 4 X USB3.0 port(s) up to 5Gb/s
      Back Panel 2 port(s)
      Onboard 2 port(s)
    • 10 X USB2.0 port(s) Up to 480 Mb/s
      Back Panel 6 port(s)
      Onboard 4 port(s)
º ECS EZ Charger (Gray USB header)

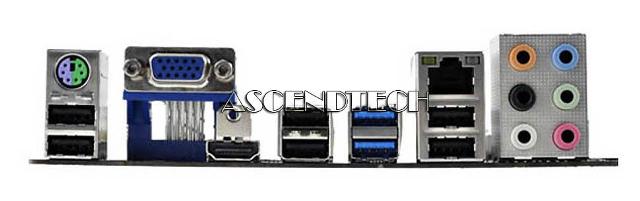

REAR PANEL I/Oº 1 X PS/2 combo connector
º 1 X Audio port (Line-in,4x Line-out, Mic in)
º 1 X RJ-45 port
º 1 X D-Sub (VGA) port(s)
º 1 X DVI port(s) (HDMI port(s), optional)
º 2 X USB3.0 port(s)
º 6 X USB2.0 port(s)

CONNECTORS & HEADERSº 1 X 24-pin ATX Power Supply connector
º 1 X 4-pin 12V Power connector
º 1 X 4-pin CPU_FAN connector
º 1 X 3-pin SYS_FAN connector with smart fan
º 1 X 3-pin PWR_FAN connector
º 1 X Front Panel switch/LED header
º 1 X Front panel audio header
º 1 X USB 3.0 header
    • Support additional 2 USB ports
º 2 X USB 2.0 header
    • Support additional 4 USB ports
º Support EZ charger (gray color)
º 1 X S/PDIF out header
º 2 X SATA III 6Gb/s connector(s)
º 4 X SATA II 3Gb/s connector(s)
º 1 X CLR_CMOS header
º 1 X Serial port header (COM)
º 1 X Chassis intrusion header

SYSTEM BIOSº AMI BIOS with 64 MB SPI Flash ROM
º Supports M.I.B III Utility
º F7 hot key for boot up devices option
º Dual Display
º Support ECS EZ BIOS
º Plug and Play, STR (S3) / STD (S4) , Hardware monitor, Multi Boot
º Multi-Language BIOS
º Audio, LAN, can be disabled in BIOS
º Supports PgUp clear CMOS Hotkey

FORM FACTORº ATX Form Factor
º  305mm(W)*210mm(H)









Compatible CPU:

SocketFamilyProcessor*WattageFrequencyCacheSteppingSince BIOS
LGA1155Intel Core™ i72600 (SNB)95W3.40GHz8MBD208/02/2013
LGA1155Intel Core™ i72600K (SNB)95W3.40GHz8MBD208/02/2013
LGA1155Intel Core™ i72600S (SNB)65W2.80GHz8MBD208/02/2013
LGA1155Intel Core™ i72700K (SNB)95W3.50GHz8MBD208/02/2013
LGA1155Intel Core™ i73770 (IVB)77W3.40GHz6MBE008/02/2013
LGA1155Intel Core™ i73770K (IVB)77W3.50GHz8MBE008/02/2013
LGA1155Intel Core™ i73770K (IVB)77W3.50GHz8MBE108/02/2013
LGA1155Intel Core™ i73770S (IVB)65W3.10GHz6MBE008/02/2013
LGA1155Intel Core™ i52300 (SNB)95W2.80GHz6MBD208/02/2013
LGA1155Intel Core™ i52310 (SNB)65W2.90GHz6MBQ008/02/2013
LGA1155Intel Core™ i52320 (SNB)95W3.00GHz6MBD208/02/2013
LGA1155Intel Core™ i52380P (SNB)95W3.10GHz6MBD208/02/2013
LGA1155Intel Core™ i52390T (SNB)35W2.70GHz6MBQ008/02/2013
LGA1155Intel Core™ i52400 (SNB)95W3.10GHz6MBD208/02/2013
LGA1155Intel Core™ i52400S (SNB)65W2.50GHz6MBD208/02/2013
LGA1155Intel Core™ i52405S (SNB)65W2.50GHz6MBD208/02/2013
LGA1155Intel Core™ i52450P (SNB)95W3.20GHz6MBD208/02/2013
LGA1155Intel Core™ i52500 (SNB)95W3.30GHz6MBD208/02/2013
LGA1155Intel Core™ i52500K (SNB)95W3.30GHz6MBD208/02/2013
LGA1155Intel Core™ i52500S (SNB)65W2.70GHz6MBD208/02/2013
LGA1155Intel Core™ i52500T (SNB)45W2.30GHz6MBD208/02/2013
LGA1155Intel Core™ i53330 (IVB)77W3.00GHz6MBE008/02/2013
LGA1155Intel Core™ i53330 (IVB)77W3.00GHz6MBE108/02/2013
LGA1155Intel Core™ i53330S (IVB)65W2.70GHz6MBE008/02/2013
LGA1155Intel Core™ i53330S (IVB)65W2.70GHz6MBE108/02/2013
LGA1155Intel Core™ i53450 (IVB)77W3.10GHz6MBE008/02/2013
LGA1155Intel Core™ i53450 (IVB)77W3.10GHz6MBE108/02/2013
LGA1155Intel Core™ i53450S (IVB)65W2.80GHz6MBE008/02/2013
LGA1155Intel Core™ i53470 (IVB)77W3.20GHz6MBN003/05/2012
LGA1155Intel Core™ i53470S (IVB)65W2.90GHz6MBN003/05/2012
LGA1155Intel Core™ i53470T (IVB)35W2.90GHz3MBL103/05/2012
LGA1155Intel Core™ i53475S (IVB)65W2.90GHz6MBE008/02/2013
LGA1155Intel Core™ i53550 (IVB)77W3.30GHz6MBE008/02/2013
LGA1155Intel Core™ i53550 (IVB)77W3.30GHz6MBE108/02/2013
LGA1155Intel Core™ i53550S (IVB)65W3.00GHz6MBE008/02/2013
LGA1155Intel Core™ i53550S (IVB)65W3.00GHz6MBE108/02/2013
LGA1155Intel Core™ i53570 (IVB)77W3.40GHz6MBN003/05/2012
LGA1155Intel Core™ i53570K (IVB)77W3.40GHz6MBE008/02/2013
LGA1155Intel Core™ i53570K (IVB)77W3.40GHz6MBE108/02/2013
LGA1155Intel Core™ i53570S (IVB)65W3.10GHz6MBN003/05/2012
LGA1155Intel Core™ i53570T (IVB)45W2.30GHz6MBE008/02/2013
LGA1155Intel Core™ i32100 (SNB)65W3.10GHz3MBQ008/02/2013
LGA1155Intel Core™ i32100T (SNB)35W2.50GHz3MBQ008/02/2013
LGA1155Intel Core™ i32105 (SNB)65W3.10GHz3MBD208/02/2013
LGA1155Intel Core™ i32120 (SNB)65W3.30GHz3MBQ008/02/2013
LGA1155Intel Core™ i32120T (SNB)35W2.60GHz3MBD208/02/2013
LGA1155Intel Core™ i32125 (SNB)65W3.30GHz3MBQ008/02/2013
LGA1155Intel Core™ i32130 (SNB)65W3.40GHz3MBQ008/02/2013
LGA1155Intel Core™ i33210 (IVB)55W3.20GHz3MBP001/04/2013
LGA1155Intel Core™ i33220 (IVB)55W3.30GHz3MBL108/02/2013
LGA1155Intel Core™ i33220T (IVB)35W2.80GHz3MBL103/05/2012
LGA1155Intel Core™ i33225 (IVB)55W3.30GHz3MBL108/02/2013
LGA1155Intel Core™ i33240 (IVB)55W3.40GHz3MBL108/02/2013
LGA1155Intel Core™ i33240T (IVB)35W2.90GHz3MBL103/05/2012
LGA1155Intel Core™ i33245 (IVB)55W3.40GHz3MBL107/16/2013
LGA1155Intel Core™ i33250 (IVB)55W3.00GHz3MBP007/16/2013
LGA1155Intel Core™ i33250T (IVB)35W3.00GHz3MBP007/16/2013
LGA1155Intel PentiumG2010 (IVB)55W2.80GHz3MBP001/04/2013
LGA1155Intel PentiumG2020 (IVB)55W2.90GHz3MBP001/04/2013
LGA1155Intel PentiumG2020T (IVB)35W2.50GHz3MBP001/04/2013
LGA1155Intel PentiumG2030 (IVB)55W3.00GHz3MBP007/16/2013
LGA1155Intel PentiumG2030T (IVB)35W2.60GHz3MBP007/16/2013
LGA1155Intel PentiumG2120T (IVB)35W2.70GHz3MBP007/16/2013
LGA1155Intel PentiumG2130 (IVB)55W3.20GHz3MBP001/04/2013
LGA1155Intel PentiumG2140 (IVB)55W3.30GHz3MBP007/16/2013
LGA1155Intel PentiumG620 (SNB)65W2.60GHz3MBQ008/02/2013
LGA1155Intel PentiumG620T (SNB)35W2.20GHz3MBQ008/02/2013
LGA1155Intel PentiumG630 (SNB)65W2.70GHz3MBQ008/02/2013
LGA1155Intel PentiumG630T (SNB)35W2.30GHz3MBQ008/02/2013
LGA1155Intel PentiumG640 (SNB)65W2.80GHz3MBD208/02/2013
LGA1155Intel PentiumG640T (SNB)35W2.40GHz3MBD208/02/2013
LGA1155Intel PentiumG840 (SNB)65W2.80GHz3MBQ008/02/2013
LGA1155Intel PentiumG850 (SNB)65W2.90GHz3MBQ008/02/2013
LGA1155Intel PentiumG860 (SNB)65W3.00GHz3MBQ008/02/2013
LGA1155Intel PentiumG860T (SNB)35W2.60GHz3MBD208/02/2013
LGA1155Intel PentiumG870 (SNB)65W3.10GHz3MBD208/02/2013
LGA1155Intel CeleronG1610 (IVB)55W2.60GHz2MBP001/04/2013
LGA1155Intel CeleronG1610T (IVB)35W2.30GHz2MBP001/04/2013
LGA1155Intel CeleronG1620 (IVB)55W2.70GHz2MBP001/04/2013
LGA1155Intel CeleronG440 (SNB)35W1.60GHz1MBQ008/02/2013
LGA1155Intel CeleronG460 (SNB)35W1.80GHz1.5MBQ008/02/2013
LGA1155Intel CeleronG470 (SNB)35W2.00GHz1.5MBQ007/16/2013
LGA1155Intel CeleronG530 (SNB)65W2.40GHz2MBD208/02/2013
LGA1155Intel CeleronG530T (SNB)35W2.00GHz2MBQ008/02/2013
LGA1155Intel CeleronG540 (SNB)65W2.50GHz2MBQ008/02/2013
LGA1155Intel CeleronG540T (SNB)35W2.10GHz2MBD208/02/2013
LGA1155Intel CeleronG550 (SNB)65W2.60GHz2MBD208/02/2013
LGA1155Intel CeleronG550T35W2.20GHz2MBD203/05/2012
