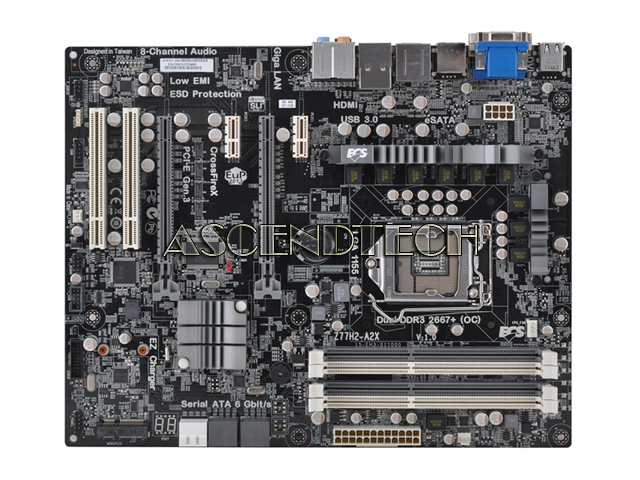

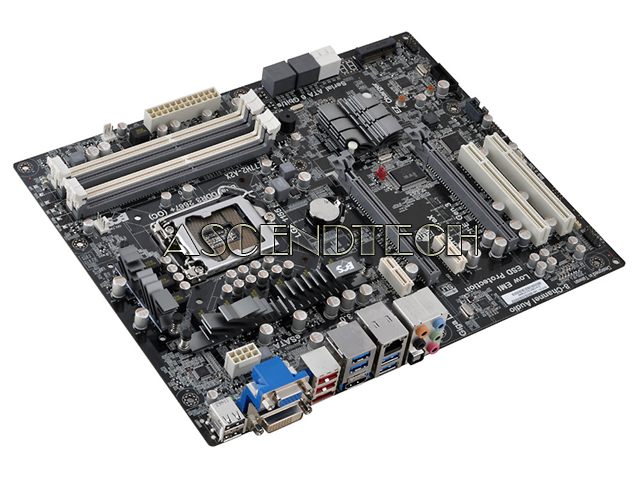

ECS Z77H2-A2X Deluxe V1.0 Motherboard
Description
ECS Z77H2-A2X Deluxe V1.0 LGA1155 HDMI SATA 6GB/s USB 3.0 ATX Intel Z77 Motherboard. When it comes to the quality and durability of your motherboard, ECS goes above and beyond industry standards to ensure that you have a motherboard that will last long and always continue to out perform the competition. ECS meets the current and future demands of high performance, power embedded computing, making it ideal for communications, transaction terminal, interactive client, industrial automation applications as well as for standard home use.
Features:
- 2-Way multi-graphics solution
- Applied 100% Solid capacitor design to maximize component reliability
- ECS Durathon Technology ensure the stability, reliability and performance of system. (Triple Density PCB; Extreme Temp Resistance; 1.5K Marathon Test; Superior Solid CAPs)
- Introduced ECS Hyper Alloy Choke to offer 150% higher stability than other products
- ESD Protection prevents computers from electrostatic discharge damage to enhance its durability and lifespan
- ECS EZ charger provides a fast way to charge your smart devices, even if the PC is off Supports
- ECS EZ BIOS for tweaking BIOS in graphical user interface within a multi language environment
- ECS MIB X - A friendly interface for overclocking, especially for gamer
- Supports Bluetooth allows electronic devices to communicate wirelessly
- Supports Wireless LAN allows electronic devices to communicate wirelessly
- Microsoft Windows 8 Certified
- Supports NVIDIA® SLI Technology to Intelligently scale graphics performance by combining multiple NVIDIA® graphics
- Supports DirectX® 11 to enhance graphical performance
- Supports ATI® CrossFireX™ to expand your system’s graphics capabilities
- Special bundled with LucidLogix® Virtu™ MVP for smart graphics switch
- Supports Sound Blaster Cinema2 technology to deliver cinema-quality picture and sound to home environments
- Supports Intel® Smart Response, Smart Connect and Rapid Start Technology
Specifications:
| CPU | º Supports new 2nd & 3rd gen Intel® Core™ family, Pentium, Celeron series processors in LGA1155 socket º DMI 5.0GT/s º 100% Solid capacitor design º Please refer to CPU support list for details |
| CHIPSET | º Intel® Z77 Express Chipset |
| GRAPHICS | º Supports DirectX® 11 º *DirectX 11 - Only supported with the 3rd Gen Intel processors for LGA 1155 socket |
| MEMORY | º Dual-channel DDR3 Memory architecture º Supports DDR3 1600 non-ECC, Un-buffered SDRAM Memory º Supports up to 2800(OC)/2600(OC)/2400(OC)/2133(OC)/1800(OC) º 4 X 240-pin DDR3 DIMM socket º Support up to 32 GB* º Note:Please refer to the latest Memory support list for details |
| EXPANSION SLOT | º 2 X PCI Express X16 Gen 3.0 slot(s) º 2 X PCI Express X 1 Gen 2.0 slot(s) º 1 X Mini PCI Express X1 slot(s)( Mini SATA supported) º 2 X PCI slot(s) º *When using two VGA cards, the bandwidth is @8 badnwidth; when using one VGA card, the bandwodth is @16. |
| Storage | º Support by Intel Z77 Express Chipset • 2 X Serial ATAIII 6Gb/s Located in SATA3_3/ 4 Port • 2 X Serial ATAII 3Gb/s Located in SATA2_1/ 2 Port º Support by ASMEDIA ASM1061 Controler • 2 X Serial ATAIII 6Gb/s Located in SATA3_5/6 Port • RAID0, RAID1,RAID5, RAID 10 configuration |
| Audio | º Compliant with HD audio specification º Realtek ALC892 ‧Realtek ALC892 8-channel High Definition audio CODEC ‧Compatible with Direct Sound 3D™, A3D™, I3DL2 ‧Smart multiple streaming operation ‧Intuitive Configuration Panel (Realtek Audio Manager) to enhance user experience ‧7.1+2 channel multi-streaming enables concurrent gaming/VoIP |
| LAN | º Realtek 8111E Gigabit Fast Ethernet Controller |
| USB | º Support by Z77 Express Chipset • 6 X USB3.0 port(s) up to 5Gb/s Back Panel 4 port(s) Onboard 2 port(s) • 6 X USB2.0 port(s) Up to 480 Mb/s Back Panel 4 port(s) Onboard 2 port(s) |

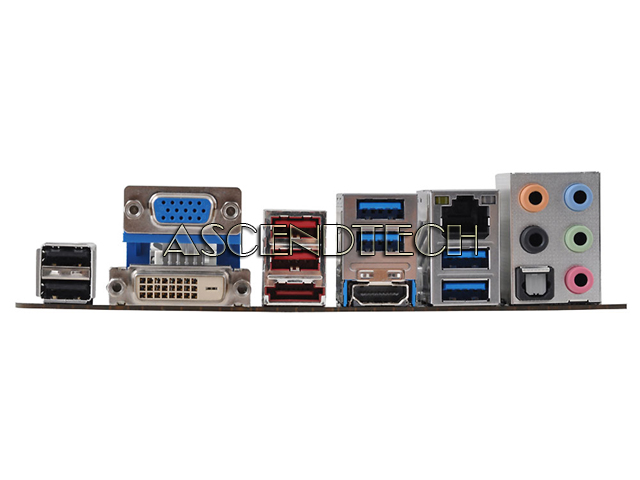

| REAR PANEL I/O | º 1 X Audio port (Line-in,4x Line-out, SPDIF out) º 1 X RJ-45 port º 1 X HDMI port(s) º 1 X DVI-I port(s) º 1 X D-Sub (VGA) port(s) º 1 X eSATA 3Gb/s port(s) º 4 X USB3.0 port(s) º 2 X USB2.0 port(s) |
| CONNECTORS & HEADERS | º 1 X 24-pin ATX Power Supply connector º 1 X 8-pin ATX 12V Power Connector º 1 X 4-pin CPU_FAN connector º 1 X 3-pin SYS_FAN connector º 1 X 3-pin PWR_FAN connector º 1 X Front Panel switch/LED header º 1 X Front panel audio header º 1 X Onboard Buzzer º 1 X USB 3.0 header • Support additional 2 USB ports º 1 X USB 2.0 header • Support additional 2 USB ports º Support EZ charger (gray color) º 4 X SATA III 6Gb/s connector(s) º 2 X SATA II 3Gb/s connector(s) º 1 X CLR_CMOS header º 1 X Serial port header (COM) |
| SYSTEM BIOS | º AMI BIOS with 64 MB SPI Flash ROM º Supports M.I.B X Utility º ACPI & DMI º F7 hot key for boot up devices option º Over-Clocking º Dual Display º Support GUI UEFI BIOS º Plug and Play, STR (S3) / STD (S4) , Hardware monitor, Multi Boot º Multi-Language BIOS º Audio, LAN, can be disabled in BIOS |
| FORM FACTOR | º ATX Form Factor º 305 mm(W) X 244mm(H) |
| OS Support | º Windows 7 32-bit º Windows 7 64-bit º Windows 8 32-bit º Windows 8 64-bit |
| Certifications | º CE/FCC Certification º ErP/EuP Certification º WHQL Certification º WHCK Certification |
CPU Socket List:
* means validated by ECS at time of writing. Changes to component or CPU may produce a different outcome. The result shown is for reference only and is subject to change without notification.
* Note: IVB means Ivy Bridge ; SNB means Sandy Bridge
Socket | Family | Processor * | Wattage | Frequency | Cache | Stepping | Since BIOS |
LGA1155 | Intel Core™ i7 | 2600 (SNB) | 95W | 3.40GHz | 8MB | D2 | 01/10/2013 |
LGA1155 | Intel Core™ i7 | 2600K (SNB) | 95W | 3.40GHz | 8MB | D2 | 01/10/2013 |
LGA1155 | Intel Core™ i7 | 2600S (SNB) | 65W | 2.80GHz | 8MB | D2 | 01/10/2013 |
LGA1155 | Intel Core™ i7 | 2700K (SNB) | 95W | 3.50GHz | 8MB | D2 | 01/10/2013 |
LGA1155 | Intel Core™ i7 | 3770 (IVB) | 77W | 3.40GHz | 6MB | E0 | 01/10/2013 |
LGA1155 | Intel Core™ i7 | 3770K (IVB) | 77W | 3.50GHz | 8MB | E0 | 01/10/2013 |
LGA1155 | Intel Core™ i7 | 3770K (IVB) | 77W | 3.50GHz | 8MB | E1 | 01/10/2013 |
LGA1155 | Intel Core™ i7 | 3770S (IVB) | 65W | 3.10GHz | 6MB | E0 | 01/10/2013 |
LGA1155 | Intel Core™ i5 | 2300 (SNB) | 95W | 2.80GHz | 6MB | D2 | 01/10/2013 |
LGA1155 | Intel Core™ i5 | 2310 (SNB) | 65W | 2.90GHz | 6MB | Q0 | 01/10/2013 |
LGA1155 | Intel Core™ i5 | 2320 (SNB) | 95W | 3.00GHz | 6MB | D2 | 01/10/2013 |
LGA1155 | Intel Core™ i5 | 2380P (SNB) | 95W | 3.10GHz | 6MB | D2 | 01/10/2013 |
LGA1155 | Intel Core™ i5 | 2390T (SNB) | 35W | 2.70GHz | 6MB | Q0 | 01/10/2013 |
LGA1155 | Intel Core™ i5 | 2400 (SNB) | 95W | 3.10GHz | 6MB | D2 | 01/10/2013 |
LGA1155 | Intel Core™ i5 | 2400S (SNB) | 65W | 2.50GHz | 6MB | D2 | 01/10/2013 |
LGA1155 | Intel Core™ i5 | 2405S (SNB) | 65W | 2.50GHz | 6MB | D2 | 01/10/2013 |
LGA1155 | Intel Core™ i5 | 2450P (SNB) | 95W | 3.20GHz | 6MB | D2 | 01/10/2013 |
LGA1155 | Intel Core™ i5 | 2500 (SNB) | 95W | 3.30GHz | 6MB | D2 | 01/10/2013 |
LGA1155 | Intel Core™ i5 | 2500K (SNB) | 95W | 3.30GHz | 6MB | D2 | 01/10/2013 |
LGA1155 | Intel Core™ i5 | 2500S (SNB) | 65W | 2.70GHz | 6MB | D2 | 01/10/2013 |
LGA1155 | Intel Core™ i5 | 2500T (SNB) | 45W | 2.30GHz | 6MB | D2 | 01/10/2013 |
LGA1155 | Intel Core™ i5 | 3330 (IVB) | 77W | 3.00GHz | 6MB | E0 | 01/10/2013 |
LGA1155 | Intel Core™ i5 | 3330 (IVB) | 77W | 3.00GHz | 6MB | E1 | 01/10/2013 |
LGA1155 | Intel Core™ i5 | 3330S (IVB) | 65W | 2.70GHz | 6MB | E0 | 01/10/2013 |
LGA1155 | Intel Core™ i5 | 3330S (IVB) | 65W | 2.70GHz | 6MB | E1 | 01/10/2013 |
LGA1155 | Intel Core™ i5 | 3450 (IVB) | 77W | 3.10GHz | 6MB | E0 | 01/10/2013 |
LGA1155 | Intel Core™ i5 | 3450 (IVB) | 77W | 3.10GHz | 6MB | E1 | 01/10/2013 |
LGA1155 | Intel Core™ i5 | 3450S (IVB) | 65W | 2.80GHz | 6MB | E0 | 01/10/2013 |
LGA1155 | Intel Core™ i5 | 3475S (IVB) | 65W | 2.90GHz | 6MB | E0 | 01/10/2013 |
LGA1155 | Intel Core™ i5 | 3550 (IVB) | 77W | 3.30GHz | 6MB | E0 | 01/10/2013 |
LGA1155 | Intel Core™ i5 | 3550 (IVB) | 77W | 3.30GHz | 6MB | E1 | 01/10/2013 |
LGA1155 | Intel Core™ i5 | 3550S (IVB) | 65W | 3.00GHz | 6MB | E0 | 01/10/2013 |
LGA1155 | Intel Core™ i5 | 3550S (IVB) | 65W | 3.00GHz | 6MB | E1 | 01/10/2013 |
LGA1155 | Intel Core™ i5 | 3570K (IVB) | 77W | 3.40GHz | 6MB | E0 | 01/10/2013 |
LGA1155 | Intel Core™ i5 | 3570K (IVB) | 77W | 3.40GHz | 6MB | E1 | 01/10/2013 |
LGA1155 | Intel Core™ i5 | 3570T (IVB) | 45W | 2.30GHz | 6MB | E0 | 01/10/2013 |
LGA1155 | Intel Core™ i3 | 2100 (SNB) | 65W | 3.10GHz | 3MB | Q0 | 01/10/2013 |
LGA1155 | Intel Core™ i3 | 2100T (SNB) | 35W | 2.50GHz | 3MB | Q0 | 01/10/2013 |
LGA1155 | Intel Core™ i3 | 2105 (SNB) | 65W | 3.10GHz | 3MB | D2 | 01/10/2013 |
LGA1155 | Intel Core™ i3 | 2120 (SNB) | 65W | 3.30GHz | 3MB | Q0 | 01/10/2013 |
LGA1155 | Intel Core™ i3 | 2120T (SNB) | 35W | 2.60GHz | 3MB | D2 | 01/10/2013 |
LGA1155 | Intel Core™ i3 | 2125 (SNB) | 65W | 3.30GHz | 3MB | Q0 | 01/10/2013 |
LGA1155 | Intel Core™ i3 | 2130 (SNB) | 65W | 3.40GHz | 3MB | Q0 | 01/10/2013 |
LGA1155 | Intel Core™ i3 | 3210 (IVB) | 55W | 3.20GHz | 3MB | P0 | 01/10/2013 |
LGA1155 | Intel Core™ i3 | 3220 (IVB) | 55W | 3.30GHz | 3MB | L1 | 01/10/2013 |
LGA1155 | Intel Core™ i3 | 3225 (IVB) | 55W | 3.30GHz | 3MB | L1 | 01/10/2013 |
LGA1155 | Intel Core™ i3 | 3240 (IVB) | 55W | 3.40GHz | 3MB | L1 | 01/10/2013 |
LGA1155 | Intel Core™ i3 | 3245 (IVB) | 55W | 3.40GHz | 3MB | L1 | 03/04/2013 |
LGA1155 | Intel Core™ i3 | 3250 (IVB) | 55W | 3.00GHz | 3MB | P0 | 03/04/2013 |
LGA1155 | Intel Core™ i3 | 3250T (IVB) | 35W | 3.00GHz | 3MB | P0 | 03/04/2013 |
LGA1155 | Intel Pentium | G2010 (IVB) | 55W | 2.80GHz | 3MB | P0 | 01/10/2013 |
LGA1155 | Intel Pentium | G2020 (IVB) | 55W | 2.90GHz | 3MB | P0 | 01/10/2013 |
LGA1155 | Intel Pentium | G2020T (IVB) | 35W | 2.50GHz | 3MB | P0 | 01/10/2013 |
LGA1155 | Intel Pentium | G2030 (IVB) | 55W | 3.00GHz | 3MB | P0 | 03/04/2013 |
LGA1155 | Intel Pentium | G2030T (IVB) | 35W | 2.60GHz | 3MB | P0 | 03/04/2013 |
LGA1155 | Intel Pentium | G2120T (IVB) | 35W | 2.70GHz | 3MB | P0 | 03/04/2013 |
LGA1155 | Intel Pentium | G2130 (IVB) | 55W | 3.20GHz | 3MB | P0 | 01/10/2013 |
LGA1155 | Intel Pentium | G2140 (IVB) | 55W | 3.30GHz | 3MB | P0 | 03/04/2013 |
LGA1155 | Intel Pentium | G620 (SNB) | 65W | 2.60GHz | 3MB | Q0 | 01/10/2013 |
LGA1155 | Intel Pentium | G620T (SNB) | 35W | 2.20GHz | 3MB | Q0 | 01/10/2013 |
LGA1155 | Intel Pentium | G630 (SNB) | 65W | 2.70GHz | 3MB | Q0 | 01/10/2013 |
LGA1155 | Intel Pentium | G630T (SNB) | 35W | 2.30GHz | 3MB | Q0 | 01/10/2013 |
LGA1155 | Intel Pentium | G640 (SNB) | 65W | 2.80GHz | 3MB | D2 | 01/10/2013 |
LGA1155 | Intel Pentium | G640T (SNB) | 35W | 2.40GHz | 3MB | D2 | 01/10/2013 |
LGA1155 | Intel Pentium | G840 (SNB) | 65W | 2.80GHz | 3MB | Q0 | 01/10/2013 |
LGA1155 | Intel Pentium | G850 (SNB) | 65W | 2.90GHz | 3MB | Q0 | 01/10/2013 |
LGA1155 | Intel Pentium | G860 (SNB) | 65W | 3.00GHz | 3MB | Q0 | 01/10/2013 |
LGA1155 | Intel Pentium | G860T (SNB) | 35W | 2.60GHz | 3MB | D2 | 01/10/2013 |
LGA1155 | Intel Pentium | G870 (SNB) | 65W | 3.10GHz | 3MB | D2 | 01/10/2013 |
LGA1155 | Intel Celeron | G1610 (IVB) | 55W | 2.60GHz | 2MB | P0 | 01/10/2013 |
LGA1155 | Intel Celeron | G1610T (IVB) | 35W | 2.30GHz | 2MB | P0 | 01/10/2013 |
LGA1155 | Intel Celeron | G1620 (IVB) | 55W | 2.70GHz | 2MB | P0 | 01/10/2013 |
LGA1155 | Intel Celeron | G440 (SNB) | 35W | 1.60GHz | 1MB | Q0 | 01/10/2013 |
LGA1155 | Intel Celeron | G460 (SNB) | 35W | 1.80GHz | 1.5MB | Q0 | 01/10/2013 |
LGA1155 | Intel Celeron | G470 (SNB) | 35W | 2.00GHz | 1.5MB | Q0 | 03/04/2013 |
LGA1155 | Intel Celeron | G530 (SNB) | 65W | 2.40GHz | 2MB | D2 | 01/10/2013 |
LGA1155 | Intel Celeron | G530T (SNB) | 35W | 2.00GHz | 2MB | Q0 | 01/10/2013 |
LGA1155 | Intel Celeron | G540 (SNB) | 65W | 2.50GHz | 2MB | Q0 | 01/10/2013 |
LGA1155 | Intel Celeron | G540T (SNB) | 35W | 2.10GHz | 2MB | D2 | 01/10/2013 |
LGA1155 | Intel Celeron | G550 (SNB) | 65W | 2.60GHz | 2MB | D2 | 01/10/2013 |
LGA1155 | Intel Celeron | G550T | 35W | 2.20GHz | 2MB | D2 | 03/28/2012 |
