ECS Z77H2-A2X Deluxe V2.0 SATA3 USB 3.0

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.
Ecs Z77h2-A2x Deluxe V2.0 Sata3 Usb 3.0. Model: Z77h2-A2x Deluxe No I/O
  Enlarge

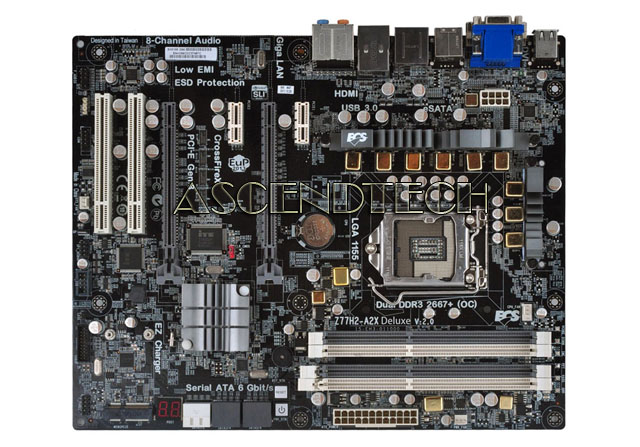

Ecs Z77h2-A2x Deluxe V2.0 Sata3 Usb 3.0. Model: Z77h2-A2x Deluxe No I/O

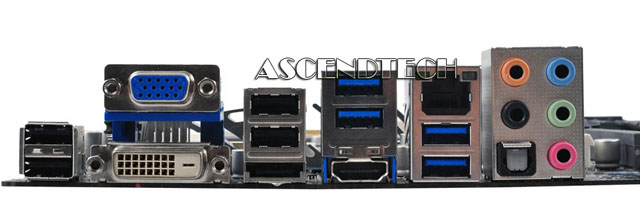

Ecs Z77h2-A2x Deluxe V2.0 Sata3 Usb 3.0. Model: Z77h2-A2x Deluxe No I/O

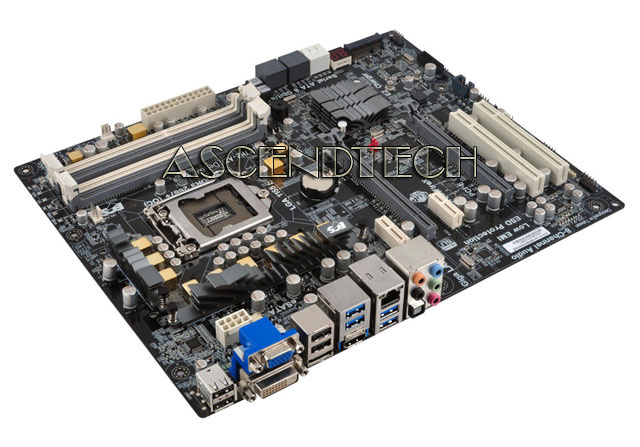

Ecs Z77h2-A2x Deluxe V2.0 Sata3 Usb 3.0. Model: Z77h2-A2x Deluxe No I/O
*Note this image is for descriptional purposes.
Actual product may vary.
Item Code MBECSZ77H2A2XDN
Brand Ecs - Elitegroup
Model Z77H2-A2X Deluxe No I/O
Category Intel Lga1155 Motherboard

Description

ECS Z77H2-A2X Deluxe V2.0 LGA 1155 Intel Z77 DDR3 HDMI DVI VGA USB3.0 ATX Desktop Motherboard. ECS meets the current and future demands of high performance, power embedded computing, making it ideal for communications, transaction terminal, interactive client, industrial automation applications as well as for standard home use.

Please Note: This is an OEM motherboard and it does not come with rear I/O shield also known as back-plate cover. This part is not needed and you can still install the board in standard ATX case.





Features:

  • Way multi-graphics solution
  • Applied 100% Solid capacitor design to maximize component reliability
  • ECS Durathon Technology ensure the stability, reliability and performance of system.
  • Introduced ECS Hyper Alloy Choke to offer 150% higher stability than other products
  • ESD Protection prevents computers from electrostatic discharge damage to enhance
        its durability and lifespan
  • ECS EZ charger provides a fast way to charge your smart devices, even if the PC is off
  • Supports ECS EZ BIOS for tweaking BIOS in graphical user interface within a multi
        language environment
  • ECS MIB X - A friendly interface for overclocking, especially for gamer
  • Supports Bluetooth allows electronic devices to communicate wirelessly
  • Supports Wireless LAN allows electronic devices to communicate wirelessly
  • Microsoft Windows 8 Certified
  • Supports NVIDIA® SLI Technology to Intelligently scale graphics performance by
         combining multiple NVIDIA® graphics
  • Supports DirectX® 11 to enhance graphical performance
  • Supports AMD CrossFire™ to expand your system’s graphics capabilities.
  • Special bundled with LucidLogix® Virtu™ MVP for smart graphics switch
  • Supports Sound Blaster Cinema2 technology to deliver cinema-quality picture and sound
        to home environments
  • Supports Intel® Smart Response, Smart Connect and Rapid Start Technology





Specifications:

CPU

º Supports new 2nd & 3rd gen Intel® Core™ family, Pentium, Celeron series processors in LGA1155 socket
º DMI 5.0GT/s
º 100% Solid capacitor design
º Please refer to CPU support list for details

CHIPSET

º Intel® Z77 Express Chipset

GRAPHICS

º Supports DirectX® 11
º *DirectX 11 - Only supported with the 3rd Gen Intel processors for LGA 1155 socket

MEMORY

º Dual-channel DDR3 Memory architecture
º Supports DDR3 1600 non-ECC, Un-buffered SDRAM Memory
º Supports up to 2800(OC)/2600(OC)/2400(OC)/2133(OC)/1800(OC)
º 4 X 240-pin DDR3 DIMM socket
º Support up to 32 GB*
º Note:Please refer to the latest Memory support list for details

EXPANSION SLOT

º 2 X PCI Express X16 Gen 3.0 slot(s)
º 2 X PCI Express X 1 Gen 2.0 slot(s)
º 1 X Mini PCI Express X1 slot(s)( Mini SATA supported)
º 2 X PCI slot(s)
º *When using two VGA cards, the bandwidth is @8 badnwidth; when using one VGA card, the bandwodth is @16.

Storage

º Support by Intel Z77 Express Chipset
    • 2 X Serial ATAIII 6Gb/s
      Located in SATA3_3/ 4 Port
    • 2 X Serial ATAII 3Gb/s
      Located in SATA2_1/ 2 Port
º Support by ASMEDIA ASM1061 Controler
    • 2 X Serial ATAIII 6Gb/s
      Located in SATA3_5/6 Port
    • RAID0, RAID1,RAID5, RAID 10 configuration

Audio

º Compliant with HD audio specification
º Realtek ALC892
‧Realtek ALC892 8-channel High Definition audio CODEC
‧Compatible with Direct Sound 3D™, A3D™, I3DL2
‧Smart multiple streaming operation
‧Intuitive Configuration Panel (Realtek Audio Manager) to enhance user experience
‧7.1+2 channel multi-streaming enables concurrent gaming/VoIP

LAN

º Realtek 8111E Gigabit Fast Ethernet Controller

USB

º Support by Z77 Express Chipset
    • 6 X USB3.0 port(s) up to 5Gb/s
      Back Panel 4 port(s)
      Onboard 2 port(s)
    • 6 X USB2.0 port(s) Up to 480 Mb/s
      Back Panel 4 port(s)
      Onboard 2 port(s)

REAR PANEL I/O

º 1 X Audio port (Line-in,4x Line-out, SPDIF out)
º 1 X RJ-45 port
º 1 X HDMI port(s)
º 1 X DVI-I port(s)
º 1 X D-Sub (VGA) port(s)
º 1 X eSATA 3Gb/s port(s)
º 4 X USB3.0 port(s)
º 4 X USB2.0 port(s)

CONNECTORS & HEADERS

º 1 X 24-pin ATX Power Supply connector
º 1 X 8-pin ATX 12V Power Connector
º 1 X 4-pin CPU_FAN connector
º 1 X 3-pin SYS_FAN connector
º 1 X 3-pin PWR_FAN connector
º 1 X Power on button
º 1 X Reset button
º 1 X Front Panel switch/LED header
º 1 X Front panel audio header
º 1 X Onboard Buzzer
º 1 X USB 3.0 header
    • Support additional 2 USB ports
º 1 X USB 2.0 header
    • Support additional 2 USB ports
º Support EZ charger (gray color)
º 4 X SATA III 6Gb/s connector(s)
º 2 X SATA II 3Gb/s connector(s)
º 1 X CLR_CMOS header
º 1 X Serial port header (COM)
º 1 X Debug LED

SYSTEM BIOS

º AMI BIOS with 64 MB SPI Flash ROM
º Supports M.I.B X Utility
º ACPI & DMI
º F7 hot key for boot up devices option
º Over-Clocking
º Dual Display
º Support GUI UEFI BIOS
º Plug and Play, STR (S3) / STD (S4) , Hardware monitor, Multi Boot
º Multi-Language BIOS
º Audio, LAN, can be disabled in BIOS

FORM FACTOR

º ATX Form Factor
º 305 mm(W) X 244mm(H)

OS Support

º Windows 7 32-bit
º Windows 7 64-bit
º Windows 8 32-bit
º Windows 8 64-bit

Certifications

º CE/FCC Certification
º ErP/EuP Certification
º WHQL Certification
º WHCK Certification
