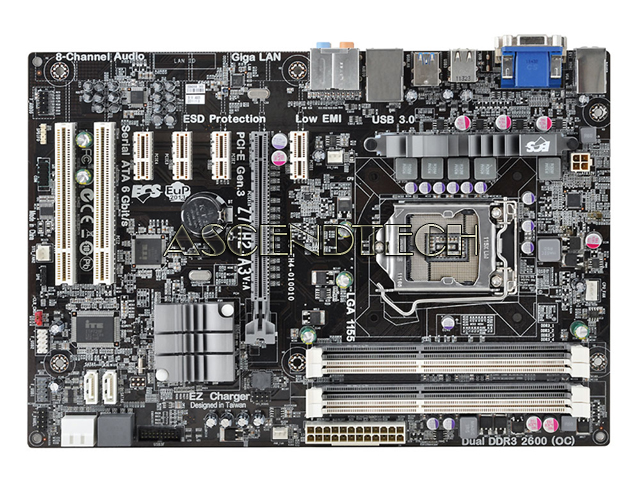

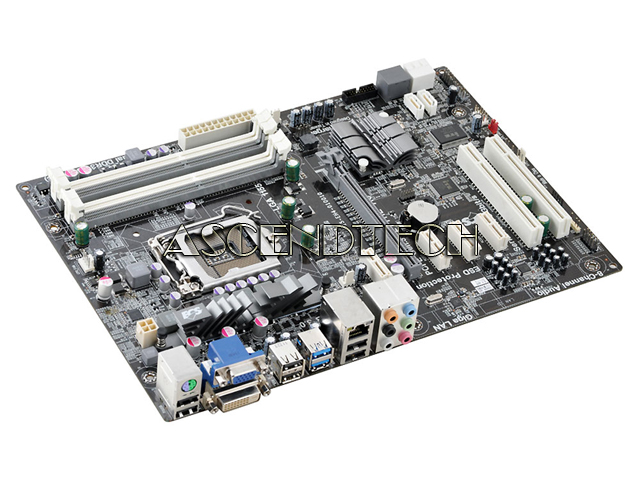

ECS Z77H2-A3 V1.2 Motherboard No I/O
Description
ECS Z77H2-A3 V1.2 Intel Chipset Z77 Socket LGA1155 DDR3 DVI VGA SATA 6GB/s ATX Desktop Motherboard.
Additional Specifications:
Unique Feature
Supports Intel K Series unlock CPU
Applied Solid Capacitor for CPU VRM to ensure a longer lifespan for system
ECS Durathon Technology ensure the stability, reliability and performance of system.
(Triple Density PCB; Extreme Temp Resistance; 1.5K Marathon Test; Superior Solid CAPs)
ESD Protection prevents computers from electrostatic discharge damage to enhance its
durability and lifespan
ECS EZ charger provides a fast way to charge your smart devices, even if the PC is off
Supports ECS EZ BIOS for tweaking BIOS in graphical user interface within a multi
language environment
ECS MIB III - A friendly interface for overclocking
Microsoft Windows 8 Certified
Intel 22nm 3rd generation Multi-Core CPU support
Intel VRD 12.5 Ready
Supports DirectX 11 to enhance graphical performance
Supports Intel HD Graphics, InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider
Supports Intel Smart Response, Smart Connect and Rapid Start Technology
ECS Intelligent EZ Utility: eBLU, eDLU, eOC, eSF
BIOS
AMI BIOS with 64 MB SPI Flash ROM
ACPI & DMI
F7 hot key for boot up devices option
Over-Clocking
Plug and Play, STR (S3) / STD (S4) , Hardware monitor, Multi Boot
Multi-Language BIOS
Audio, LAN, can be disabled in BIOS
Supports PgUp clear CMOS Hotkey
Graphics
Supports Intel HD Graphics, InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider
Supports DirectX 11
DirectX 11 - Only supported with the 3rd Gen Intel processors for LGA 1155 socket
Supports OpenGL 3.1(Intel 3rd gen CPU)
Supports OpenCL 1.1(Intel 3rd gen CPU)
Certifications 2600 (SNB) 3.40GHz 8MB N/A D2 95W 2600K (SNB) 3.40GHz 8MB N/A D2 95W 2600S (SNB) 2.80GHz 8MB N/A D2 65W 2700K (SNB) 3.50GHz 8MB N/A D2 95W 3770 (IVB) 3.40GHz 6MB N/A E0 77W 3770K (IVB) 3.50GHz 8MB N/A E0 77W 3770K (IVB) 3.50GHz 8MB N/A E1 77W 3770S (IVB) 3.10GHz 6MB N/A E0 65W 2300 (SNB) 2.80GHz 6MB N/A D2 95W 2310 (SNB) 2.90GHz 6MB N/A Q0 65W 2320 (SNB) 3.00GHz 6MB N/A D2 95W 2380P (SNB) 3.10GHz 6MB N/A D2 95W 2390T (SNB) 2.70GHz 6MB N/A Q0 35W 2400 (SNB) 3.10GHz 6MB N/A D2 95W 2400S (SNB) 2.50GHz 6MB N/A D2 65W 2405S (SNB) 2.50GHz 6MB N/A D2 65W 2450P (SNB) 3.20GHz 6MB N/A D2 95W 2500 (SNB) 3.30GHz 6MB N/A D2 95W 2500K (SNB) 3.30GHz 6MB N/A D2 95W 2500S (SNB) 2.70GHz 6MB N/A D2 65W 2500T (SNB) 2.30GHz 6MB N/A D2 45W 3330 (IVB) 3.00GHz 6MB N/A E0 77W 3330 (IVB) 3.00GHz 6MB N/A E1 77W 3330S (IVB) 2.70GHz 6MB N/A E0 65W 3330S (IVB) 2.70GHz 6MB N/A E1 65W 3450 (IVB) 3.10GHz 6MB N/A E0 77W 3450 (IVB) 3.10GHz 6MB N/A E1 77W 3450S (IVB) 2.80GHz 6MB N/A E0 65W 3470 (IVB) 3.20GHz 6MB 04/24/2012 N0 77W 3470S (IVB) 2.90GHz 6MB 04/24/2012 N0 65W 3470T (IVB) 2.90GHz 3MB 03/28/2012 L1 35W 3475S (IVB) 2.90GHz 6MB N/A E0 65W 3550 (IVB) 3.30GHz 6MB N/A E0 77W 3550 (IVB) 3.30GHz 6MB N/A E1 77W 3550S (IVB) 3.00GHz 6MB N/A E0 65W 3550S (IVB) 3.00GHz 6MB N/A E1 65W 3570 (IVB) 3.40GHz 6MB 04/24/2012 N0 77W 3570K (IVB) 3.40GHz 6MB N/A E0 77W 3570K (IVB) 3.40GHz 6MB N/A E1 77W 3570S (IVB) 3.10GHz 6MB 04/24/2012 N0 65W 3570T (IVB) 2.30GHz 6MB N/A E0 45W 2100 (SNB) 3.10GHz 3MB N/A Q0 65W 2100T (SNB) 2.50GHz 3MB N/A Q0 35W 2105 (SNB) 3.10GHz 3MB N/A D2 65W 2120 (SNB) 3.30GHz 3MB N/A Q0 65W 2120T (SNB) 2.60GHz 3MB N/A D2 35W 2125 (SNB) 3.30GHz 3MB N/A Q0 65W 2130 (SNB) 3.40GHz 3MB N/A Q0 65W 3210 (IVB) 3.20GHz 3MB 41334 P0 55W 3220 (IVB) 3.30GHz 3MB N/A L1 55W 3220T (IVB) 2.80GHz 3MB 03/28/2012 L1 35W 3225 (IVB) 3.30GHz 3MB N/A L1 55W 3240 (IVB) 3.40GHz 3MB N/A L1 55W 3240T (IVB) 2.90GHz 3MB 03/28/2012 L1 35W 3245 (IVB) 3.40GHz 3MB 05/28/2013 L1 55W 3250 (IVB) 3.00GHz 3MB 05/28/2013 P0 55W 3250T (IVB) 3.00GHz 3MB 05/28/2013 P0 35W G2010 (IVB) 2.80GHz 3MB 41334 P0 55W G2020 (IVB) 2.90GHz 3MB 41334 P0 55W G2020T (IVB) 2.50GHz 3MB 41334 P0 35W G2030 (IVB) 3.00GHz 3MB 05/28/2013 P0 55W G2030T (IVB) 2.60GHz 3MB 05/28/2013 P0 35W G2120T (IVB) 2.70GHz 3MB 05/28/2013 P0 35W G2130 (IVB) 3.20GHz 3MB 41334 P0 55W G2140 (IVB) 3.30GHz 3MB 05/28/2013 P0 55W G620 (SNB) 2.60GHz 3MB N/A Q0 65W G620T (SNB) 2.20GHz 3MB N/A Q0 35W G630 (SNB) 2.70GHz 3MB N/A Q0 65W G630T (SNB) 2.30GHz 3MB N/A Q0 35W G640 (SNB) 2.80GHz 3MB N/A D2 65W G640T (SNB) 2.40GHz 3MB N/A D2 35W G840 (SNB) 2.80GHz 3MB N/A Q0 65W G850 (SNB) 2.90GHz 3MB N/A Q0 65W G860 (SNB) 3.00GHz 3MB N/A Q0 65W G860T (SNB) 2.60GHz 3MB N/A D2 35W G870 (SNB) 3.10GHz 3MB N/A D2 65W G1610 (IVB) 2.60GHz 2MB 41334 P0 55W G1610T (IVB) 2.30GHz 2MB 41334 P0 35W G1620 (IVB) 2.70GHz 2MB 41334 P0 55W G440 (SNB) 1.60GHz 1MB N/A Q0 35W G460 (SNB) 1.80GHz 1.5MB N/A Q0 35W G470 (SNB) 2.00GHz 1.5MB 05/28/2013 Q0 35W G530 (SNB) 2.40GHz 2MB N/A D2 65W G530T (SNB) 2.00GHz 2MB N/A Q0 35W G540 (SNB) 2.50GHz 2MB N/A Q0 65W G540T (SNB) 2.10GHz 2MB N/A D2 35W G550 (SNB) 2.60GHz 2MB N/A D2 65W G550T 2.20GHz 2MB 41032 D2 35W 3220T (IVB) 2.80GHz 3MB 03/28/2012 L1 35W 3240T (IVB) 2.90GHz 3MB 03/28/2012 L1 35W 3470T (IVB) 2.90GHz 3MB 03/28/2012 L1 35W
CE/FCC Certification
ErP/EuP Certification
WHQL Certification
WHCK Certification
CPU SupportSocket LGA1155 Vendor CPU Model CPU Frequency L3 Cache BIOS Family Stepping Wattage Intel Intel Core i7 Intel Intel Core i7 Intel Intel Core i7 Intel Intel Core i7 Intel Intel Core i7 Intel Intel Core i7 Intel Intel Core i7 Intel Intel Core i7 Intel Intel Core i5 Intel Intel Core i5 Intel Intel Core i5 Intel Intel Core i5 Intel Intel Core i5 Intel Intel Core i5 Intel Intel Core i5 Intel Intel Core i5 Intel Intel Core i5 Intel Intel Core i5 Intel Intel Core i5 Intel Intel Core i5 Intel Intel Core i5 Intel Intel Core i5 Intel Intel Core i5 Intel Intel Core i5 Intel Intel Core i5 Intel Intel Core i5 Intel Intel Core i5 Intel Intel Core i5 Intel Intel Core i5 Intel Intel Core i5 Intel Intel Core i5 Intel Intel Core i5 Intel Intel Core i5 Intel Intel Core i5 Intel Intel Core i5 Intel Intel Core i5 Intel Intel Core i5 Intel Intel Core i5 Intel Intel Core i5 Intel Intel Core i5 Intel Intel Core i5 Intel Intel Core i3 Intel Intel Core i3 Intel Intel Core i3 Intel Intel Core i3 Intel Intel Core i3 Intel Intel Core i3 Intel Intel Core i3 Intel Intel Core i3 Intel Intel Core i3 Intel Intel Core i3 Intel Intel Core i3 Intel Intel Core i3 Intel Intel Core i3 Intel Intel Core i3 Intel Intel Core i3 Intel Intel Core i3 Intel Intel Pentium Intel Intel Pentium Intel Intel Pentium Intel Intel Pentium Intel Intel Pentium Intel Intel Pentium Intel Intel Pentium Intel Intel Pentium Intel Intel Pentium Intel Intel Pentium Intel Intel Pentium Intel Intel Pentium Intel Intel Pentium Intel Intel Pentium Intel Intel Pentium Intel Intel Pentium Intel Intel Pentium Intel Intel Pentium Intel Intel Pentium Intel Intel Celeron Intel Intel Celeron Intel Intel Celeron Intel Intel Celeron Intel Intel Celeron Intel Intel Celeron Intel Intel Celeron Intel Intel Celeron Intel Intel Celeron Intel Intel Celeron Intel Intel Celeron Intel Intel Celeron Intel Core i3 Intel Core i3 Intel Core i5
