ECS Z87H3-A4 INTEL Z87 DDR3 USB 3.0 HDMI

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.

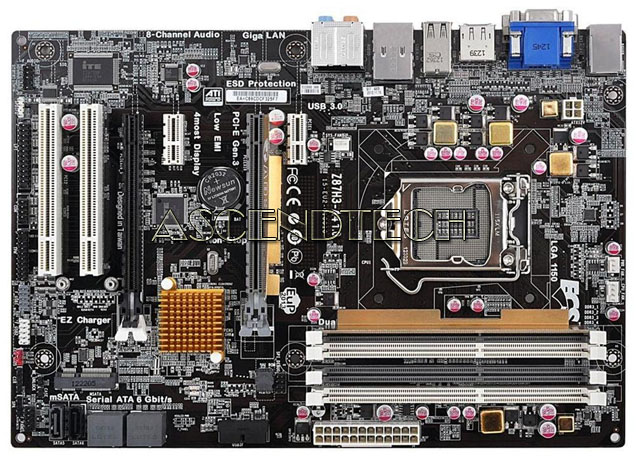

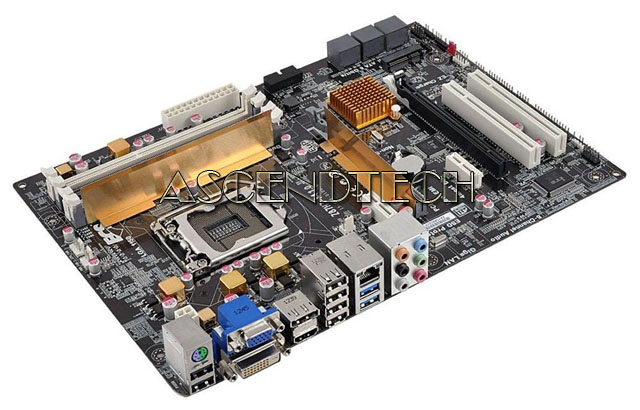

  Enlarge
Ecs Z87h3-A4 Intel Z87 Ddr3 Usb 3.0 Hdmi
Ecs Z87h3-A4 Intel Z87 Ddr3 Usb 3.0 Hdmi
Ecs Z87h3-A4 Intel Z87 Ddr3 Usb 3.0 Hdmi
*Note this image is for descriptional purposes.
Actual product may vary.
Item CodeMBECSZ87A410115
BrandEcs - Elitegroup
ModelLGA 1150 DDR3 4TH GEN I7
CategoryIntel Lga1150 Motherboard

Description

ECS Z87H3-A4 V1.0A Intel Z87 Socket LGA1150 DDR3 3000+ Serial ATAIII 6Gb/s ATX Motherboard.





Features:

2-Way multi-graphics solution
Supports 3 independent displays
Supports Intel® K Series unlock CPU
Applied 100% Solid capacitor design to maximize component reliability
ECS Durathon Technology ensure the stability, reliability and performance of system.
Introduced ECS Hyper Alloy Choke to offer 150% higher stability than other products
ESD Protection prevents computers from electrostatic discharge damage to enhance
its durability and lifespan
ECS EZ charger provides a fast way to charge your smart devices, even if the PC is off
Supports ECS EZ BIOS for tweaking BIOS in graphical user interface within a multi
language environment
ECS MIB III - A friendly interface for overclocking
Microsoft Windows 8 Certified
Intel ® VRD 12.5 Ready
Supports DirectX® 11.1 to enhance graphical performance
Supports Intel® HD Graphics, InTru™ 3D, Quick Sync Video, Clear Video HD Technology,
Insiderâ„¢
Supports Sound Blaster Cinema2 technology to deliver cinema-quality picture and sound
to home environments
Supports Intel® Smart Response, Smart Connect and Rapid Start Technology
Free Bundle: CyberLink Media Suite
ECS Intelligent EZ Utility : eBLU, eDLU, eOC, eSF



Specifications:


CPU

º Supports New 4th & 4th gen Intel® Coreâ„¢ family, Pentium, Celeron series processors in LGA1150 socket
º DMI 5.0GT/s
º 3 Phase Thermal Design Power
º VRD 12.5
º 100% Solid capacitor design
º Supports Intel® Turbo Boost 2.0 Technology
º Supports Intel® Hyper-Threading Technology
º Intel® K Series Unlock CPU Support
º Please refer to CPU support list for details

CHIPSET

º Intel® Z87 Express Chipset
º Intel® Smart Response Technology, Intel® Smart Connect Technology & Intel® Rapid Start Technolog
º Supports Intel® Rapid Start technology
º Supports Intel® Smart Connect technology
º Supports Intel® Smart Response technology
º Supports Intel® Identity Protection Technology
º Supports dual stream HDMI & DP audio

GRAPHICS

º Supports DirectX® 11 .1
º Supports Intel® HD Graphics, InTruâ„¢ 3D, Quick Sync Video, Clear Video HD Technology,
    Insiderâ„¢
º Supports HDMI 1.4a & Premium Audio
º Integrated DP with up to 2560x1600 resolution
º Supports Full HD 1080P Blu-ray / HD-DVD Playback

MEMORY

º Dual-channelDDR3 Memory architecture
º Supports DDR3 3000+ (OC)/ 2800 (OC) / 2667 (OC) / 2400 (OC) / 2133(OC) / 1800(OC) / 1600 non-ECC, Un-buffered SDRAM Memory
º Supports up to 3000 (OC)
º 4 X 240-pin DDR3 DIMM socket
º Support up to 32 GB*
º * Due to the DRAM maximum size is 16 GB at present
    â€¢ The memory maximum size we have tested is 16 GB
º * Due to the operation system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation

EXPANSION SLOT

º 1 X PCI Express X16 Gen 3.0 slot(s)
º 1 X PCI Express X16 Gen 2.0 slot(s)
º 2 X PCI Express X 1 Gen 2.0 slot(s)
º Supports AMD CrossFireâ„¢ Technology
º 2 X PCI slot(s)
º *The second PCIE X16 only support bandwidth X4

Storage

º Support by Z87 Express Chipset
    â€¢ 6 X Serial ATAIII 6Gb/s
    â€¢ RAID0, RAID1,RAID5, RAID 10 configuration
º Supports Intel® Rapid Storage Technology

Audio

º 8-Channel HD audio CODEC
º Realtek ALC892 8-channel High Definition audio CODEC
º Realtek ALC892
‧Realtek ALC892 8-channel High Definition audio CODEC
‧Compatible with Direct Sound 3Dâ„¢, A3Dâ„¢, I3DL2
‧Smart multiple streaming operation
‧Intuitive Configuration Panel (Realtek Audio Manager) to enhance user experience
‧7.1+2 channel multi-streaming enables concurrent gaming/VoIP

LAN

º Realtek 8111G Gigabit Fast Ethernet Controller
º Wake-On-LAN

USB

º Support by Z87 Express Chipset
    â€¢ 4 X USB3.0 port(s) up to 5Gb/s
      Back Panel 2 port(s)
      Onboard 2 port(s)
    â€¢ 10 X USB2.0 port(s) Up to 480 Mb/s
      Back Panel 6 port(s)
      Onboard 4 port(s)
º ECS EZ Charger (Gray USB header)

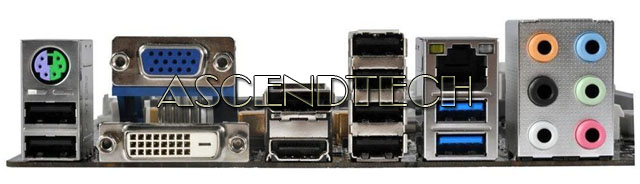

REAR PANEL I/O

º 1 X PS/2 combo connector
º 1 X Audio port (Line-in,4x Line-out, SPDIF out)
º 1 X RJ-45 port
º 1 X HDMI port(s)
º 1 X DVI-I port(s)
º 1 X D-Sub (VGA) port(s)
º 1 X Display port
º 2 X USB3.0 port(s)
º 6 X USB2.0 port(s)

CONNECTORS & HEADERS

º 1 X 24-pin ATX Power Supply connector
º 1 X 4-pin 12V Power connector
º 1 X 4-pin CPU_FAN connector with smart fan
º 1 X 3-pin SYS_FAN connector with smart fan
º 1 X 3-pin NB_FAN connector
º 1 X 3-pin PWR_FAN connector
º 1 X Speaker header
º 1 X USB 3.0 header
    â€¢ Support additional 2 USB ports
º 2 X USB 2.0 header
    â€¢ Support additional 4 USB ports
º Support EZ charger (gray color)
º 1 X S/PDIF out header
º 6 X SATA III 6Gb/s connector(s)
º 1 X CLR_CMOS header
º 1 X CIR header
º 1 X Serial port header (COM)
º 1 X Parallel port header (LPT)
º 1 X mSATA connector
º 1 X TPM header
º 1 X Chassis intrusion header

SYSTEM BIOS

º AMI BIOS with 64 MB SPI Flash ROM
º Supports M.I.B III Utility
º Over-Clocking
º Triple Display
º Support ECS EZ BIOS
º Plug and Play, STR (S3) / STD (S4) , Hardware monitor, Multi Boot
º Multi-Language BIOS
º Audio, LAN, can be disabled in BIOS
º PCI interrupt selection
º Supports PgUp clear CMOS Hotkey
º CPU FSB adjustment(increase of 1MHz)
º Dual-Monitor function

FORM FACTOR

º ATX Form Factor
º 305mm x 210mm

OS Support

º Windows 7 32-bit
º Windows 7 64-bit
º Windows 8 64-bit

Certifications

º CE/FCC Certification
º ErP/EuP Certification
º WHQL Certification
º WHCK Certification

Bundled Software

º ECS Intelligent EZ Utility : eBLU, eDLU, eOC, eSF
º Free Bundle: CyberLink Media Suite
º Creative Sound Blaster Cinema2 software



CPU Socket List:

* means validated by ECS at time of writing. Changes to component or CPU may produce a different outcome. The result shown is for reference only and is subject to change w/o notification.

Socket

Family

Processor

Wattage

Frequency

Cache

Stepping

Since BIOS

LGA1150

Intel Coreâ„¢ i7

4690K

88W

3.50GHz

6MB

C0

05/29/2014

LGA1150

Intel Coreâ„¢ i7

4765T

35W

2.00GHz

8MB

C0

04/19/2013

LGA1150

Intel Coreâ„¢ i7

4770K

84W

3.50GHz

8MB

C0

2/1/2013

LGA1150

Intel Coreâ„¢ i7

4770S

65W

3.10GHz

8MB

C0

2/1/2013

LGA1150

Intel Coreâ„¢ i7

4771

84W

3.50GHz

8MB

C0

04/29/2013

LGA1150

Intel Coreâ„¢ i7

4785T

35W

2.20GHz

8MB

C0

05/06/2014

LGA1150

Intel Coreâ„¢ i7

4790

84W

3.60GHz

8MB

C0

05/06/2014

LGA1150

Intel Coreâ„¢ i7

4790K

88W

4.00GHz

8MB

C0

05/29/2014

LGA1150

Intel Coreâ„¢ i7

4790S

65W

3.20GHz

8MB

C0

05/06/2014

LGA1150

Intel Coreâ„¢ i7

4790T

45W

2.70GHz

8MB

C0

05/06/2014

LGA1150

Intel Coreâ„¢ i5

4430S

65W

2.70GHz

6MB

C0

2/1/2013

LGA1150

Intel Coreâ„¢ i5

4440

84W

3.10GHz

6MB

C0

04/29/2013

LGA1150

Intel Coreâ„¢ i5

4440S

65W

2.80GHz

6MB

C0

04/29/2013

LGA1150

Intel Coreâ„¢ i5

4460

84W

3.20GHz

6MB

C0

05/06/2014

LGA1150

Intel Coreâ„¢ i5

4460S

65W

2.90GHz

6MB

C0

05/06/2014

LGA1150

Intel Coreâ„¢ i5

4460T

35W

1.90GHz

6MB

C0

05/06/2014

LGA1150

Intel Coreâ„¢ i5

4570T

35W

2.90GHz

4MB

C0

04/19/2013

LGA1150

Intel Coreâ„¢ i5

4590

84W

3.30GHz

6MB

C0

05/06/2014

LGA1150

Intel Coreâ„¢ i5

4590S

65W

3.00GHz

6MB

C0

05/06/2014

LGA1150

Intel Coreâ„¢ i5

4590T

35W

2.00GHz

6MB

C0

05/06/2014

LGA1150

Intel Coreâ„¢ i5

4670T

45W

2.30GHz

6MB

C0

04/19/2013

LGA1150

Intel Coreâ„¢ i5

4690

84W

3.50GHz

6MB

C0

05/06/2014

LGA1150

Intel Coreâ„¢ i5

4690S

65W

3.20GHz

6MB

C0

05/06/2014

LGA1150

Intel Coreâ„¢ i3

4130

54W

3.40GHz

3MB

C0

04/29/2013

LGA1150

Intel Coreâ„¢ i3

4130T

35W

2.90GHz

3MB

C0

04/29/2013

LGA1150

Intel Coreâ„¢ i3

4150

54W

3.50GHz

3MB

C0

05/06/2014

LGA1150

Intel Coreâ„¢ i3

4150T

35W

3.00GHz

3MB

C0

05/06/2014

LGA1150

Intel Coreâ„¢ i3

4160

54W

3.60GHz

3MB

C0

05/29/2014

LGA1150

Intel Coreâ„¢ i3

4160T

35W

3.10GHz

3MB

C0

05/29/2014

LGA1150

Intel Coreâ„¢ i3

4330

54W

3.50GHz

4MB

C0

04/29/2013

LGA1150

Intel Coreâ„¢ i3

4330T

35W

3.00GHz

4MB

C0

04/29/2013

LGA1150

Intel Coreâ„¢ i3

4340

54W

3.60GHz

4MB

C0

04/29/2013

LGA1150

Intel Coreâ„¢ i3

4350

54W

3.60GHz

4MB

C0

05/06/2014

LGA1150

Intel Coreâ„¢ i3

4350T

35W

3.10GHz

4MB

C0

05/06/2014

LGA1150

Intel Coreâ„¢ i3

4360

54W

3.70GHz

4MB

C0

05/06/2014

LGA1150

Intel Coreâ„¢ i3

4360T

35W

3.20GHz

4MB

C0

05/29/2014

LGA1150

Intel Coreâ„¢ i3

4370

54W

3.80GHz

4MB

C0

05/29/2014

LGA1150

Intel Pentium

G3220

53W

3.00GHz

3MB

C0

05/06/2014

LGA1150

Intel Pentium

G3220T

35W

2.60GHz

3MB

C0

04/29/2013

LGA1150

Intel Pentium

G3240

53W

3.10GHz

3MB

C0

05/06/2014

LGA1150

Intel Pentium

G3240T

35W

2.70GHz

3MB

C0

05/06/2014

LGA1150

Intel Pentium

G3250

53W

3.20GHz

3MB

C0

05/29/2014

LGA1150

Intel Pentium

G3250T

35W

2.80GHz

3MB

C0

05/29/2014

LGA1150

Intel Pentium

G3258

53W

3.20GHz

3MB

C0

05/29/2014

LGA1150

Intel Pentium

G3420

53W

3.20GHz

3MB

C0

04/29/2013

LGA1150

Intel Pentium

G3420T

35W

2.70GHz

3MB

C0

04/29/2013

LGA1150

Intel Pentium

G3430

53W

3.30GHz

3MB

C0

04/29/2013

LGA1150

Intel Pentium

G3440

53W

3.30GHz

3MB

C0

05/06/2014

LGA1150

Intel Pentium

G3440T

35W

2.80GHz

3MB

C0

05/06/2014

LGA1150

Intel Pentium

G3450

53W

3.40GHz

3MB

C0

05/06/2014

LGA1150

Intel Pentium

G3450T

35W

2.90GHz

3MB

C0

05/29/2014

LGA1150

Intel Pentium

G3460

53W

3.50GHz

3MB

C0

05/29/2014

LGA1150

Intel Celeron

G1820

65W

2.70GHz

2MB

C0

12/17/2013

LGA1150

Intel Celeron

G1820T

35W

2.40GHz

2MB

C0

12/17/2013

LGA1150

Intel Celeron

G1830

65W

2.80GHz

2MB

C0

12/17/2013

LGA1150

Intel Celeron

G1840

53W

2.80GHz

2MB

C0

05/06/2014

LGA1150

Intel Celeron

G1840T

35W

2.50GHz

2MB

C0

05/06/2014

LGA1150

Intel Celeron

G1850

53W

2.90GHz

2MB

C0

05/06/2014
