ECS Z87H3-M V1.0 Micro ATX Motherboard

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.
Ecs Z87h3-M V1.0 Micro Atx Motherboard
  Enlarge

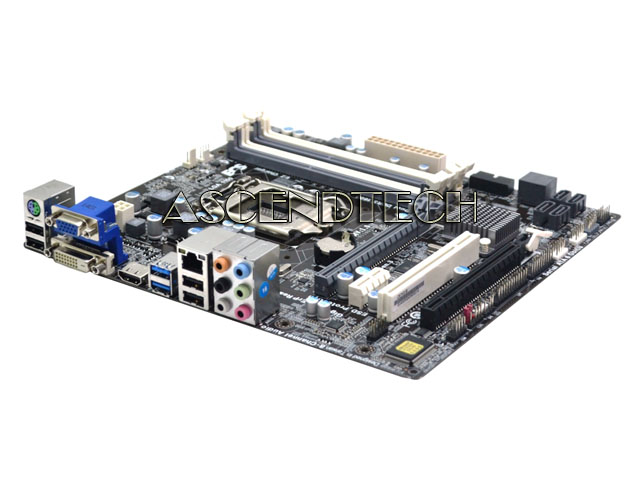

Ecs Z87h3-M V1.0 Micro Atx Motherboard

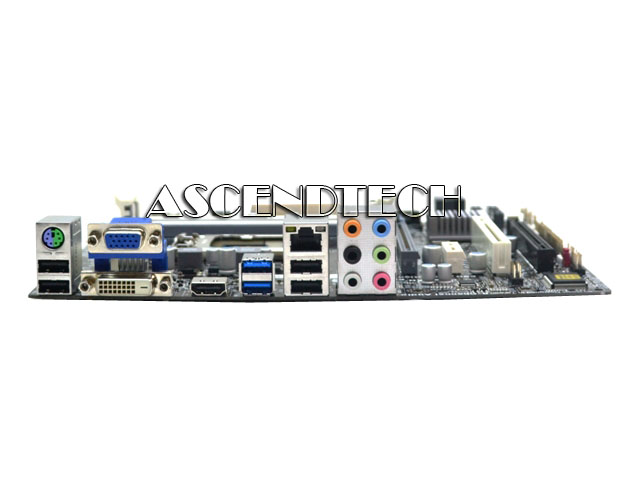

Ecs Z87h3-M V1.0 Micro Atx Motherboard

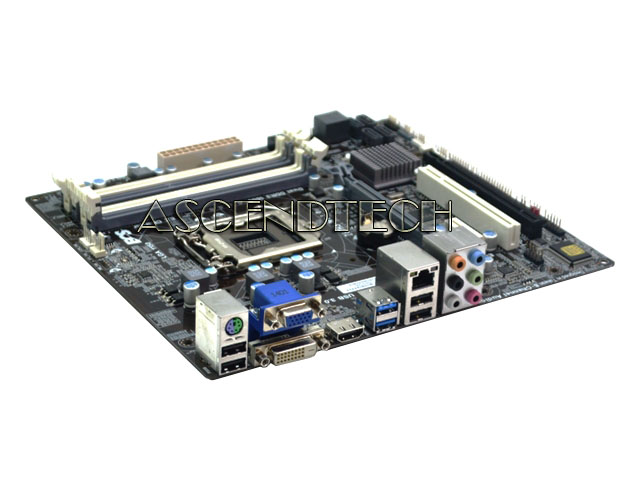

Ecs Z87h3-M V1.0 Micro Atx Motherboard
*Note this image is for descriptional purposes.
Actual product may vary.
Item Code MBECSZ87H3MV10M
Brand Ecs - Elitegroup
Model Z87H3-M V1.0
Category Intel Lga1150 Motherboard

Description

ECS Z87H3-M V1.0 Intel Z87 Express Socket LGA1150 DDR3 1600 Micro ATX Motherboard.



Features:

2-Way multi-graphics solution
Supports 3 independent displays
Supports Intel® K Series unlock CPU
Applied 100% Solid capacitor design to maximize component reliability
ECS Durathon Technology ensure the stability, reliability and performance of system.
ESD Protection prevents computers from electrostatic discharge damage to enhance
its durability and lifespan
Supports ECS EZ BIOS for tweaking BIOS in graphical user interface within a multi
language environment
ECS MIB III - A friendly interface for overclocking
Microsoft Windows 8 Certified
Intel® 22nm 4th generation Multi-Core CPU support
Intel ® VRD 12.5 Ready
Supports DirectX® 11.1 to enhance graphical performance
Supports AMD CrossFire™ to expand your system’s graphics capabilities.
Supports Intel® HD Graphics, InTru™ 3D, Quick Sync Video, Clear Video HD Technology,
Insider™
Supports HDMI 1.4a Technology ( resolution up to 1920X1200 ) and HDCP function
Supports Intel® Smart Response, Smart Connect and Rapid Start Technology
ECS Intelligent EZ Utility : eBLU, eDLU, eSF
Free Bundle: CyberLink Media Suite



Specifications:


CPU

º Supports New 4th & 4th gen Intel® Core™ family, Pentium, Celeron series processors in LGA1150 socket
º DMI 5.0GT/s
º 3 Phase Thermal Design Power
º VRD 12.5
º 100% Solid capacitor design
º Supports Intel® Turbo Boost 2.0 Technology
º Supports Intel® Hyper-Threading Technology
º Intel® K Series Unlock CPU Support
º Please refer to CPU support list for details

CHIPSET

º Intel® Z87 Express Chipset
º Intel® Smart Response Technology, Intel® Smart Connect Technology & Intel® Rapid Start Technolog
º Supports Intel® Identity Protection Technology

GRAPHICS

º Supports DirectX® 11 .1
º Supports Intel® HD Graphics, InTru™ 3D, Quick Sync Video, Clear Video HD Technology,
    Insider™
º Supports HDMI 1.4a & Premium Audio
º Supports Full HD 1080P Blu-ray / HD-DVD Playback

MEMORY

º Dual-channel DDR3 Memory architecture
º Supports DDR3 1600 non-ECC, Un-buffered SDRAM Memory
º 4 X 240-pin DDR3 DIMM socket
º Support up to 32 GB*
º * Due to the operation system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation
º Note: DDR3_1 with DDR3_3 are the same channel, DDR3_2 with DDR3_4 are the same channel by Intel® Specification

EXPANSION SLOT

º 1 X PCI Express X16 Gen 3.0 slot(s)
º 1 X PCI Express X16 Gen 2.0 slot(s)
º 1 X PCI Express X 1 Gen 2.0 slot(s)
º Supports AMD CrossFire™ Technology
º 1 X PCI slot(s)
º *The second PCIE X16 only support bandwidth X4

Storage

º Support by Z87 Express Chipset
    • 6 X Serial ATAIII 6Gb/s
      Located in SATA1, SATA2, SATA3, SATA4, SATA5, SATA6 Port
    • RAID0, RAID1,RAID5, RAID 10 configuration
º Supports Intel® Rapid Storage Technology

Audio

º 8-Channel HD audio CODEC
º Realtek ALC892
‧Realtek ALC892 8-channel High Definition audio CODEC
‧Compatible with Direct Sound 3D™, A3D™, I3DL2
‧Smart multiple streaming operation
‧Intuitive Configuration Panel (Realtek Audio Manager) to enhance user experience
‧7.1+2 channel multi-streaming enables concurrent gaming/VoIP
º BluRay DVD/HD DVD support

LAN

º Realtek RTL8111G Gigabit Fast Ethernet Controller
º Wake-On-LAN

USB

º Support by Z87 Express Chipset
    • 4 X USB3.0 port(s) up to 5Gb/s
      Back Panel 2 port(s)
      Onboard 2 port(s)
    • 10 X USB2.0 port(s) Up to 480 Mb/s
      Back Panel 4 port(s)
      Onboard 6 port(s)
º ECS EZ Charger (Gray USB header)

REAR PANEL I/O

º 1 X PS/2 Keyboard & PS/2 mouse connectors
º 1 X Audio port (Line-in,4x Line-out, Mic in)
º 1 X RJ-45 port
º 1 X HDMI port(s)
º 1 X DVI-I port(s)
º 1 X D-Sub (VGA) port(s)
º 2 X USB3.0 port(s)
º 4 X USB2.0 port(s)

CONNECTORS & HEADERS

º 1 X 24-pin ATX Power Supply connector
º 1 X 4-pin 12V Power connector
º 1 X 4-pin CPU_FAN connector with smart fan
º 1 X 3-pin SYS_FAN connector with smart fan
º 1 X Front Panel switch/LED header
º 1 X Front panel audio header
º 1 X USB 3.0 header
    • Support additional 2 USB ports
º 3 X USB 2.0 header
    • Support additional 6 USB ports
º Support EZ charger (gray color)
º 6 X SATA III 6Gb/s connector(s)
º 1 X CLR_CMOS header
º 1 X CIR header
º 1 X Serial port header (COM)
º 1 X Parallel port header (LPT)
º 1 X TPM header
º 1 X Chassis intrusion header

SYSTEM BIOS

º AMI BIOS with 64 MB SPI Flash ROM
º Supports M.I.B III Utility
º F7 hot key for boot up devices option
º Triple Display
º Support ECS EZ BIOS
º Plug and Play, STR (S3) / STD (S4) , Hardware monitor, Multi Boot
º Multi-Language BIOS
º Audio, LAN, can be disabled in BIOS
º Dual-Monitor function

FORM FACTOR

º mATX Form Factor
º 244mm(W) X 220 mm(H)

OS Support

º Windows 7 32-bit
º Windows 7 64-bit
º Windows 8 64-bit

Certifications

º CE/FCC Certification
º ErP/EuP Certification
º WHCK Certification

Bundled Software

º ECS Intelligent EZ Utility : eBLU, eDLU, eSF
º Free Bundle: CyberLink Media Suite





CPU Socket List:

* means validated by ECS at time of writing. Changes to component or CPU may produce a different outcome. The result shown is for reference only and is subject to change w/o notification.

Socket

Family

Processor

Wattage

Frequency

Cache

Stepping

Since BIOS

LGA1150

Intel Core™ i7

4690K

88W

3.50GHz

6MB

C0

05/29/2014

LGA1150

Intel Core™ i7

4785T

35W

2.20GHz

8MB

C0

05/08/2014

LGA1150

Intel Core™ i7

4790

84W

3.60GHz

8MB

C0

05/08/2014

LGA1150

Intel Core™ i7

4790K

88W

4.00GHz

8MB

C0

05/29/2014

LGA1150

Intel Core™ i7

4790S

65W

3.20GHz

8MB

C0

05/08/2014

LGA1150

Intel Core™ i7

4790T

45W

2.70GHz

8MB

C0

05/08/2014

LGA1150

Intel Core™ i5

4460

84W

3.20GHz

6MB

C0

05/08/2014

LGA1150

Intel Core™ i5

4460S

65W

2.90GHz

6MB

C0

05/08/2014

LGA1150

Intel Core™ i5

4460T

35W

1.90GHz

6MB

C0

05/08/2014

LGA1150

Intel Core™ i5

4590

84W

3.30GHz

6MB

C0

05/08/2014

LGA1150

Intel Core™ i5

4590S

65W

3.00GHz

6MB

C0

05/08/2014

LGA1150

Intel Core™ i5

4590T

35W

2.00GHz

6MB

C0

05/08/2014

LGA1150

Intel Core™ i5

4690

84W

3.50GHz

6MB

C0

05/08/2014

LGA1150

Intel Core™ i5

4690S

65W

3.20GHz

6MB

C0

05/08/2014

LGA1150

Intel Core™ i3

4150

54W

3.50GHz

3MB

C0

05/08/2014

LGA1150

Intel Core™ i3

4150T

35W

3.00GHz

3MB

C0

05/08/2014

LGA1150

Intel Core™ i3

4160

54W

3.60GHz

3MB

C0

05/29/2014

LGA1150

Intel Core™ i3

4160T

35W

3.10GHz

3MB

C0

05/29/2014

LGA1150

Intel Core™ i3

4350

54W

3.60GHz

4MB

C0

05/08/2014

LGA1150

Intel Core™ i3

4350T

35W

3.10GHz

4MB

C0

05/08/2014

LGA1150

Intel Core™ i3

4360

54W

3.70GHz

4MB

C0

05/08/2014

LGA1150

Intel Core™ i3

4360T

35W

3.20GHz

4MB

C0

05/29/2014

LGA1150

Intel Core™ i3

4370

54W

3.80GHz

4MB

C0

05/29/2014

LGA1150

Intel Pentium

G3220

53W

3.00GHz

3MB

C0

05/08/2014

LGA1150

Intel Pentium

G3240

53W

3.10GHz

3MB

C0

05/08/2014

LGA1150

Intel Pentium

G3240T

35W

2.70GHz

3MB

C0

05/08/2014

LGA1150

Intel Pentium

G3250

53W

3.20GHz

3MB

C0

05/29/2014

LGA1150

Intel Pentium

G3250T

35W

2.80GHz

3MB

C0

05/29/2014

LGA1150

Intel Pentium

G3258

53W

3.20GHz

3MB

C0

05/29/2014

LGA1150

Intel Pentium

G3440

53W

3.30GHz

3MB

C0

05/08/2014

LGA1150

Intel Pentium

G3440T

35W

2.80GHz

3MB

C0

05/08/2014

LGA1150

Intel Pentium

G3450

53W

3.40GHz

3MB

C0

05/08/2014

LGA1150

Intel Pentium

G3450T

35W

2.90GHz

3MB

C0

05/29/2014

LGA1150

Intel Pentium

G3460

53W

3.50GHz

3MB

C0

05/29/2014

LGA1150

Intel Celeron

G1820

65W

2.70GHz

2MB

C0

12/17/2013

LGA1150

Intel Celeron

G1820T

35W

2.40GHz

2MB

C0

12/17/2013

LGA1150

Intel Celeron

G1830

65W

2.80GHz

2MB

C0

12/17/2013

LGA1150

Intel Celeron

G1840

53W

2.80GHz

2MB

C0

05/08/2014

LGA1150

Intel Celeron

G1840T

35W

2.50GHz

2MB

C0

05/08/2014

LGA1150

Intel Celeron

G1850

53W

2.90GHz

2MB

C0

05/08/2014
