ECS Z97-MACHINE LGA1150 DDR3 Motherboard

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.

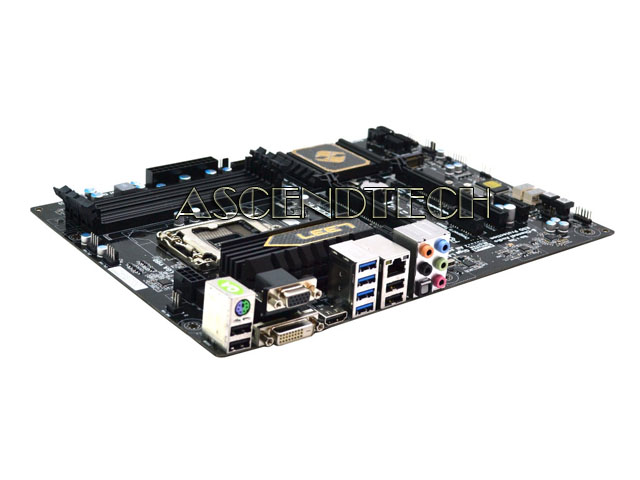

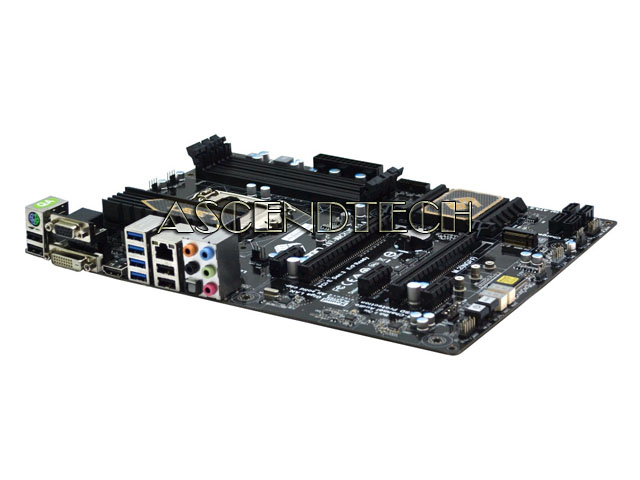

Ecs Z97-Machine Lga1150 Ddr3 Motherboard. Model: Z97-Machine V1.0
  Enlarge
Ecs Z97-Machine Lga1150 Ddr3 Motherboard. Model: Z97-Machine V1.0
Ecs Z97-Machine Lga1150 Ddr3 Motherboard. Model: Z97-Machine V1.0
Ecs Z97-Machine Lga1150 Ddr3 Motherboard. Model: Z97-Machine V1.0
*Note this image is for descriptional purposes.
Actual product may vary.
Item Code MBECSZ97MACHINE
Brand Ecs - Elitegroup
Model Z97-MACHINE V1.0
Category Intel Lga1150 Motherboard

Description

ECS Z97-MACHINE V1.0 Intel Z97 Socket LGA1150 DDR3 3000 ATX Motherboard.




Features:

Supports 3 independent displays
6 Phase Power Design
Supports Intel® K Series unlock CPU
Applied 100% Solid capacitor design to maximize component reliability
ECS Durathon Technology ensure the stability, reliability and performance of system.
ESD Protection prevents computers from electrostatic discharge damage to enhance
its durability and lifespan
ECS EZ charger provides a fast way to charge your smart devices, even if the PC is off
Supports ECS EZ BIOS for tweaking BIOS in graphical user interface within a multi
language environment
ECS MIB X - A friendly interface for overclocking, especially for gamer
Microsoft Windows 8.1 Certified
Intel® 22nm 4th generation Multi-Core CPU support
Intel® 14nm 5th generation Multi-Core CPU support
Supports DirectX® 11.1 to enhance graphical performance
Supports AMD CrossFire™ to expand your system’s graphics capabilities.
Supports Intel® HD Graphics, InTru™ 3D, Quick Sync Video, Clear Video HD Technology,
Insider™
Supports HDMI 1.4a Technology ( resolution up to 1920X1200 ) and HDCP function
Supports Sound Blaster Cinema2 technology to deliver cinema-quality picture and sound
to home environments
Supports Intel® Rapid Start technology
Supports Intel® Smart Response technology
Free Bundle: CyberLink Media Suite





Specifications:


CPU

º Supports New 4th & 4th gen Intel® Core™ family, Pentium, Celeron series processors in LGA1150 socket
º DMI 5.0GT/s
º 6 Phase Thermal Design Power
º VRD 12.5
º 100% Solid capacitor design
º Intel® K Series Unlock CPU Support

CHIPSET

º Intel® Z97 Express Chipset
º Intel® Smart Response Technology, Intel® Smart Connect Technology & Intel® Rapid Start Technolog

GRAPHICS

º Supports DirectX® 11 .1
º Supports Intel® HD Graphics, InTru™ 3D, Quick Sync Video, Clear Video HD Technology,
    Insider™
º Supports HDMI 1.4a & Premium Audio

MEMORY

º  Dual-channelDDR3 Memory architecture
º Supports DDR3 3000 non-ECC, Un-buffered SDRAM Memory
º  4 X 240-pin DDR3 DIMM socket
º Support up to 32 GB*
º Intel® extreme Memory Profile (XMP) 1.3/1.2 Memory Modules

EXPANSION SLOT

º 2 X PCI Express X16 Gen 3.0 slot(s)
º 3 X PCI Express X 1 Gen 2.0slot(s)
º Supports AMD CrossFire™ Technology
º 1 X M.2 slot for SSD
    • For 2242/2260/2280 SSD
º *When using two VGA cards, the bandwidth is @8 badnwidth; when using one VGA card, the bandwodth is @16.

Storage

º Support by Intel® Z97 Express Chipset
    • 4 X Serial ATAIII 6Gb/s
    • RAID0, RAID1,RAID5, RAID 10 configuration
º Supports Intel® Rapid Storage Technology

Audio

º 8-Channel HD audio CODEC
º Realtek ALC1150 8-channel High Definition audio CODEC
º ESS SABRE32 ES9010K2M DAC provides DNR 116dB and THD -106dB listening experience

LAN

º Intel I218-V Gigabit Fast Ethernet Controller
º Wake-On-LAN

USB

º Support by Z97 Express Chipset
    •  6 X USB3.0 port(s) up to 5Gb/s
      Back Panel 4 port(s)
      Onboard 2 port(s)
    • 6 X USB2.0 port(s) Up to 480 Mb/s
      Back Panel 4 port(s)
      Onboard 2 port(s)
º ECS EZ Charger (Gray USB header)

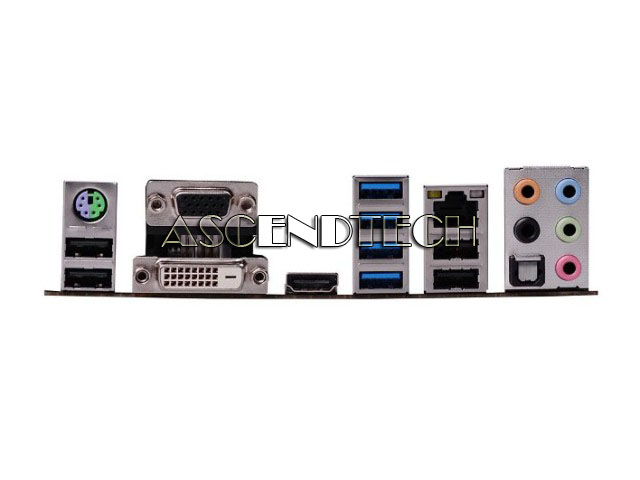

REAR PANEL I/O

º 1 X PS/2 combo connector
º 1 X Audio port (Line-in,4x Line-out, SPDIF out)
º 1 X RJ-45 port
º 1 X HDMI port(s)
º 1 X DVI-D port(s)
º 1 X D-Sub (VGA) port(s)
º 1 X Optical S/PDIF Out port(s)
º 4 X USB3.0 port(s)
º 4 X USB2.0 port(s)

CONNECTORS & HEADERS

º 1 X 24-pin ATX Power Supply connector
º 1 X 8-pin ATX 12V Power Connector
º 2 X 4-pin CPU_FAN connector
º 2 X 4-pin SYS_FAN connector
º 1 X 3-pin SYS_FAN connector with smart fan
º 1 X 3-pin PWR_FAN connector
º 1 X Power on button
º 1 X Reset button
º 1 X Front Panel switch/LED header
º 1 X Front panel audio header
º 1 X Speaker header
º 1 X USB 3.0 header
    • Support additional 2 USB ports
º 1 X USB 2.0 header
    • Support additional 2 USB ports
º Support EZ charger (gray color)
º 1 X S/PDIF out header
º 4 X SATA III 6Gb/s connector(s)
º 1 X CLR_CMOS header
º 1 X Debug LED
º 1 X Chassis intrusion header
º 1 X Voltage measure points

SYSTEM BIOS

º AMI BIOS with 64 MB SPI Flash ROM
º Supports M.I.B X Utility
º Supports ACPI 5.0 & DMI
º F7 hot key for boot up devices option
º Over-Clocking
º Graphic OC Support
º Triple Display
º Support ECS EZ BIOS
º Plug and Play, STR (S3) / STD (S4) , Hardware monitor, Multi Boot
º Multi-Language BIOS
º Audio, LAN, can be disabled in BIOS
º Supports PgUp clear CMOS Hotkey
º CPU FSB adjustment(increase of 1MHz)
º * Adjustable CPU Voltage
º * Memory Voltage Adjustable
º * Support CPU over-clocking function: Adjustable CPU Clock Multiplier
º * HT Voltage Adjustable
º * Graphic Voltage Adjustable

FORM FACTOR

º ATX Form Factor
º 305mm X 220m

OS Support

º Windows 7 32-bit
º Windows 7 64-bit
º Windows 8 64-bit
º Windows 8.1 64-bit

Certifications

º CE/FCC Certification
º ErP/EuP Certification
º WHQL Certification
º WHCK Certification

Bundled Software

º ECS Intelligent EZ Utility : eBLU, eDLU, eOC, eSF
º Free Bundle: CyberLink Media Suite
º Creative Sound Blaster Cinema2 software




CPU Socket List:

* means validated by ECS at time of writing. Changes to component or CPU may produce a different outcome. The result shown is for reference only and is subject to change w/o notification.

Socket

Family

Processor

Wattage

Frequency

Cache

Stepping

Since BIOS

LGA1150

Intel Core™ i7

4690K

88W

3.50GHz

6MB

C0

05/16/2014

LGA1150

Intel Core™ i7

4765T

35W

2.00GHz

8MB

C0

04/09/2014

LGA1150

Intel Core™ i7

4770

84W

3.40GHz

8MB

C0

04/09/2014

LGA1150

Intel Core™ i7

4770K

84W

3.50GHz

8MB

C0

04/09/2014

LGA1150

Intel Core™ i7

4770S

65W

3.10GHz

8MB

C0

04/09/2014

LGA1150

Intel Core™ i7

4770T

45W

2.50GHz

8MB

C0

04/09/2014

LGA1150

Intel Core™ i7

4785T

35W

2.20GHz

8MB

C0

04/09/2014

LGA1150

Intel Core™ i7

4790

84W

3.60GHz

8MB

C0

04/09/2014

LGA1150

Intel Core™ i7

4790K

88W

4.00GHz

8MB

C0

05/16/2014

LGA1150

Intel Core™ i7

4790S

65W

3.20GHz

8MB

C0

04/09/2014

LGA1150

Intel Core™ i7

4790T

45W

2.70GHz

8MB

C0

04/09/2014

LGA1150

Intel Core™ i7

5775C

65W

3.30GHz

6MB

G0

06/23/2015

LGA1150

Intel Core™ i5

4430

84W

3.00GHz

6MB

C0

04/09/2014

LGA1150

Intel Core™ i5

4430S

65W

2.70GHz

6MB

C0

04/09/2014

LGA1150

Intel Core™ i5

4440

84W

3.10GHz

6MB

C0

04/09/2014

LGA1150

Intel Core™ i5

4440S

65W

2.80GHz

6MB

C0

04/09/2014

LGA1150

Intel Core™ i5

4460

84W

3.20GHz

6MB

C0

04/09/2014

LGA1150

Intel Core™ i5

4460S

65W

2.90GHz

6MB

C0

04/09/2014

LGA1150

Intel Core™ i5

4460T

35W

1.90GHz

6MB

C0

04/09/2014

LGA1150

Intel Core™ i5

4570

84W

3.20GHz

6MB

C0

04/09/2014

LGA1150

Intel Core™ i5

4570S

65W

2.90GHz

6MB

C0

04/09/2014

LGA1150

Intel Core™ i5

4570T

35W

2.90GHz

4MB

C0

04/09/2014

LGA1150

Intel Core™ i5

4590

84W

3.30GHz

6MB

C0

04/09/2014

LGA1150

Intel Core™ i5

4590S

65W

3.00GHz

6MB

C0

04/09/2014

LGA1150

Intel Core™ i5

4590T

35W

2.00GHz

6MB

C0

04/09/2014

LGA1150

Intel Core™ i5

4670

84W

3.40GHz

6MB

C0

04/09/2014

LGA1150

Intel Core™ i5

4670K

84W

3.40GHz

6MB

C0

04/09/2014

LGA1150

Intel Core™ i5

4670S

65W

3.10GHz

6MB

C0

04/09/2014

LGA1150

Intel Core™ i5

4670T

45W

2.30GHz

6MB

C0

04/09/2014

LGA1150

Intel Core™ i5

4690

84W

3.50GHz

6MB

C0

04/09/2014

LGA1150

Intel Core™ i5

4690S

65W

3.20GHz

6MB

C0

04/09/2014

LGA1150

Intel Core™ i5

5675C

65W

3.10GHz

4MB

G0

06/23/2015

LGA1150

Intel Core™ i3

4130

54W

3.40GHz

3MB

C0

04/09/2014

LGA1150

Intel Core™ i3

4130T

35W

2.90GHz

3MB

C0

04/09/2014

LGA1150

Intel Core™ i3

4150

54W

3.50GHz

3MB

C0

04/09/2014

LGA1150

Intel Core™ i3

4150T

35W

3.00GHz

3MB

C0

04/09/2014

LGA1150

Intel Core™ i3

4330

54W

3.50GHz

4MB

C0

04/09/2014

LGA1150

Intel Core™ i3

4340

54W

3.60GHz

4MB

C0

04/09/2014

LGA1150

Intel Core™ i3

4350

54W

3.60GHz

4MB

C0

04/09/2014

LGA1150

Intel Core™ i3

4350T

35W

3.10GHz

4MB

C0

04/09/2014

LGA1150

Intel Core™ i3

4360

54W

3.70GHz

4MB

C0

04/09/2014

LGA1150

Intel Pentium

G3220

53W

3.00GHz

3MB

C0

04/09/2014

LGA1150

Intel Pentium

G3220T

35W

2.60GHz

3MB

C0

04/09/2014

LGA1150

Intel Pentium

G3240

53W

3.10GHz

3MB

C0

04/09/2014

LGA1150

Intel Pentium

G3240T

35W

2.70GHz

3MB

C0

04/09/2014

LGA1150

Intel Pentium

G3258

53W

3.20GHz

3MB

C0

07/03/2014

LGA1150

Intel Pentium

G3420

53W

3.20GHz

3MB

C0

04/09/2014

LGA1150

Intel Pentium

G3420T

35W

2.70GHz

3MB

C0

04/09/2014

LGA1150

Intel Pentium

G3430

53W

3.30GHz

3MB

C0

04/09/2014

LGA1150

Intel Pentium

G3440

53W

3.30GHz

3MB

C0

04/09/2014

LGA1150

Intel Pentium

G3440T

35W

2.80GHz

3MB

C0

04/09/2014

LGA1150

Intel Pentium

G3450

53W

3.40GHz

3MB

C0

04/09/2014

LGA1150

Intel Celeron

G1820

65W

2.70GHz

2MB

C0

04/09/2014

LGA1150

Intel Celeron

G1820T

35W

2.40GHz

2MB

C0

04/09/2014

LGA1150

Intel Celeron

G1830

65W

2.80GHz

2MB

C0

04/09/2014

LGA1150

Intel Celeron

G1840

53W

2.80GHz

2MB

C0

04/09/2014

LGA1150

Intel Celeron

G1840T

35W

2.50GHz

2MB

C0

04/09/2014

LGA1150

Intel Celeron

G1850

53W

2.90GHz

2MB

C0

04/09/2014
