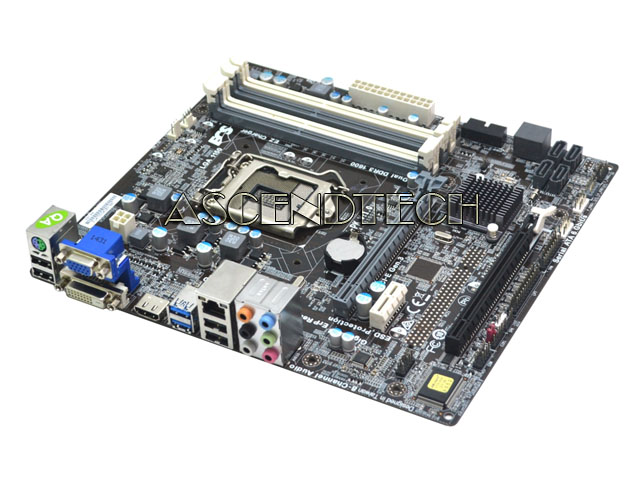

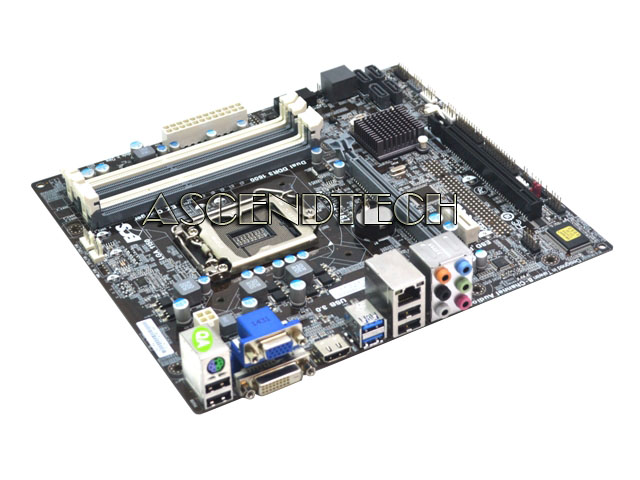

ECS Z97-PK V1.0 Micro ATX Motherboard

CPU

º Supports New 4th & 4th gen Intel^® Core™ family, Pentium, Celeron series processors in LGA1150 socket
º DMI 5.0GT/s
º 3 Phase Thermal Design Power
º VRD 12.5
º 100% Solid capacitor design
º Supports Intel^® Turbo Boost 2.0 Technology
º Supports Intel^® Hyper-Threading Technology
º Intel^® K Series Unlock CPU Support
º Please refer to CPU support list for details

CHIPSET

º Intel^® Z97 Express Chipset
º Intel^® Smart Response Technology, Intel^® Smart Connect Technology & Intel^® Rapid Start Technolog
º Supports Intel^® Identity Protection Technology

GRAPHICS

º Supports DirectX^® 11 .1
º Supports Intel^® HD Graphics, InTru™ 3D, Quick Sync Video, Clear Video HD Technology,
    Insider™
º Supports HDMI 1.4a & Premium Audio
º Supports Full HD 1080P Blu-ray / HD-DVD Playback

MEMORY

º Dual-channel DDR3 Memory architecture
º Supports DDR3 1600 non-ECC, Un-buffered SDRAM Memory
º 4 X 240-pin DDR3 DIMM socket
º Support up to 32 GB*
º * Due to the operation system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows^® 32-bit OS. For Windows^® 64-bit OS with 64-bit CPU, there is no such limitation
º Note: DDR3_1 with DDR3_3 are the same channel, DDR3_2 with DDR3_4 are the same channel by Intel^® Specification

EXPANSION SLOT

º 1 X PCI Express X16 Gen 3.0 slot(s)
º 1 X PCI Express X16 Gen 2.0 slot(s)
º runs at x4
º 1 X PCI Express X 1 Gen 2.0 slot(s)
º Supports AMD CrossFire™ Technology
º *The second PCIE X16 only support bandwidth X4

Storage

º Support by Z97 Express Chipset
    • 6 X Serial ATAIII 6Gb/s
    • RAID0, RAID1,RAID5, RAID 10 configuration
º Supports Intel^® Rapid Storage Technology

Audio

º 8-Channel HD audio CODEC
º Realtek ALC892
‧Realtek ALC892 8-channel High Definition audio CODEC
‧Compatible with Direct Sound 3D™, A3D™, I3DL2
‧Smart multiple streaming operation
‧Intuitive Configuration Panel (Realtek Audio Manager) to enhance user experience
‧7.1+2 channel multi-streaming enables concurrent gaming/VoIP
º BluRay DVD/HD DVD support

LAN

º Realtek RTL8111G Gigabit Fast Ethernet Controller
º Wake-On-LAN

USB

º Support by Z97 Express Chipset
    • 4 X USB3.0 port(s) up to 5Gb/s
      Back Panel 2 port(s)
      Onboard 2 port(s)
    • 10 X USB2.0 port(s) Up to 480 Mb/s
      Back Panel 4 port(s)
      Onboard 6 port(s)
º ECS EZ Charger (Gray USB header)

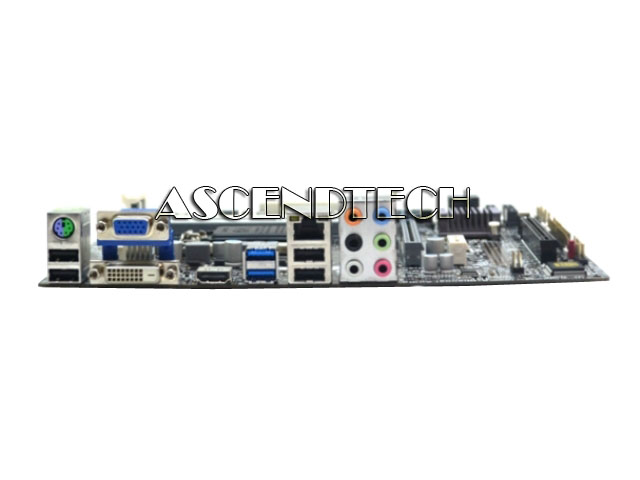

REAR PANEL I/O

º 1 X PS/2 Keyboard & PS/2 mouse connectors
º 1 X Audio port (Line-in,4x Line-out, Mic in)
º 1 X RJ-45 port
º 1 X HDMI port(s)
º 1 X DVI-I port(s)
º 1 X D-Sub (VGA) port(s)
º 2 X USB3.0 port(s)
º 4 X USB2.0 port(s)

CONNECTORS & HEADERS

º 1 X 24-pin ATX Power Supply connector
º 1 X 4-pin 12V Power connector
º 1 X 4-pin CPU_FAN connector with smart fan
º 1 X 3-pin SYS_FAN connector with smart fan
º 1 X Front Panel switch/LED header
º 1 X Front panel audio header
º 1 X USB 3.0 header
    • Support additional 2 USB ports
º 3 X USB 2.0 header
    • Support additional 6 USB ports
º Support EZ charger (gray color)
º 6 X SATA III 6Gb/s connector(s)
º 1 X CLR_CMOS header
º 1 X CIR header
º 1 X Serial port header (COM)
º 1 X Parallel port header (LPT)
º 1 X TPM header
º 1 X Chassis intrusion header

SYSTEM BIOS

º AMI BIOS with 64 MB SPI Flash ROM
º Supports M.I.B III Utility
º F7 hot key for boot up devices option
º Triple Display
º Support ECS EZ BIOS
º Plug and Play, STR (S3) / STD (S4) , Hardware monitor, Multi Boot
º Multi-Language BIOS
º Audio, LAN, can be disabled in BIOS
º Dual-Monitor function

FORM FACTOR

º mATX Form Factor
º 244mm(W) X 220 mm(H)

OS Support

º Windows 7 32-bit
º Windows 7 64-bit
º Windows 8 64-bit

Certifications

º CE/FCC Certification
º ErP/EuP Certification
º WHCK Certification

Bundled Software

º ECS Intelligent EZ Utility : eBLU, eDLU, eSF
º Free Bundle: CyberLink Media Suite

Socket

Family

Processor

Wattage

Frequency

Cache

Stepping

Since BIOS

LGA1150

Intel Core™ i7

4765T

35W

2.00GHz

8MB

C0

07/29/2014

LGA1150

Intel Core™ i7

4770

84W

3.40GHz

8MB

C0

07/29/2014

LGA1150

Intel Core™ i7

4770K

84W

3.50GHz

8MB

C0

07/29/2014

LGA1150

Intel Core™ i7

4770S

65W

3.10GHz

8MB

C0

07/29/2014

LGA1150

Intel Core™ i7

4770T

45W

2.50GHz

8MB

C0

07/29/2014

LGA1150

Intel Core™ i7

4771

84W

3.50GHz

8MB

C0

07/29/2014

LGA1150

Intel Core™ i7

4785T

35W

2.20GHz

8MB

C0

07/29/2014

LGA1150

Intel Core™ i7

4790

84W

3.60GHz

8MB

C0

07/29/2014

LGA1150

Intel Core™ i7

4790S

65W

3.20GHz

8MB

C0

07/29/2014

LGA1150

Intel Core™ i7

4790T

45W

2.70GHz

8MB

C0

07/29/2014

LGA1150

Intel Core™ i7

5775C

65W

3.30GHz

6MB

G0

06/24/2015

LGA1150

Intel Core™ i5

4430

84W

3.00GHz

6MB

C0

07/29/2014

LGA1150

Intel Core™ i5

4430S

65W

2.70GHz

6MB

C0

07/29/2014

LGA1150

Intel Core™ i5

4440

84W

3.10GHz

6MB

C0

07/29/2014

LGA1150

Intel Core™ i5

4440S

65W

2.80GHz

6MB

C0

07/29/2014

LGA1150

Intel Core™ i5

4460

84W

3.20GHz

6MB

C0

07/29/2014

LGA1150

Intel Core™ i5

4460S

65W

2.90GHz

6MB

C0

07/29/2014

LGA1150

Intel Core™ i5

4460T

35W

1.90GHz

6MB

C0

07/29/2014

LGA1150

Intel Core™ i5

4570

84W

3.20GHz

6MB

C0

07/29/2014

LGA1150

Intel Core™ i5

4570S

65W

2.90GHz

6MB

C0

07/29/2014

LGA1150

Intel Core™ i5

4570T

35W

2.90GHz

4MB

C0

07/29/2014

LGA1150

Intel Core™ i5

4590

84W

3.30GHz

6MB

C0

07/29/2014

LGA1150

Intel Core™ i5

4590S

65W

3.00GHz

6MB

C0

07/29/2014

LGA1150

Intel Core™ i5

4590T

35W

2.00GHz

6MB

C0

07/29/2014

LGA1150

Intel Core™ i5

4670

84W

3.40GHz

6MB

C0

07/29/2014

LGA1150

Intel Core™ i5

4670K

84W

3.40GHz

6MB

C0

07/29/2014

LGA1150

Intel Core™ i5

4670S

65W

3.10GHz

6MB

C0

07/29/2014

LGA1150

Intel Core™ i5

4670T

45W

2.30GHz

6MB

C0

07/29/2014

LGA1150

Intel Core™ i5

4690

84W

3.50GHz

6MB

C0

07/29/2014

LGA1150

Intel Core™ i5

4690S

65W

3.20GHz

6MB

C0

07/29/2014

LGA1150

Intel Core™ i5

5675C

65W

3.10GHz

4MB

G0

06/24/2015

LGA1150

Intel Core™ i3

4130

54W

3.40GHz

3MB

C0

07/29/2014

LGA1150

Intel Core™ i3

4130T

35W

2.90GHz

3MB

C0

07/29/2014

LGA1150

Intel Core™ i3

4150

54W

3.50GHz

3MB

C0

07/29/2014

LGA1150

Intel Core™ i3

4150T

35W

3.00GHz

3MB

C0

07/29/2014

LGA1150

Intel Core™ i3

4330

54W

3.50GHz

4MB

C0

07/29/2014

LGA1150

Intel Core™ i3

4330T

35W

3.00GHz

4MB

C0

07/29/2014

LGA1150

Intel Core™ i3

4340

54W

3.60GHz

4MB

C0

07/29/2014

LGA1150

Intel Core™ i3

4350

54W

3.60GHz

4MB

C0

07/29/2014

LGA1150

Intel Core™ i3

4350T

35W

3.10GHz

4MB

C0

07/29/2014

LGA1150

Intel Core™ i3

4360

54W

3.70GHz

4MB

C0

07/29/2014

LGA1150

Intel Pentium

G3220

53W

3.00GHz

3MB

C0

07/29/2014

LGA1150

Intel Pentium

G3220T

35W

2.60GHz

3MB

C0

07/29/2014

LGA1150

Intel Pentium

G3240

53W

3.10GHz

3MB

C0

07/29/2014

LGA1150

Intel Pentium

G3240T

35W

2.70GHz

3MB

C0

07/29/2014

LGA1150

Intel Pentium

G3420

53W

3.20GHz

3MB

C0

07/29/2014

LGA1150

Intel Pentium

G3420T

35W

2.70GHz

3MB

C0

07/29/2014

LGA1150

Intel Pentium

G3430

53W

3.30GHz

3MB

C0

07/29/2014

LGA1150

Intel Pentium

G3440

53W

3.30GHz

3MB

C0

07/29/2014

LGA1150

Intel Pentium

G3440T

35W

2.80GHz

3MB

C0

07/29/2014

LGA1150

Intel Pentium

G3450

53W

3.40GHz

3MB

C0

07/29/2014

LGA1150

Intel Celeron

G1820

65W

2.70GHz

2MB

C0

07/29/2014

LGA1150

Intel Celeron

G1820T

35W

2.40GHz

2MB

C0

07/29/2014

LGA1150

Intel Celeron

G1830

65W

2.80GHz

2MB

C0

07/29/2014

LGA1150

Intel Celeron

G1840

53W

2.80GHz

2MB

C0

07/29/2014

LGA1150

Intel Celeron

G1840T

35W

2.50GHz

2MB

C0

07/29/2014

LGA1150

Intel Celeron

G1850

53W

2.90GHz

2MB

C0

07/29/2014
