ECS Z97I-DRONE LGA1150 DDR3 Motherboard

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.

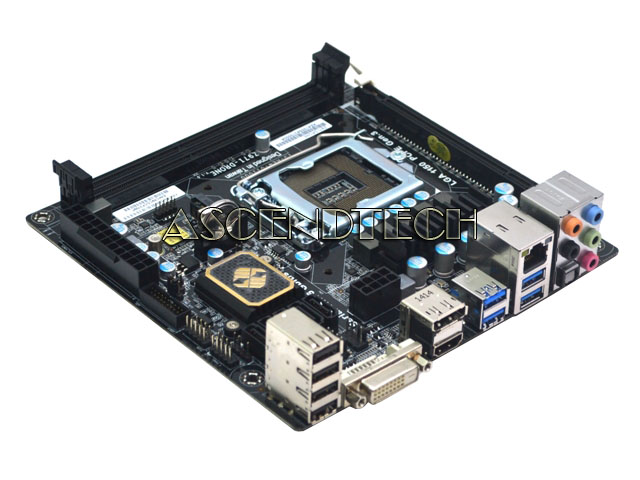

Ecs Z97i-Drone Lga1150 Ddr3 Motherboard. Model: Z97i-Drone V1.0A
  Enlarge
Ecs Z97i-Drone Lga1150 Ddr3 Motherboard. Model: Z97i-Drone V1.0A
Ecs Z97i-Drone Lga1150 Ddr3 Motherboard. Model: Z97i-Drone V1.0A
Ecs Z97i-Drone Lga1150 Ddr3 Motherboard. Model: Z97i-Drone V1.0A
*Note this image is for descriptional purposes.
Actual product may vary.
Item Code MBECSZ97IDRONEV
Brand Ecs - Elitegroup
Model Z97I-DRONE V1.0A
Category Intel Lga1150 Motherboard
Condition New Open Box

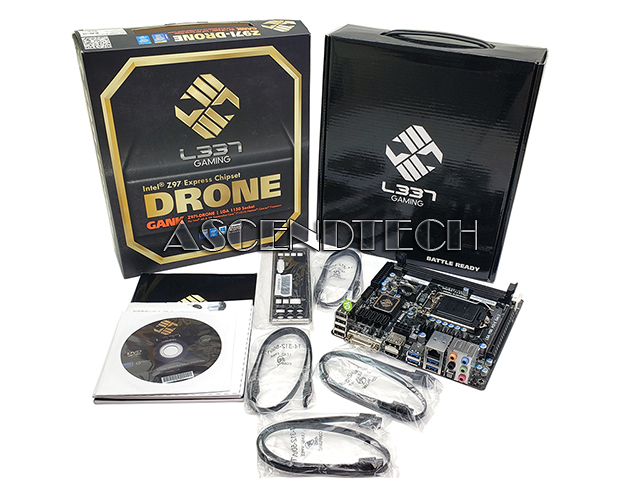

Condition Description Please note, this motherboard comes with I/O Shield, Manuals, 4x SATA Cables, System Utility DVD.

Description

ECS Z97I-DRONE V1.0A Intel Z97 Socket LGA1150 DDR3 3000 Serial ATAIII 6Gb/s Mini ITX Motherboard.

ECS Model Number: Z97I-DRONE
Includes: I/O Shield, Manuals, 4x SATA Cables, System Utility DVD







Features:

Supports 3 independent displays
5 Phase Power Design
Supports Intel K Series unlock CPU
Applied 100% Solid capacitor design to maximize component reliability
ECS Durathon Technology ensure the stability, reliability and performance of system.
ESD Protection prevents computers from electrostatic discharge damage to enhance
its durability and lifespan
ECS MIB X - A friendly interface for overclocking, especially for gamer
Microsoft Windows 8.1 Certified
Intel 22nm 4th generation Multi-Core CPU support
Intel 14nm 5th generation Multi-Core CPU support
Supports DirectX 11.1 to enhance graphical performance
Supports Intel HD Graphics, InTru 3D, Quick Sync Video, Clear Video HD Technology,
Insider
Supports HDMI 1.4a Technology ( resolution up to 1920X1200 ) and HDCP function
Supports Sound Blaster Cinema2 technology to deliver cinema-quality picture and sound
to home environments
Supports Intel Rapid Start technology
Supports Intel Smart Response, Smart Connect and Rapid Start Technology
ECS Intelligent EZ Utility : eBLU, eDLU, eOC, eSF







Specifications:


CPU

º Supports new 5th & 4th gen Intel Core family/ Pentium / Celeron series processors for LGA 1150 socket
º DMI 5.0GT/s
º 5 Phase Thermal Design Power
º VRD 12.5
º 100% Solid capacitor design
º Intel K Series Unlock CPU Support

CHIPSET

º Intel Z97 Express Chipset
º Supports Intel Rapid Start technology
º Supports Intel Smart Connect technology
º Supports Intel Smart Response technology

GRAPHICS

º Supports DirectX 11 .1
º Supports Intel HD Graphics, InTru 3D, Quick Sync Video, Clear Video HD Technology,
    Insider
º Supports HDMI 1.4a & Premium Audio

MEMORY

º  Dual-channelDDR3 Memory architecture
º Supports DDR3 3000 non-ECC, Un-buffered SDRAM Memory
º 2 X 240-pin DDR3 DIMM socket
º Support up to 16 GB*
º Intel extreme Memory Profile (XMP) 1.3/1.2 Memory Modules

EXPANSION SLOT

º 1 X PCI Express X16 Gen 3.0 slot(s)
º 1 X M.2 slot for WiFi/BT

Storage

º Support by Intel Z97 Express Chipset
    • 5 X Serial ATAIII 6Gb/s
    • RAID0, RAID1,RAID5, RAID 10 configuration
º Supports Intel Rapid Storage Technology

Audio

º 8-Channel HD audio CODEC
º Realtek ALC1150 8-channel High Definition audio CODEC

LAN

º Intel I218-V Gigabit Fast Ethernet Controller
º Wake-On-LAN

USB

º Support by Z97 Express Chipset
    •  6 X USB3.0 port(s) up to 5Gb/s
      Back Panel 4 port(s)
      Onboard 2 port(s)
    • 6 X USB2.0 port(s) Up to 480 Mb/s
      Back Panel 4 port(s)
      Onboard 2 port(s)

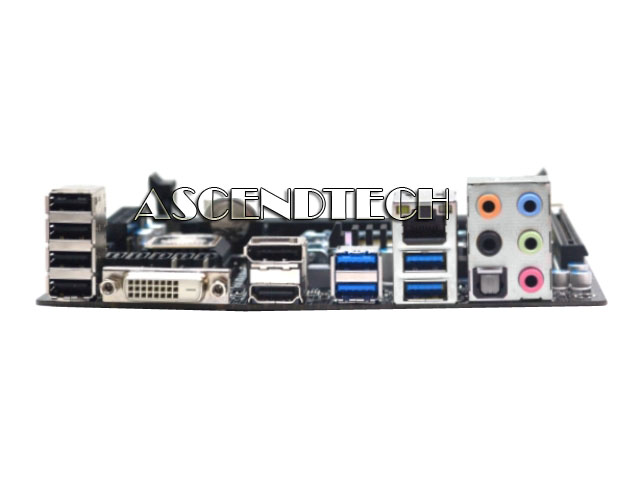

REAR PANEL I/O

º 1 X Audio port (Line-in,4x Line-out, SPDIF out)
º 1 X RJ-45 port
º 1 X HDMI port(s)
º 1 X DVI-D port(s)
º 1 X Display port
º 1 X Optical S/PDIF Out port(s)
º 4 X USB3.0 port(s)
º 4 X USB2.0 port(s)

CONNECTORS & HEADERS

º 1 X 24-pin ATX Power Supply connector
º 1 X 8-pin ATX 12V Power Connector
º 1 X 4-pin CPU_FAN connector with smart fan
º 1 X 4-pin SYS_FAN connector
º 1 X Front Panel switch/LED header
º 1 X Front panel audio header
º 1 X Speaker header
º 1 X USB 3.0 header
    • Support additional 2 USB ports
º 1 X USB 2.0 header
    • Support additional 2 USB ports
º 5 X SATA III 6Gb/s connector(s)
º 1 X CLR_CMOS header
º 1 X ME_UNLOCK header
º 1 X Chassis intrusion header

SYSTEM BIOS

º AMI BIOS with 64 MB SPI Flash ROM
º Supports M.I.B X Utility
º Supports ACPI 5.0 & DMI
º F7 hot key for boot up devices option
º Over-Clocking
º Graphic OC Support
º Triple Display
º Support ECS EZ BIOS
º Support GUI UEFI BIOS
º Plug and Play, STR (S3) / STD (S4) , Hardware monitor, Multi Boot
º Audio, LAN, can be disabled in BIOS
º ICC Clock adjustment (increase of 1MHz)
º * Adjustable CPU Voltage
º * Memory Voltage Adjustable
º * Support CPU over-clocking function: Adjustable CPU Clock Multiplier
º * Graphic Voltage Adjustable

FORM FACTOR

º Mini ITX Form Factor
º 170 mm X 170 mm








CPU Socket List:

* means validated by ECS at time of writing. Changes to component or CPU may produce a different outcome. The result shown is for reference only and is subject to change w/o notification.



Socket

Family

Processor

Wattage

Frequency

Cache

Stepping

Since BIOS

LGA1150

Intel Core i7

4765T

35W

2.00GHz

8MB

C0

06/13/2014

LGA1150

Intel Core i7

4770

84W

3.40GHz

8MB

C0

06/13/2014

LGA1150

Intel Core i7

4770K

84W

3.50GHz

8MB

C0

06/13/2014

LGA1150

Intel Core i7

4770S

65W

3.10GHz

8MB

C0

06/13/2014

LGA1150

Intel Core i7

4770T

45W

2.50GHz

8MB

C0

06/13/2014

LGA1150

Intel Core i7

4771

84W

3.50GHz

8MB

C0

06/13/2014

LGA1150

Intel Core i7

4785T

35W

2.20GHz

8MB

C0

06/13/2014

LGA1150

Intel Core i7

4790

84W

3.60GHz

8MB

C0

06/13/2014

LGA1150

Intel Core i7

4790S

65W

3.20GHz

8MB

C0

06/13/2014

LGA1150

Intel Core i7

4790T

45W

2.70GHz

8MB

C0

06/13/2014

LGA1150

Intel Core i7

5775C

65W

3.30GHz

6MB

G0

06/25/2015

LGA1150

Intel Core i5

4430

84W

3.00GHz

6MB

C0

06/13/2014

LGA1150

Intel Core i5

4430S

65W

2.70GHz

6MB

C0

06/13/2014

LGA1150

Intel Core i5

4440

84W

3.10GHz

6MB

C0

06/13/2014

LGA1150

Intel Core i5

4440S

65W

2.80GHz

6MB

C0

06/13/2014

LGA1150

Intel Core i5

4460

84W

3.20GHz

6MB

C0

06/13/2014

LGA1150

Intel Core i5

4460S

65W

2.90GHz

6MB

C0

06/13/2014

LGA1150

Intel Core i5

4460T

35W

1.90GHz

6MB

C0

06/13/2014

LGA1150

Intel Core i5

4570

84W

3.20GHz

6MB

C0

06/13/2014

LGA1150

Intel Core i5

4570S

65W

2.90GHz

6MB

C0

06/13/2014

LGA1150

Intel Core i5

4570T

35W

2.90GHz

4MB

C0

06/13/2014

LGA1150

Intel Core i5

4590

84W

3.30GHz

6MB

C0

06/13/2014

LGA1150

Intel Core i5

4590S

65W

3.00GHz

6MB

C0

06/13/2014

LGA1150

Intel Core i5

4590T

35W

2.00GHz

6MB

C0

06/13/2014

LGA1150

Intel Core i5

4670

84W

3.40GHz

6MB

C0

06/13/2014

LGA1150

Intel Core i5

4670K

84W

3.40GHz

6MB

C0

06/13/2014

LGA1150

Intel Core i5

4670S

65W

3.10GHz

6MB

C0

06/13/2014

LGA1150

Intel Core i5

4670T

45W

2.30GHz

6MB

C0

06/13/2014

LGA1150

Intel Core i5

4690

84W

3.50GHz

6MB

C0

06/13/2014

LGA1150

Intel Core i5

4690S

65W

3.20GHz

6MB

C0

06/13/2014

LGA1150

Intel Core i5

5675C

65W

3.10GHz

4MB

G0

06/25/2015

LGA1150

Intel Core i3

4130

54W

3.40GHz

3MB

C0

06/13/2014

LGA1150

Intel Core i3

4130T

35W

2.90GHz

3MB

C0

06/13/2014

LGA1150

Intel Core i3

4150

54W

3.50GHz

3MB

C0

06/13/2014

LGA1150

Intel Core i3

4150T

35W

3.00GHz

3MB

C0

06/13/2014

LGA1150

Intel Core i3

4330

54W

3.50GHz

4MB

C0

06/13/2014

LGA1150

Intel Core i3

4330T

35W

3.00GHz

4MB

C0

06/13/2014

LGA1150

Intel Core i3

4340

54W

3.60GHz

4MB

C0

06/13/2014

LGA1150

Intel Core i3

4350

54W

3.60GHz

4MB

C0

06/13/2014

LGA1150

Intel Core i3

4350T

35W

3.10GHz

4MB

C0

06/13/2014

LGA1150

Intel Core i3

4360

54W

3.70GHz

4MB

C0

06/13/2014

LGA1150

Intel Pentium

G3220

53W

3.00GHz

3MB

C0

06/13/2014

LGA1150

Intel Pentium

G3220T

35W

2.60GHz

3MB

C0

06/13/2014

LGA1150

Intel Pentium

G3240

53W

3.10GHz

3MB

C0

06/13/2014

LGA1150

Intel Pentium

G3240T

35W

2.70GHz

3MB

C0

06/13/2014

LGA1150

Intel Pentium

G3420

53W

3.20GHz

3MB

C0

06/13/2014

LGA1150

Intel Pentium

G3420T

35W

2.70GHz

3MB

C0

06/13/2014

LGA1150

Intel Pentium

G3430

53W

3.30GHz

3MB

C0

06/13/2014

LGA1150

Intel Pentium

G3440

53W

3.30GHz

3MB

C0

06/13/2014

LGA1150

Intel Pentium

G3440T

35W

2.80GHz

3MB

C0

06/13/2014

LGA1150

Intel Pentium

G3450

53W

3.40GHz

3MB

C0

06/13/2014

LGA1150

Intel Celeron

G1820

65W

2.70GHz

2MB

C0

06/13/2014

LGA1150

Intel Celeron

G1820T

35W

2.40GHz

2MB

C0

06/13/2014

LGA1150

Intel Celeron

G1830

65W

2.80GHz

2MB

C0

06/13/2014

LGA1150

Intel Celeron

G1840

53W

2.80GHz

2MB

C0

06/13/2014

LGA1150

Intel Celeron

G1840T

35W

2.50GHz

2MB

C0

06/13/2014

LGA1150

Intel Celeron

G1850

53W

2.90GHz

2MB

C0

06/13/2014
