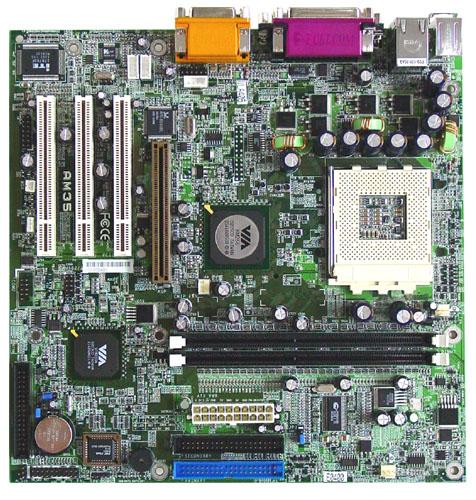

Emachines AM35 Socket A PGA462 Mboard
Actual product may vary.
Description
Emachines AM35 Socket A PGA462 Motherboard. Emachines Motherboard Raises The Bar Of PC Industry And Deliver A Full-value, High-performance Solution For Today's Most Demanding Tasks.
Related Part Number: AM35 1852
Specifications:
Motherboard Description | Manufacturer's name - FIC AM35 |
Motherboard Name | AM35 |
Motherboard Supplier | FIC |
System BIOS Supplier | Asus Award |
Form Factor | uATX |
Processor Brand | AMD |
Processor Socket Type | Socket-A (PGA462) |
Processor Family | Duron, Athlon, AthlonXP |
Proc. Front Side Bus Frequency | 200/266 MHz |
Chipset Name | VIA KM266 |
Chipset "North Bridge" |
|
Revision/stepping | A1 |
Chipset "South Bridge" | VT8233A |
Revision/stepping | CD |
Super I/O | ITE-IT8705F |
Revision/stepping |
|
Flash BIOS Device | Xbus 2Mbit |
Memory Type | DDR |
Memory Speed | PC2100/PC1600 |
Memory Sockets | 2 DIMM |
Maximum Memory | 2 GB |
Graphics Supplier | VIA |
Graphics Configuration | Down, In Chipset |
Onboard Graphics Memory | UMA 64MB |
Graphics Connector (AGP) | AGP 4X (1.5V only) |
TV-Out Device | No |
TV-Out Configuration | (N/A) |
Audio | AC'97 Down |
AC'97 CODEC Device | Realtek ALC201 |
Ethernet 10/100 LAN Supplier | Realtek RTL8100L |
Ethernet Configuration | PCI, Down |
IDE UDMA Modes | ATA-100/66/33 |
Expansion Slots (AGP/PCI/Exten) | AGP, 3 PCI |
USB Ports | 4 USB 1.1 |
USB Front/Back Options | 2F+2B |
Serial, Parallel, Floppy, PS2 Keyboard and Mouse | 1S, 1P, 1F, PS2 K+M |

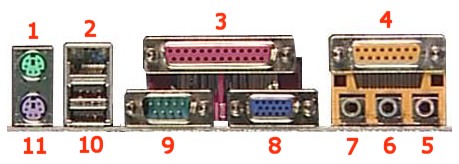

1 - Mouse
2 - LAN
3 - Parallel
4 - Gameport
5 - Microphone
6 - Line-in
7 - Line-Out
8 - VGA
9 - Serial
10 - USB
11 - Keyboard
