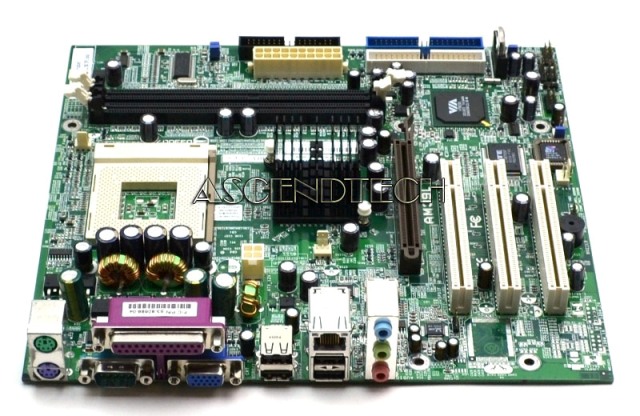

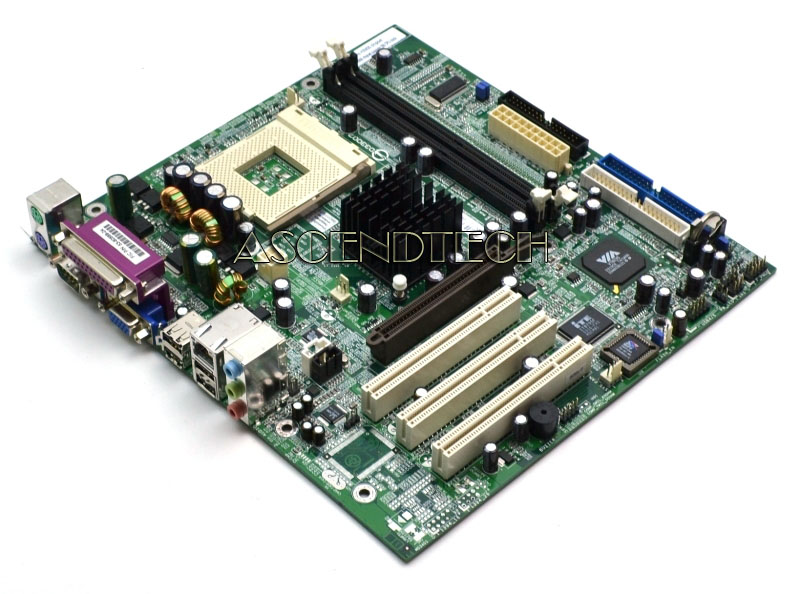

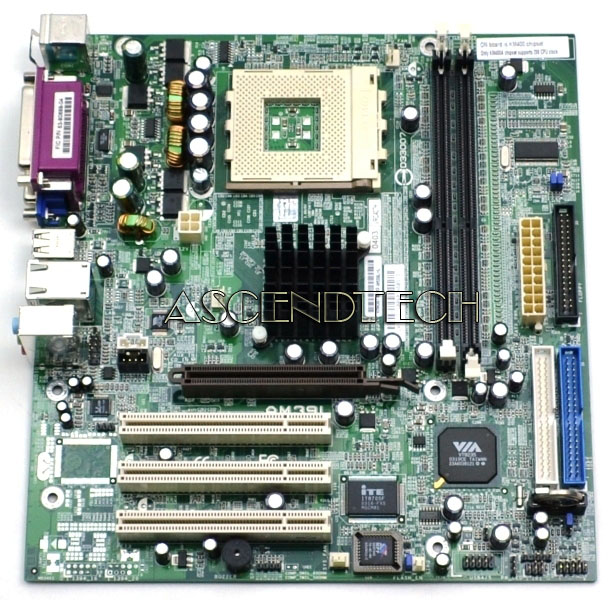

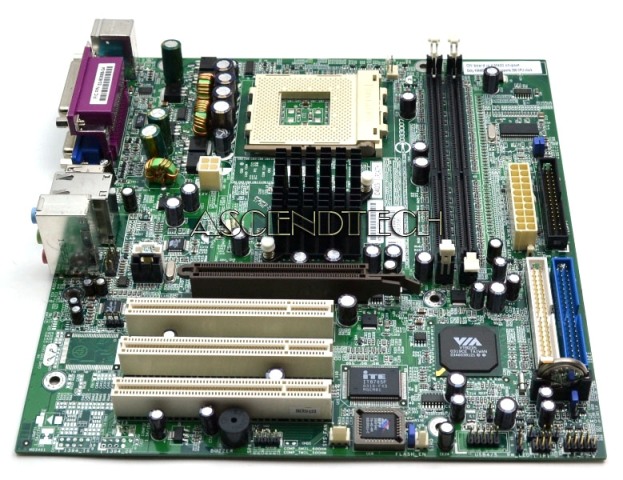

Emachines AM39L Motherboard 100452

Emachines AM39L Desktop PC AMD Processor Socket A Micro ATX Motherboard 100452. Emachines Raises The Bar Of PC Industry And Deliver A Full-value, High-performance Solution For Today's Most Demanding Tasks.

Part Number: 100452
Application: Emachines AM39L Desktop



Features and Specifications:

Supports AMD Athlon Socket A processors
200/266/333 MHz FSB
VIA KM400 + VT8235 chipset
mATX form factor
Socket A
Supports up to 2 GB DDR RAM (DDR266/333)
Two (2) IDE controllers
One (1) floppy controller
Integrated video
Realtek AL650 AC'97 audio CODEC
VIA VT 6103L integrated Ethernet controller
Expansion Slots:
One (1) AGP slot
Three (3) PCI slots
Two (2) 184-pin DIMM slots
I/O Ports:
Two (2) PS/2 ports
One (1) 15-pin standard VGA port
One (1) 9-pin standard serial port
One (1) 25-pin standard parallel port
Four (4) USB ports
One (1) RJ-45 Ethernet jack
Line in, Microphone, and line-out jacks
