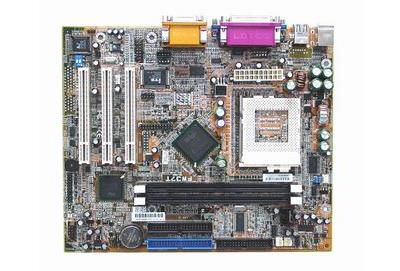

Emachines FW37T Motherboard 1760

Emachines FW37T Motherboard 1760. Emachines Raises The Bar Of PC Industry And Deliver A Full-value, High-performance Solution For Today's Most Demanding Tasks.

Specifications:

Processor Class: Intel® Pentium® III FCPGA2 Tualatin 1.13~1.26 GHz and @ 133 MHz FSB
Intel® Pentium® III FCPGA 500MHz~1.1Ghz and up* @ 100/133 MHz FSB
Intel® Celeron™ FCPGA2 Tualatin 1.2~1.4 GHz and up* @ 100 MHz FSB
Intel® Celeron™ FCPGA 800MHz~1.1GHz @ 100 MHz FSB
VIA C3 800A~866A @100/133 MHz FSB
Number of Processors Supported: 1
Chipset Used: Intel® 810E
Front Side Bus Supported: 100/133 MHz
Memory Types Supported: 512 MB (max) PC100/PC133 SDRAM, non-ECC
Number of Memory Slots: 2 (168Pin)
Video Integrated: Embedded in 810e Chipset with 4MB Display Cache
Audio Integrated: Embedded in ICH2 with AC97 Codec chipset
Network Controller On-Board: Onboard 10/100Mbps Ethernet LAN chipset
Onboard Device: 1 Parallel and 2 Serial Ports (one via a board header)
IDE Mode Supported: Two IDE interfaces with Ultra DMA 33, ATA-66/100 support
Slots Available: 3 PCI 32-bit 33 MHz PCI 2.2
Form Factor: microATX, 9.6 x 7.8 Inches
Rear Panel:
PS/2 Keyboard
PS/2 Mouse
2 x USB 1.1
1 x RJ45
1 x LPT
1 x COM
1 x VGA
1 x Line-in / 1 x Line-out / 1 x MIC
1 x Game / Midi port
