Emachines Grant County Motherboard

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.

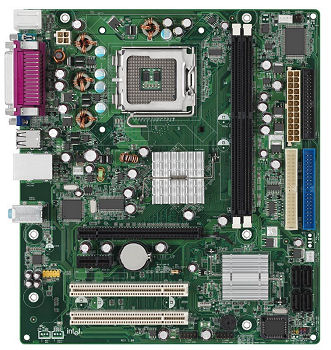

Emachines Grant County Motherboard
  Enlarge
*Note this image is for descriptional purposes.
Actual product may vary.
Item Code MB4EGRANTCOUNTY
Brand Emachines
Model Grant County
Category Intel Lga775 Motherboards

Description

Emachines Grant County RC410 Motherboard. Featuring ATI RC410 Chipset. This desktop board delivers an integrated graphics solution for your next value platform. This board is designed to support the Intel® Pentium® D Processor, the Intel® Pentium® 4 Processor with Hyper-Threading Technology† and the Intel® Celeron® D processor in the LGA775 package. This ATX board delivers both quality and value by offering features such as High Definition Audio and Realtek* 8101L 10/100 LAN. This desktop board also features PCI Express* x16, DDR 400/333 memory, and 8 USB 2.0 ports.

Manufactured by Intel for Emachines

Emachines Compatible Part# H3504 H3512 H5048 T3504 T3506 T3508 T3512 T3516 T5048 W3502 W3503

FeatureSpecification
Form Factor
  • uATX
  • Dimensions: 9.6 × 9.6 inches
    • CPU SupportIntel® processors in the LGA775 package
    System Bus Support800/533 Mhz
    Memory Support
  • Two DDR1 DIMM slots
  • DDR1 400/333 MHz single channel modules
  • Maximum capacity: 2 GB
    • MCH (Northbridge)ATI RC410 Rev. A12
    ICH (Southbridge)IXP 450
    Firmware Hub4 MB
    VideoIntegrated ATI Radeon Xpress 200
    Up to 128 MB of shared video memory
    AudioIntegrated Azalia 6-Channel (5.1) High Definition Audio
    NetworkIntegrated Realtek 8101L 10/100 Ethernet LAN
    Serial Input/Output (SIO)SMSC SCH5017
    Add-In Card Slots
  • One PCI Express ×16 (graphics interface)
  • One PCI Express ×1
  • Two PCI conventional
    • Rear Panel I/O Ports
  • One PS/2 mouse
  • One PS/2 keyboard
  • One parallel
  • One serial
  • One VGA monitor
  • Four USB 2.0
  • One RJ-45 LAN connector
  • Three analog audio jacks
    • Internal Headers
  • Two 2-port USB 2.0 connectors (2 × 5)
  • Front panel audio connector (mic / headphone) (2 × 5)
  • Front panel connector (2 × 5 supports power LED, power switch, hard drive LED, and, if present, reset switch)
  • Floppy disk drive connector
  • Primary IDE connector
  • Secondary IDE connector
  • Four Serial ATA (SATA) connectors
  • Chassis Intrusion Header
  • Main Power Connector 24-pin
  • Auxiliary 12V CPU power connector 4-pin
  • CPU fan connector
  • Front fan connector
  • Rear fan connector
  • BIOS configuration jumper
