H3624 H3882 T3882 T3985 | Emachines Hazelton Motherboard 103131

Emachines Hazelton Motherboard 103131. This Motherboard supports Intel Celeron 4 processor in an mPGA478 socket with an 400 MHz system bus. Supports DDR 400 MHz, DDR 333 MHz and DDR 266 MHz DIMMs.

Part Numbers: 103131 103291 4001135 105267 TMEOEMD865GVHZLT1 WMEOEMD865GVHZLT1

For eMachines Models: H3624 H3882 T3882 T3985

Features:

A microATX form factor

Intel® 865GV Chipset

Two 184-pin DDR SDRAM Dual Inline Memory Module (DIMM) sockets

Support for 2 GB of system memory

Intel® Extreme Graphics 2 controller

Intel® Pro 10/100 NIC Ethernet LAN subsystem using the Intel® 82562EZ Platform LAN Connect (PLC) device

Audio subsystem for AC ’97 processing using the Realtek ALC202A codec

Support for USB 2.0 devices

For more specific feature information view the specifications page.

Specifications:

Form Factor	microATX Form Factor (9.60 inches × 8.50 inches [243.84 millimeters × 215.90 millimeters])
Processor	Support for an Intel® Celeron® 4 processor in an mPGA478 socket with an 400 MHz system bus
Memory	Two 184-pin DDR SDRAM Dual Inline Memory Module (DIMM) sockets Support for DDR 400 MHz, DDR 333 MHz and DDR 266 MHz DIMMs Support for up to 2 GB of system memory
Chipset	Intel® 865GV Chipset, consisting of: Intel® 82865GV Graphics and Memory Controller Hub (GMCH) Intel® 82801EB I/O Controller Hub (ICH5) 4-Mbit Firmware Hub (FWH)
Video	Intel® Extreme Graphics 2 controller
Audio	Audio subsystem for AC '97 processing using the Realtek ALC202A codec
I/O Control	SMSC LPC47M172 LPC Bus I/O controller
USB	Support for USB 2.0 devices
Peripheral Interfaces	Eight USB ports One serial port One parallel port Two Serial ATA IDE interfaces Two Parallel ATA IDE interface with UDMA 33, ATA-66/100 support One diskette drive interface PS/2 keyboard and mouse ports
LAN Support	10/100 Mbits/sec LAN subsystem using the Intel® 82562EZ Platform LAN Connect (PLC) device
BIOS	Intel/AMI BIOS (resident in the 4 Mbit FWH) Support for Advanced Configuration and Power Interface (ACPI), Plug and Play, and SMBIOS
Instantly Available PC Technology	Support for PCI Local Bus Specification Revision 2.2 Suspend to RAM support Wake on PCI, RS-232, front panel, PS/2 devices, and USB ports
Expansion Capabilities	Three PCI bus add-in card connectors (SMBus routed to PCI bus connector 2)
Hardware Monitor Subsystem	Hardware monitoring and fan control ASIC Voltage sense to detect out of range power supply voltages Thermal sense to detect out of range thermal values Three fan connectors Three fan sense inputs used to monitor fan activity Fan speed control

Please click here for additional specifications and drivers!

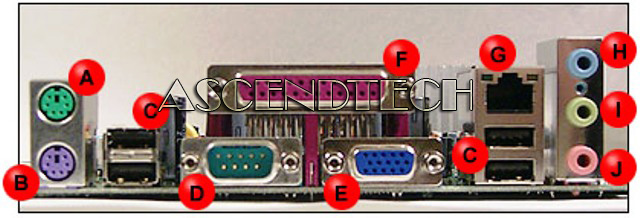

Rear panel ports
