Emachines Imperial GL VE Motherboard
We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.
Enlarge
*Note this image is for descriptional purposes.
Actual product may vary.
Actual product may vary.
Description

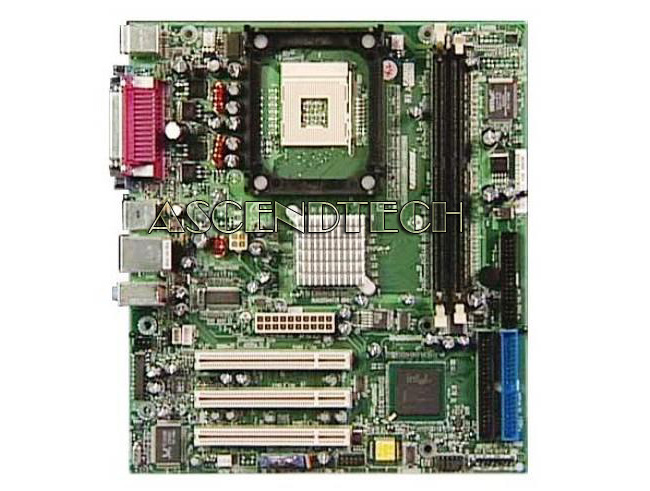

Emachines Imperial GLVE Motherboard. Part number: 134841 137001. Emachines motherboard raises the bar of PC industry and deliver a full-value, high-performance solution for today's most demanding tasks.
Manufacturer: Emachines
Part number: 134841 137001 Imperial GL VE 20020930 20021218
Specifications:
| Form factor | uATX | ||
| Processor brand | Intel | ||
| Processor socket type | mPGA478 | ||
| Processor family | P4 and Celeron (Willamette, Northwood) | ||
| Proc. Front Side Bus Freq. | 400 MHz | ||
| Chipset name | 845GL | ||
| Chipset "North Bridge" | 845GL | ||
| Revision/stepping | A1 | ||
| Chipset "South Bridge" | ICH4 | ||
| Revision/stepping | A1 | ||
| Super I/O | SMsC LPC47M102 | ||
| Revision/stepping | VS142AV | ||
| Flash BIOS device | 2 DIMMs (184 Pin) | ||
| Memory type | DDR | ||
| Memory speed | PC2100/PC1600 | ||
| Memory sockets | 2 DIMMs (184 Pin) | ||
| Maximum memory | 2 GB (HP and Compaq recommend 1 GB) | ||
| Graphics supplier | Intel | ||
| Graphics configuration | Down, In Chipset | ||
| Onboard graphics memory | UMA/up to 48 MB | ||
| Graphics connector (AGP | None | ||
| TV-Out device | No | ||
| TV-Out configuration | ADD TVout card | ||
| Audio | AC'97 Down | ||
| AC'97 CODEC device | ADI1981A | ||
| Audio Jacks (Mic, Line-In, Line-Out, Spkr, MIDI/Game) | M,LI,LO,SO | ||
| Ethernet 10/100 LAN supplier | Realtek RTL8100(B) | ||
| Ethernet configuration | PCI, Down | ||
| IDE UDMA modes | ATA-66/100 | ||
| USB ports | 6 | ||
| USB Front/Back options | 2F+4B | ||
| Serial, Parallel, Floppy, PS2 Kbd and Mouse | 1S, 1P, 1F, PS2 K+M |

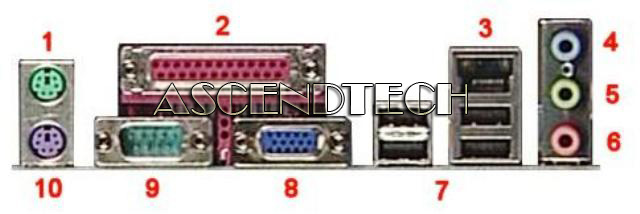

1 - Mouse
2 - Parallel
3 - LAN
4 - Line-in
5 - Line-Out
6 - Microphone
7 - USB
8 - VGA
9 - Serial
10 - Keyboard
