Emachines Imperial P4 i845 Motherboard

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.

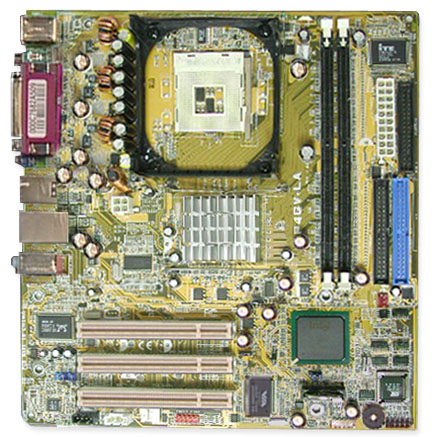

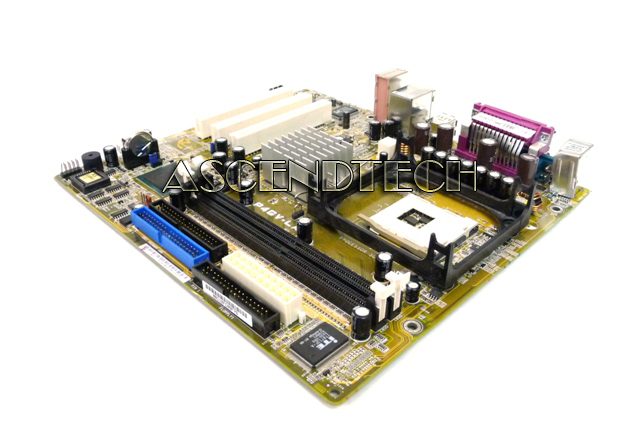

Emachines Imperial P4 I845 Motherboard. Model: Imperial Gv Glve
  Enlarge
Emachines Imperial P4 I845 Motherboard. Model: Imperial Gv Glve
Emachines Imperial P4 I845 Motherboard. Model: Imperial Gv Glve
Emachines Imperial P4 I845 Motherboard. Model: Imperial Gv Glve
*Note this image is for descriptional purposes.
Actual product may vary.
Item Code MB4HPIMPERIAL
Brand Emachines
Model Imperial GV GLVE
Category Intel P4 / Celeron 478-Pin Motherboards

Description

New Arrival! eMachines Imperial GV and GLVE Pentium 4 Intel 845GV Chipset Motherboard. Direct Replacement For eMachines T2542, T2596, T2642, T2682, T2692, T2792, T2882, W2646

Specifications:

OEM Model Number: 100614 100612 100979 312812

*Please Note: This Model Has HP / Compaq Bios And Can Be Used As A Direct Replacement In eMachines As Well As HP / Compaq PCs.

Manufacturer Name:  eMachines Imperial GV and Imperial GLVE
CPU/Processor:
  • Socket: 478
  • Supports Intel Pentium4 processor
Front-side bus (FSB):
  • 533/400 MHz
Chipset
  • Northbridge: Intel 845GV Graphics and Memory Controller Hub (GMCH)
  • Southbridge: Intel ICH4
BIOS features:
  • 4 Mb FWH EEPROM
  • Award BIOS with enhanced ACPI, DMI, Green, and PnP Features Plus
Form factor:
  • Micro-ATX form factor, 9.6 in x 8.6 in
Memory:
  • 2 x 184-pin DDR DIMM sockets support unbuffered non-ECC 2 GB 333/266 MHz DDR SDRAM memory modules
Expansion slots:
  • Three PCI
  • No AGP slot
Video graphics:
  • Integrated
Onboard audio or audio card:Controller: AC-97
  • Realtek ALC650/658 6-channel CODEC chipset
  • Dolby 5.1 audio support
  • Location: Integrated
Onboard LAN:
  • Realtek RTL8100C
  • 10/100 Mbps LAN controller

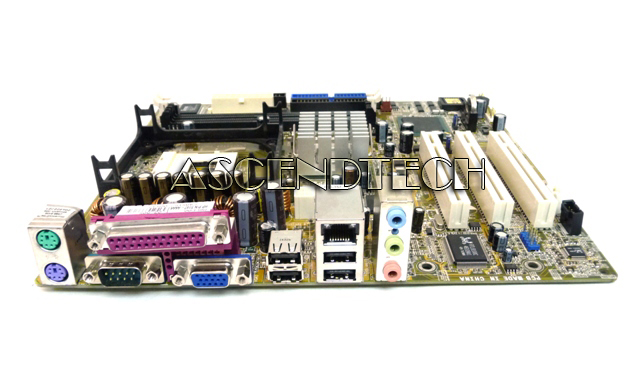

Back panel I/O:
  • One PS/2 mouse port
  • One PS/2 keyboard port
  • One VGA (monitor)
  • One Parallel
  • One serial port
  • Four USB (2.0)
  • One RJ45 networking port
  • Three audio connectors: line in, line out, and microphone
Internal connectors:
  • One Primary IDE connector
  • One Secondary IDE connector
  • One Floppy disk drive connector
  • One 20-pin ATX power connector
  • One 4-pin ATX 12V power connector
  • One USB 2.0 connector supports two additional USB 2.0 ports
  • One CPU fan connector
  • One Chassis fan connector
  • One CD in connector
  • One AUX connector
  • Front panel audio connector
  • System panel connector
