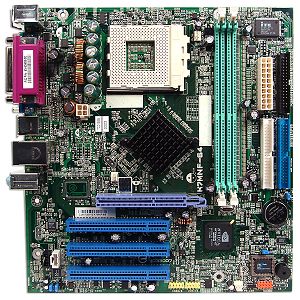

Emachines K7MNF-64 Socket A Motherboard

Emachines K7MNF-64/1.1A Motherboard 102732. Get the speed and power of this Emachines motherboard! It features the nVidia nForce 2 chipset and supports 266/333/400 MHz Front Side Bus (FSB). Two 184-pin DIMM sockets provides support up to 2 GB of DDR RAM. A Realtek ALC655 AC'97 audio codec, 10/100 Ethernet controller, and video are integrated.

Part Number: 102732

Compatible With Models: eMachines C3070 D3024 T3042 T3090 T3095 T3395 W3050 W3052 C3060 H3060 H3070

Specifications:

• Supported Processors:
• AMD Duron 1.6 - 1.8 GHz with 266 MHz FSB
• Athlon XP Palomino Core: 1500+ - 2100+ with 266 MHz FSB
• Athlon XP Thoroughbred Core: 1700+ - 2700+ with  266/333 MHz FSB
• Athlon XP Barton Core: 2500+ - 3200+ with 333/400 MHz FSB
• AMD Sempron 3000 + and up

• nVidia nForce 2 chipset
• Socket A
• mATX form factor (also called micro-ATX or uATX) w/20-pin ATX power connector and 4-pin ATX12V power connector
• 266/333/400 MHz Front Side Bus (FSB)
• Supports up to 2 GB RAM 266/333/400 (aka: PC2100/PC2700/PC3200)
• Two (2) IDE controllers
• One (1) floppy controller
• Integrated video
• Realtek ALC655 AC'97 audio codec
• Integrated 10/100 Ethernet controller

• Expansion Slots:
• One (1) 4x/8x AGP slot
• Three (3) PCI slots
• Two (2) 184-pin DIMM slots

• I/O Ports:
• Two (2) PS/2 ports
• One (1) 9-pin standard serial port
• One (1) 25-pin standard parallel port
• Eight (8) USB ports (four on back and four via header)
• One (1) RJ-45 standard Ethernet jack
• Line-in, microphone and line-out jacks
