Emachines L7VMM2 Motherboard 2124
We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.
Enlarge
*Note this image is for descriptional purposes.
Actual product may vary.
Actual product may vary.
Description

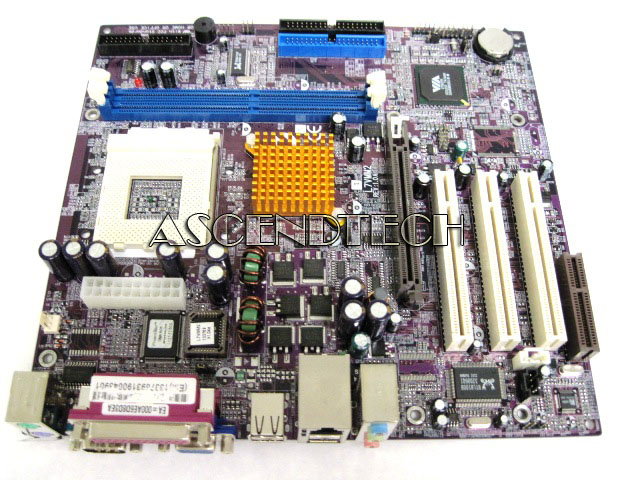

Emachines L7VMM2 / LV7MM2 Motherboard 2124. Emachines motherboard raises the bar of PC industry and deliver a full-value, high-performance solution for today's most demanding tasks.
Compatible With Emachines: T2200 C2280 T2341
Additional Part#: MBEM2124L7V2
Specifications:
| CPU | Socket 462 for AMD Athlon™ XP/ Athlon™/ Duron™ processor FSB 266/200 MHz |
| CHIPSET | VIA® KM266 & VT8235 North Bridge: VIA® KM266 South Bridge: VIA® VT8235 |
| GRAPHICS | Integrated S3 ProSavage8 2D/3D Graphics |
| MEMORY | 2 x 184-pin DDR DIMM socket support up to 2 GB Support DDR266/200 DDR SDRAM |
| EXPANSION SLOT | 1 x AGP 4X slot 3 x PCI slots 1 x CNR slot |
| STORAGE | Support by VIA® VT8235 4 x Ultra DMA133/100/66 devices |
| AUDIO | VIA® VT1612A 2-channel audio CODEC Compliant with AC'97 2.2 specification |
| LAN | VIA® VT6103 10/100 Mbps Fast Ethernet PHY |
| REAR PANEL I/O | 1 x PS/2 keyboard & PS/2 mouse connectors 4 x USB ports 1 x RJ45 LAN connector 1 x VGA port 1 x Parallel port (LPT1) 1 x Serial port (COM1) 1 x Audio port (Line-in, Line-out, Mic-in) |
| INTERNAL I/O CONNECTORS & HEADERS | 1 x 20-pin ATX Power Supply Connector 1 x FDD connector supports two 360K~2.88MB FDDs 2 x IDE connectors 1 x Speaker header 1 x USB 2.0 header support additional 2 USB ports 1 x USB card reader header 1 x Front panel switch/LED header 1 x Front panel audio header CD in header CPUFAN/CASFAN connectors |
| FORM FACTOR | Micro-ATX Size, 244mm*230mm |
