Emachines Luxemburg 915G Pro Motherboard

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.
Emachines Luxemburg 915G Pro Motherboard. Model: 4006154R
  Enlarge
*Note this image is for descriptional purposes.
Actual product may vary.
Item Code MB4EMAC4006154R
Brand Emachines
Model 4006154R
Category Intel Lga775 Motherboards

Description

Emachines Luxemburg 915G Pro Motherboard 4006154R. Emachines Luxemburg Motherboard Support for Intel Pentium 4 processor in an LGA775 socket with an 800 or 533 MHz system bus.

Part Numbers: 4006154R

Features:

  • Intel 915G chipset
  • Support for Intel Pentium® 4 processor in an LGA775 socket with an 800 or 533 MHz system bus
  • Four 240-pin DDR2 SDRAM dual inline memory module (DIMM) sockets
    • Support for DDR2 533 MHz or DDR2 400 MHz DIMMs
    • Support for up to 4 GB of system memory
  • Integrated Intel GMA900 onboard graphics subsystem
  • Integrated Intel High Definition audio
  • Integrated 10/100 Mbits/sec LAN
  • One PCI Express ×16 bus add-in card connector
  • One PCI Express ×1 bus add-in card connector
  • Two PCI Conventional bus add-in card connectors

Specifications:

Form FactorMicroATX: 9.60 × 9.60 inches (243.84 × 243.84 mm)
Processor SupportIntel® Pentium® 4 processor in an LGA775 socket with an 800 or 533 MHz system bus
ChipsetIntel 915G chipset, consisting of:
  • Intel 82915G graphics memory controller hub (GMCH) with Direct Media Interface (DMI) interconnect
  • Intel 82801FB I/O controller hub (ICH6) with DMI interconnect
  • 4 Mbit firmware hub (FWH)

    The MCH is a centralized controller for the system bus, the memory bus, the PCI Express bus, and the DMI interconnect. The ICH6 is a centralized controller for the board's I/O paths. The FWH provides the non-volatile storage of the BIOS.

    • Memory
  • Four 240-pin DDR2 SDRAM dual inline memory module (DIMM) sockets
  • Support for DDR2 533 MHz or DDR2 400 MHz DIMMs
  • Support for up to 4 GB of system memory
    • VideoIntel GMA900 onboard graphics subsystem
    AudioIntel High Definition Audio subsystem using the Realtek ALC860 audio codec. The audio subsystem supports the following features:
    • Advanced jack sense (front and rear panel) that enables the audio codec to recognize the device that is connected to an audio port. All jacks are capable of retasking according to user's definition, or can be automatically switched depending on the recognized device type.
    • Stereo input and output for all jacks
    • A signal-to-noise (S/N) ratio of 90 dB
    I/O ControlLPC Bus I/O controller
    Features:
    • One serial port
    • One parallel port with Extended Capabilities Port (ECP) and Enhanced Parallel Port (EPP) support
    • Serial IRQ interface compatible with serialized IRQ support for PCI Conventional bus systems
    • PS/2-style mouse and keyboard interfaces
    • Interface for one 1.44 MB or 2.88 MB floppy disk drive
    USB SupportUSB 2.0
    Peripheral Interfaces
  • Eight USB ports (four on rear I/O panel, four internal connections)
  • One serial port
  • One parallel port
  • One RJ-45 network port
  • PS/2 keyboard port
  • PS/2 mouse port
  • Four Serial ATA interfaces
  • One Parallel ATA IDE interface with UDMA 33, ATA-66/100 support
  • One floppy disk drive interface
    • LAN Support10/100 Mbits/sec LAN subsystem using the Intel 82562EZ platform LAN connect (PLC) device. Subsystem consists of the following:
    • Physical layer interface device.
    • RJ-45 LAN connector with integrated status LEDs
    • CSMA/CD protocol engine
    • LAN Connect Interface (LCI) between the 82562EZ and the ICH6
    • PCI Conventional bus power management
      • Supports ACPI technology
      • Supports LAN wake capabilities
    BIOS
  • Intel/AMI BIOS (resident in the 4 Mbit FWH)
  • Support for advanced configuration and power interface (ACPI), Plug and Play, and SMBIOS
    • Instantly Available PC Technology
  • Support for PCI Local Bus Specification Revision 2.2
  • Support for PCI Express Revision 1.0a
  • Suspend to RAM support
  • Wake on PCI, RS-232, front panel, PS/2 devices, and USB ports
    • Expansion Capabilities
  • Two PCI Conventional bus add-in card connectors (SMBus routed to PCI conventional bus connector 2)
  • One PCI Express ×1 bus add-in card connector
  • One PCI Express ×16 bus add-in card connector
    • Hardware Monitor Subsystem
  • Hardware monitoring and fan control ASIC
  • Voltage sense to detect out of range power supply voltages
  • Thermal sense to detect out of range thermal values
  • Three fan connectors
  • Three fan sense inputs used to monitor fan activity
  • Fan speed control

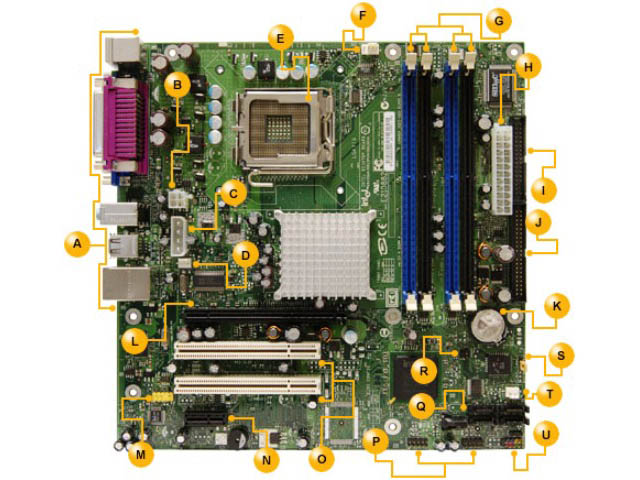

    • ARear panel portsLPCI Express x16 connector
    BProcessor core power connectorMFront panel audio connector
    CAlternate power connectorNPCI Express x1 connector
    DRear fan connectorOPCI conventional connectors
    EProcessor socketPFront panel USB connectors
    FCPU fan connectorQSATA connectors
    GMemory slotsRIntrusion switch connector
    HMain power connectorSBIOS configuration jumper
    IFloppy disk drive connectorTFront fan connector
    JParallel ATA IDE connectorUFront panel connector
    KBattery
