EMACHINES MCP61PM-GM AM2 MOTHERBOARD

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.
Emachines Mcp61pm-Gm Am2 Motherboard. Model: Mb.P3809.013 Mbp3809013

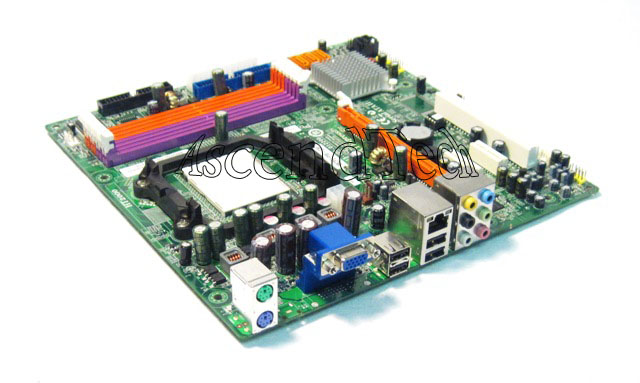

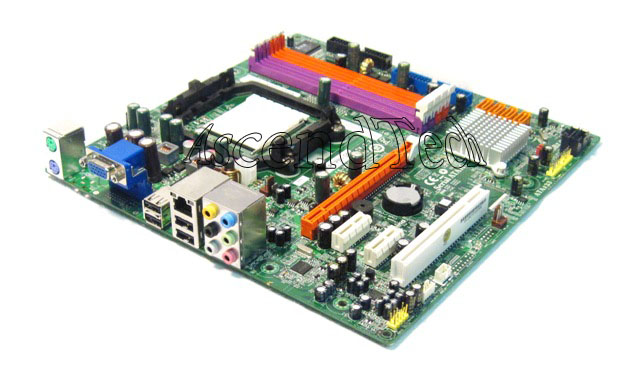

  Enlarge
*Note this image is for descriptional purposes.
Actual product may vary.
Item Code MB64EMACET11610
Brand Emachines
Model MB.P3809.013 MBP3809013
Category Amd Socket Am2+ Am3 Motherboards

Description

eMachines MCP61PM-GM Motherboard. eMachines motherboard raises the bar of PC industry and deliver a full-value, high-performance solution for today's most demanding tasks.


Compatible Part Numbers:  MB.P3809.013 MBP3809013 4006254
Application: eMachines; ET1161-01 (PT.NAD0Y.002), ET1161-05 (PT.NAD0Y.003), ET1161-07


Features:

  • Supports AMD AM2 Socket K8 Athlon 64 X2, Athlon 64, Athlon FX, and Sempron processors under 89 watt power consumption
  • FSB speed: 2000 MT/s
  • NVIDIA Chipset: MCP61P
  • Four 240-pin DDR2 DIMM slots
  • Four add-in card slots:
    • One PCI Express ×16
    • Two PCI Express ×1
    • One PCI conventional
  • Integrated NVIDIA GeForce 6150SE nForce 430 graphics
  • Integrated Realtek High Definition Audio
  • Integrated Realtek RTL8201N 10/100 Ethernet LAN
  • Four Serial ATA (SATA) II connectors with NCQ support
  • Four external USB 2.0 ports with two additional 5×2 internal headers and two 5×1 internal headers providing 10 possible USB 2.0 ports


Specifications:

Form FactormATX 244 mm × 244 mm
Processor SupportSupports AMD AM2 Socket K8 Athlon 64 X2, Athlon 64, Athlon FX, and Sempron processors under 89 watt power consumption
System Bus SupportUp to 2000 Mhz
Memory SupportFour DDR2 800/667/533/400 MHz SDRAM slots
Support up to 4 GB system memory
VideoIntegrated NVIDIA GeForce 6150SE nForce 430 graphics
AudioIntegrated Realtek High Definition Audio (ALC888S)
Network SupportIntegrated Realtek RTL8201N 10/100 MB LAN
Add-In Card Slots
  • One PCI Express ×16
  • Two PCI-E ×1
  • One PCI Conventional
    • Rear Panel I/O Ports
  • PS/2 keyboard port
  • PS/2 mouse port
  • Four USB 2.0 ports
  • One parallel port
  • One serial port
  • One VGA monitor port
  • One RJ-45 LAN port
  • Six audio jacks
    • Internal Headers
  • Two 2-port USB 2.0 headers (2 × 5)
  • Two 1-port USB 2.0 headers (1 × 5)
  • One Front panel audio header (mic / headphone)
  • One front panel header (2 × 5 supports power LED, power switch, hard drive LED, and reset switch)
  • One Floppy disk drive connector
  • One Primary IDE connector
  • Four Serial ATA II connectors (3 GB/s)
  • One Clear CMOS jumper
  • One Main Power Connector 24-pin (2 × 12)
  • One 12V CPU power connector 4-pin
  • One 3-pin CPU fan connector
  • One 3-pin system fan connector
