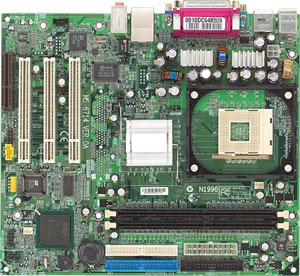

Emachines MS-6714 Motherboard 100995

Emachines MS-6714 Motherboard 100995. This Motherboard Supports Socket 478 for Intel® Pentium 4/Celeron processor.

Part Number: 100995

Specifications:

CPU
• Supports Socket 478 for Intel® Pentium 4/Celeron processor
• Supports 1.4 ~ 3.06GHz and up
Chipset
• Intel® 845GV Chipset
- Integrated 2D/3D graphic controller
- Support PC2100 (DDR266) technology
- Supports 100/133MHz FSB
- Supports 400/533MHz Intel NetBurst micro-architecture bus
• Intel® ICH4 Chipset
- AC'97 2.2 interace
- 6 USB 2.0/1.1 ports
- 2 channel Ultra ATA/100 Bus Master IDE controller
- SMBus 2.0 support
- Integrated LAN controller
Main Memory
• Supports two 184-pin DDR200/DDR266 DIMMs
• Supports Max. memory size of 2GB
• Support 2.5V DDR DIMM
• No support ECC Function
FSB
• Support 100/133MHz FSB
• Support 400/533MHz Intel NetBurst micro-architecture bus.
Slots
• Three PCI 2.2 32-bit Master bus slots (support 3.3v/5v)
• One CNR (Communication Network Riser) slot
BIOS
• The mainboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and expansion cards of the board automatically.
• The mainboard provides a Desktop Management Interface (DMI) function which records your mainboard specifications.
On-Board IDE
• An IDE controller integrated in ICH4
• Support PIO, Bus Master and Ultra ATA66/100 operationmodes
• Can connect up to four IDE devices
Audio
6 channels S/W audio codec Realtek ALC650
- Compliance w/AC97 v2.1 spec
- Meet PC2001 audio performance requirement
Video
Intel Extereme Graphic: Also knowns as DVMT(Dynamic Video Memory Technology), it will assign up to 64MB with total system memory 128MB or above.
Network
PCI local bus single-chip Fast Ethernet Controller, RealTek RTL8101L with external Base-T lan transformer
- Integrated Fast Ethernet MAC and PHY in one chip.
- Supports 10Mb/s and 100Mb/s auto-negotiation operation.
- Compliance with PCI v2.2.
- Compliance with PC99 and PC2001 standard.
- Supports Wake-On-LAN and remote wake-up.
- Supports ACPI power management.
On-Board Peripherals
- 1 floppy port supports 2 FDDs with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes
- 1 serial ports (COM A)
- 1 VGA port
- 1 parallel port
- 1 RJ-45 LAN jack
- 1 audio/game port
- 2 USB ports
Dimension
Micro-ATX Form Factor: 24.5 cm (L) x 21.4 cm (W).
