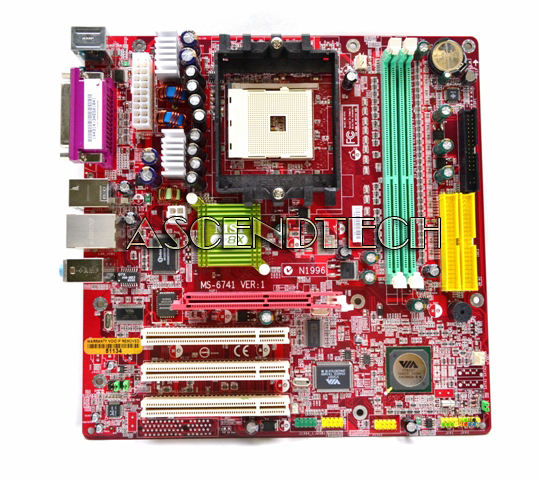

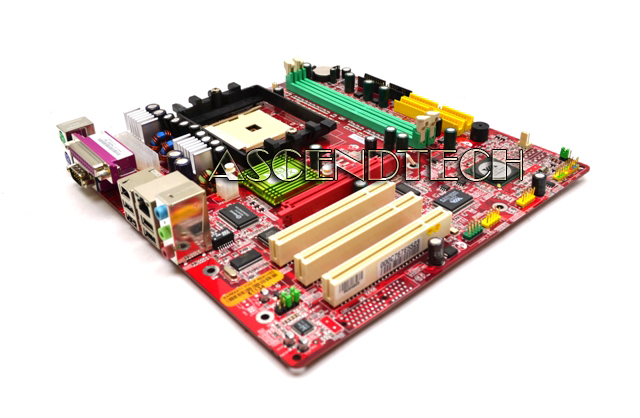

Emachines MS-6741 K8T800 Motherboard

Emachines MS-6741 Ver.1 mATX Motherboard features the VIA K8T800 chipset, Socket 754, and supports up to 2 GB DDR SDRAM. Audio is controlled by the Realtek ALC655 channel AC97 CODEC and Ethernet is controlled by the VIA VT82376 MAC + VIA 6103 Ethernet! Hard drive installation is easy with two SATA 150 MB/s controllers and two UDMA/66/100/133 IDE controllers. A floppy controller is also included. When you're ready to upgrade , this Emachines motherboard is equipped with a 4x/8x AGP slot, three PCI slots and a CNR slot! The MS-6741 supports 64-bit AMD Athlon 64 2800+, 3200+ and 3400 + and higher Socket 754 processors. Build your own performance machine and get this MSI MS-6741 mATX motherboard today!

Manufacturer: Emachines
Part Number: MS-6741

Specifications:

General Features:

VIA K8T800 chipset
mATX form factor
Socket 754
800/600/400/200 MHz Double Data Rate operation on both direction
Supports up to 2 GB DDR SDRAM (DDR266/333/400)
Realtek ALC655 channel AC97 CODEC
VIA VT82376 MAC + VIA 6103 Ethernet PHY
2 x SATA 150 MB/s controllers
Supports RAID 0, RAID 1
2 x UDMA/66/100/133 IDE controllers
1 x floppy controller

Supported Processors:

Supports 64-bit AMD Athlon 64 Socket 754 processors
Supports 2800+, 3200+ and 3400 + and higher

Expansion Slots:

1 x 4x/8x AGP slot
3 x PCI slots
1 x CNR slot
2 x DIMM sockets

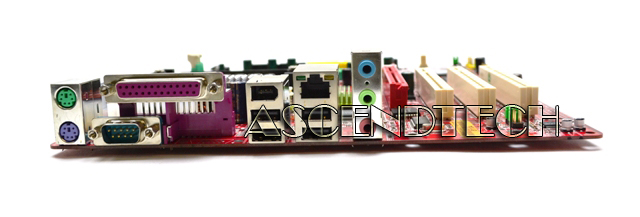

I/O Ports:

2 x PS/2 ports
1 x 9-pin serial port
1 x 25-pin parallel port
1 x IEEE 1394 6-pin via header
8 x USB 2.0 ports (four on back and four via header)
1 x RJ-45 Ethernet jack
Line in, microphone, and line-out jacks

BIOS Features:

Plug and Play BIOS
Supports DMI
