Emachines Seabreeze Motherboard 103292

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.
Emachines Seabreeze Motherboard 103292
  Enlarge
*Note this image is for descriptional purposes.
Actual product may vary.
Item Code MB4EMAC103292
Brand Emachines
Model 103292
Category Intel P4 / Celeron 478-Pin Motherboards
Condition Like New Grade A

Description

Emachines Seabreeze T1 Motherboard 103292. Featuring Intel i845 Chipset P4 400FSB / 533MHz FSB Support with Video Sound Lan onboard and 4 USB 2.0 ports. Desktop board supports a single Pentium 4 or Celeron processor with a system bus frequency of 400Mhz or 533 MHz.

Compatible with: T2742 T2796 T2798 T2824 T2885

Features:

  • Intel 845GL chipset
  • Intel Extreme Graphics2 controller
  • Support for Intel Pentium 4 Northwood 478-pin, 400/533-megahertz (MHz) Front Side Bus (FSB) processors
  • Support for Intel Celeron 478-pin, 400-MHz FSB processors
  • Support for up to 2 gigabytes (GB) of 333/266-MHz DDR SDRAM
  • 10/100 Ethernet LAN capability

Specifications:

Form FactormicroATX - 9.60 × 8.20 inches
Processor
  • Support for an Intel Pentium  4 processor in an mPGA478 socket with a 400 or 533MHz system bus
  • Support for an Intel Celeron processor in an mPGA478 socket with a 400MHz system bus
    • Memory
  • Two 184-pin DDR SDRAM Dual Inline Memory Module (DIMM) sockets
  • Support for single-sided or double-sided DIMMs (DDR333/266)
  • Support for up to 2 Gigabytes (GB) system memory
    Note: This motherboard is designed to support DIMMs based on 512-Mbit technology for a maximum capacity of 2 GB, but this technology has not been validated (current validation up to 1.0 GB) on this board.
    • ChipsetIntel 845GL Chipset consisting of:
    • Intel 82845GL Graphics and Memory Controller Hub (GMCH)
    • Intel 82801DB I/O Controller Hub (ICH4)
    • 4-Mbit Firmware Hub (FWH)
    Video
  • Intel Extreme Graphics controller
    • AudioAudio subsystem for AC'97 processing using the Analog Devices AD1981B codec
    I/O ControlSMSC LPC47M172 LPC Bus I/O controller
    USBSupport USB 2.0 devices
    Peripheral Interfaces
  • Up to six USB ports
  • One serial port
  • One parallel port
  • Two IDE interfaces with UDMA 33, ATA-66/100 support
  • Support for one floppy disk drive
  • PS/2 keyboard and mouse ports
  • Three fan connectors
    • BIOSIntel/AMI BIOS (resident in the 4-Mbit FWH)
    • Support for Advanced Configuration and Power Interface (ACPI), Plug and Play, and SMBIOS
    Instantly Available PC Technology
  • Support for PCI Local Bus Specifications Revisions 2.2
  • Suspend to RAM support
  • Wake on PCI, CNR, RS-232, front panel, PS/2 devices, and USB ports
    • Expansion CapabilitiesThree PCI bus add-in card connections (SMBus routed to PCI bus connector 2)

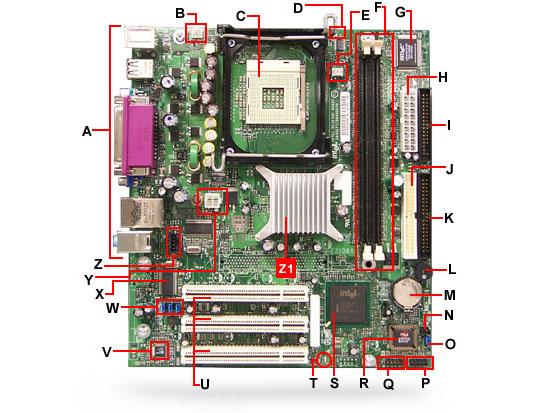

    ABack panel portsOBIOS configuration jumper
    BChassis fan connectorPFront panel USB connector
    CCPU socketQFront panel header
    DStandby power indicator LED RIntel 82802AB firmware hub
    ECPU fan headerSIntel 82801DB I/O ICH4
    FDIMM socketsTDiagnostic LED
    GSMSC I/O controllerUPCI slots
    HATX power connectorVADI SoundMax chipset
    IFloppy disk drive connectorWFront panel audio connector/jumper block
    JSecondary IDE connectorXIntel 82562ET LAN controller
    KPrimary IDE connectorYATX auxiliary power connector
    LSpeakerZATAPI CD/DVD-ROM audio in
    MBatteryZ1Intel 82845GL GMCH
    NIntrusion header
