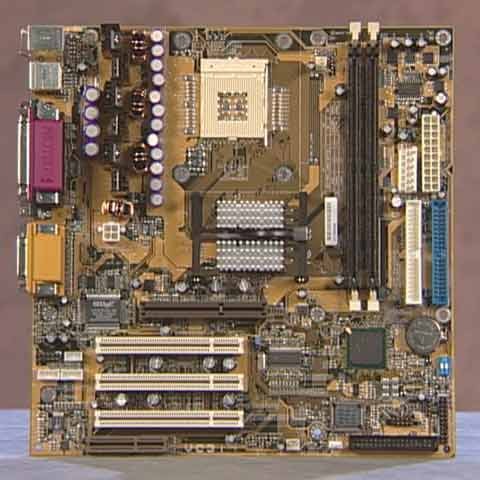

Emachines VC31 Motherboard 1438
We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.
Enlarge
*Note this image is for descriptional purposes.
Actual product may vary.
Actual product may vary.
Description
Emachines VC31 Motherboard 1438. Emachines raises the bar of PC industry and deliver a full-value, high-performance solution for today's most demanding tasks.
Specifications:
| Motherboard Name | Manufacturer name: VC-31 |
| System BIOS Supplier | Award |
| Form Factor | uATX |
| Processor Brand | Intel |
| Processor Socket Type | Socket-478 |
| Processor Family | P4-478 |
| Proc. Front Side Bus Freq. | 400Mhz |
| Chipset Name | Intel845 |
| Chipset "North Bridge" | 845 MCH |
| revision/stepping | A2 |
| Chipset "South Bridge" | VT82C686B rev CE |
| revision/stepping | -- |
| Super I/O | SMSC LPC47M192 |
| revision/stepping | -- |
| Flash BIOS Device | FWH 2Mbit |
| Memory Type | SDRAM |
| Memory Speed | PC133 |
| Memory Sockets | 2 DIMM |
| Maximum Memory | 2 GB |
| Graphics Supplier | Graphic Card |
| Graphics Configuration | Up |
| Onboard Graphics Memory | N/A |
| Graphics Connector (AGP) | AGP 4X |
| TV-Out Device | N/A |
| TV-Out Configuration | N/A |
| Audio | AC'97 Down |
| AC'97 CODEC Device | Realtek ALC201 |

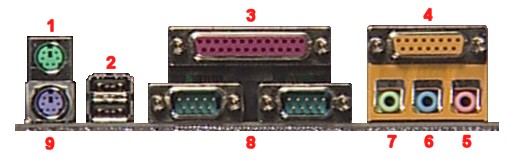

1 - Mouse
2 - USB
3 - Parallel
4 - Gameport
5 - Microphone
6 - Line-in
7 - Speaker out
8 - Serial ports
9 - Keyboard
