Emachines VG31 Motherboard 100058

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.
Emachines Vg31 Motherboard 100058. Model: 100058 Vg31

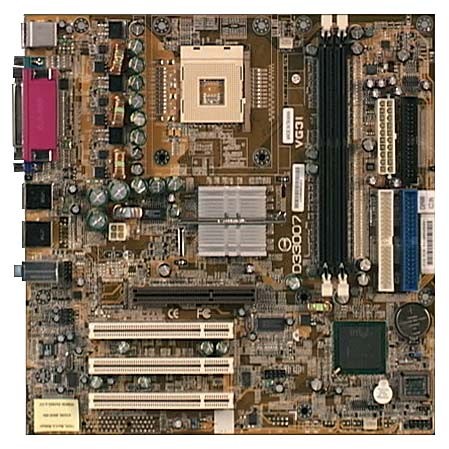

  Enlarge
*Note this image is for descriptional purposes.
Actual product may vary.
Item Code MB4EMAC100058
Brand Emachines
Model 100058 VG31
Category Intel P4 / Celeron 478-Pin Motherboards

Description

Emachines VG31 Motherboard 100058. Emachines raises the bar of PC industry and deliver a full-value, high-performance solution for today's most demanding tasks.

Related Part Numbers: 100058 2294

Specifications:

Motherboard description
  • Manufacturer's name - FIC VG31
Motherboard supplier FIC
System BIOS supplier FIC/Award
Form factor uATX
Processor brand Intel
Processor socket type mPGA478 (Socket-478)
Processor family Pentium® 4,
(Northwood, Willamette)
Willamette-Celeron
Maximum Processor core frequency <=2.66 GHz Northwood,
2.0 GHz Willamette
<= 1.9 GHz Celeron-Willamette
Processor front side bus frequency 400/533 MHz
Chipset name 845G
Chipset North Bridge and revision 845G
Chipset South Bridge and revision ICH4
Super I/O SMSC LPC47M192
Flash BIOS device 4Mb Flash
Memory type DDR
Memory speed PC2100/PC1600
Memory sockets 2 DIMM
Maximum memory 2 GB
256Mbit memory support Yes
Graphics supplier Intel
Graphics configuration Down, In Chipset
Onboard graphics memory UMA, up to 48 MB
Graphics connector (AGP) AGP 4X
TV-out device none
TV-out configuration none
Audio configuration AC'97 Down
AC'97 CODEC device Realtek ALC201
CD-in jack 2
Internal Speaker-Out/Line-Out/Headphone-Out Header Speaker out header
Ethernet 10/100 LAN supplier Realtek RTL8100(B)L
Ethernet configuration Down
IDE UDMA modes ATA-100/66/33
Expansion slots (AGP/PCI/Exten) AGP, 3 PCI
USB specification USB 2.0
USB ports (front) 2
USB ports (rear) 4
Serial, Parallel, Floppy, PS2 Keyboard and Mouse 1S, 1P, 1F, PS2 K+M

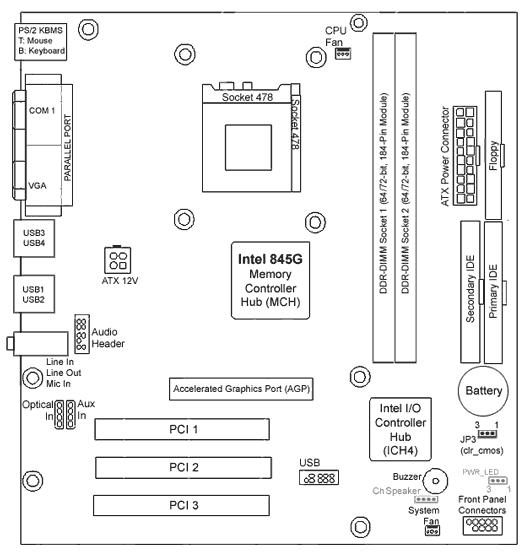

1 - Mouse
2 - Parallel
3 - Line-in
4 - Line-out
5 - Microphone
6 - USB
7 - VGA
8 - Serial
9 - Keyboard
