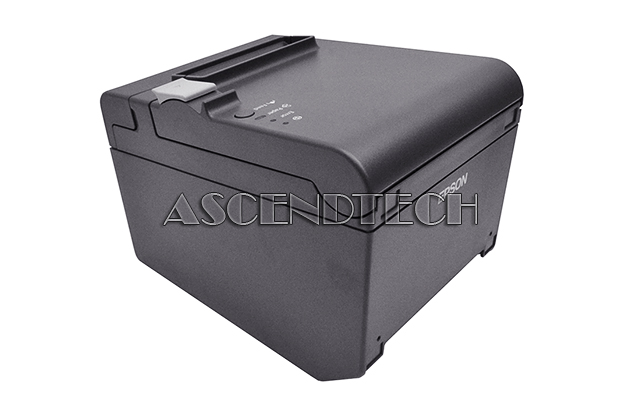

Epson TM-T20 POS Thermal Receipt Printer

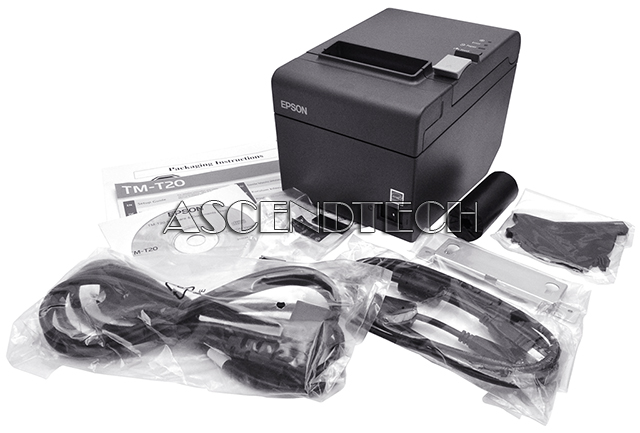

Seiko Epson M249A ReadyPrint T20 USB Serial Interface POS Thermal Receipt Printer TM-T20. The TM-T20 comes with everything you need in one box for quick setup and installation. The box includes manuals, drivers, utilities, cables, integrated power supply and easy-to-use software tools to speed programming.

Epson Model Number: M249A
Epson Part Number: TM-T20







Specifications:

Print method Thermal line printing
Print speed Max. 150mm/sec (5.91 in/sec)
Print font:
- Font 9 x 17 and 12 x 24 dots/character (W x H)
- Column capacity Standard:
    - Paper width 80mm: 48/64; Paper width 58mm: 35/46
    - 42 Column Mode: Paper width 80mm: 42/60; Paper width 58mm: 42/31
- Character size 0.88 × 2.13 and 1.25 × 3mm (W x H)
- Character set 95 Alphanumeric, 18 set International, 128 × 43 Graphic. Barcode: UPC-A, UPC-E, JAN13 (EAN13), JAN8 (EAN), CODE39, ITF, CODABAR (NW-7), CODE93, CODE128, GS1-128, GS1 DataBar.
- Two dimensional code PDF417, QRCode, MaxiCode, 2D GS1 DataBar, Composite Symbology
- Characters per inch 22.6 and 16.9 cpi
Paper dimensions:
- 80mm: 3.13" ± 0.02" x 3.27" diameter (79.5 ± 0.5(W) x 83mm)
- 58mm: 2.26" ± 0.02" x 3.27" diameter (57.5 ± 0.5(W) x 83mm)
Reliability:
- MTBF 360,000 hours
- MCBF 60,000,000 lines
- Autocutter 1.5 million cuts
