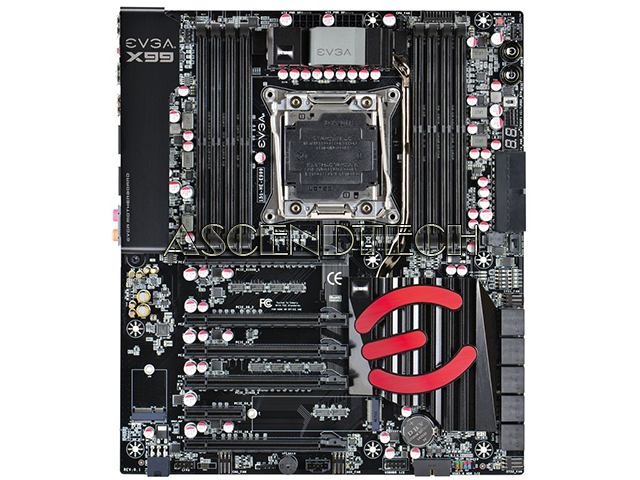

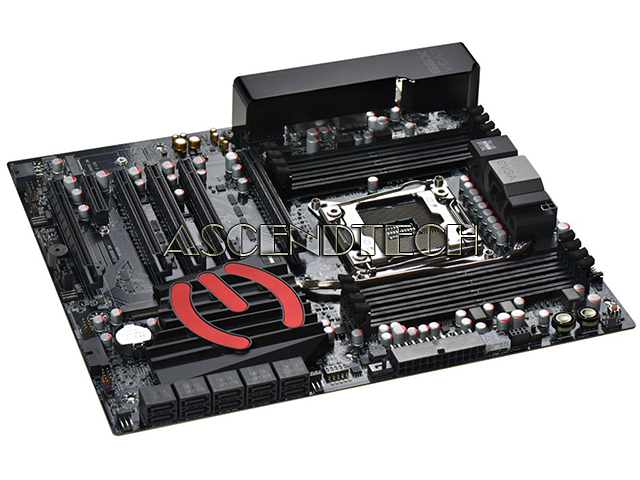

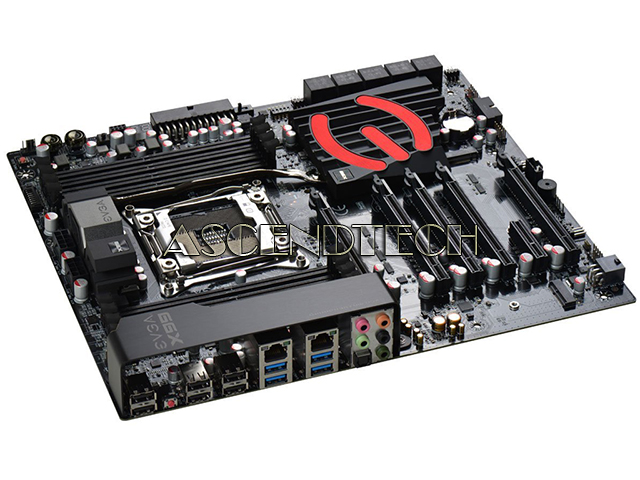

EVGA X99 Classified LGA2011-V3 DDR4 EATX

EVGA X99 Classified (151-HE-E999-KR) LGA 2011-V3 Intel X99 DDR4 SATA 6GB/s USB 3.0 Extended ATX EATX Motherboard. The EVGA X99 Classified was engineered from the ground up to be the best overclocking motherboard on the planet. It all starts with power. Dual 8 PIN CPU power inputs provide up to 600W of dedicated power for the CPU, along with a highly efficient 10-phase Digital VRM providing the cleanest power possible to the CPU possible, fed through a CPU socket that has 1.5X the amount of gold content. A total of 8 DIMM slots support up to 128GB of DDR4 memory, and a 4 layer memory T-routing design allows for extreme memory speeds such as 3000MHz+ (OC). The PCI-E layout is optimized for improved lane distribution and better performance, and with native support for NVIDIA 4-way SLI, this is the ultimate platform for the enthusiast.

Features:

High Gold Content for CPU Socket
Higher volume of precious metal (Gold) used in the sockets greatly improves the conductivity and produces a cleaner signal due to less resistance/impedance. The X99 Classified features 300% more gold than the standard X99 Socket.

PCI-E Disable Switches
No need to remove a card when testing, instead you can disable the slot with a dip-switch, this can greatly reduce the time spent in troubleshooting , as you do not need to disassemble anything to isolate PCI-E components.

4 Way SLI Support + PHYSX
The X99 FTW is rated for 4 Way SLI to handle the most demanding video loads.

90 Degree 24-Pin Connector
Not having the main power for the board facing perpendicular makes it easy to get the cables routed well and out of the way.

Dual BIOS Support
The X99 Classified is not just focused on the upper end of extreme builds, but also with the smaller components as well. As such Creative Core3D onboard sound, also dual integrated INTEL NIC's so you have the best quality network connection right out of the box.

Triple BIOS Support
The X99 Classified comes preloaded with triple BIOS for ultimate protection. Whether you pushed a brink OC until; it is not bootable, or you suffered a power outage during a BIOS flash, you can always switch to another BIOS, boot as usual, then if desired, hot-flash the faulted BIOS.

10 Phase PWM
A 10 Phase PWM helps to ensure that the power reaching the processor is clean and stable.

M.2 Support
The X99 Classified supports the newest slot architecture with support for many device types across 2 slots, Slot E optimized for WLAN, wifi, and Bluetooth and the Slot M optimized for SSD devices.

UEFI
These motherboards also feature EVGA's new GUI BIOS that focuses on the best overclocking support, functionality, and are straight and to the point, the way a modern BIOS should be.

Specifications:
