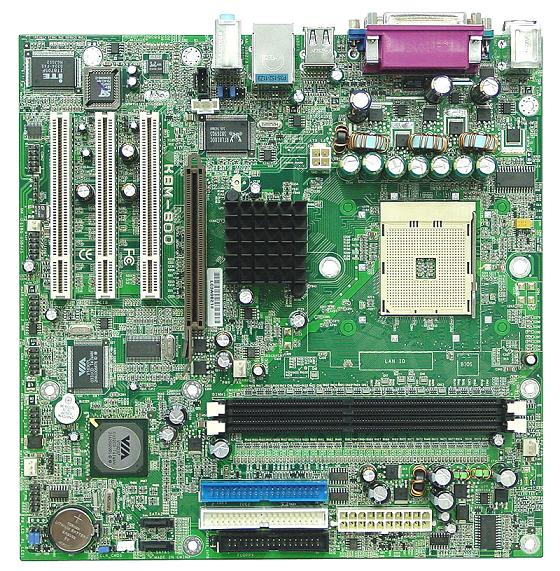

FIC K8M S.754 DDR ATHLON 64 MOTHERBOARD

FIC K8M Socket 754 AGP 8X DDR400 SATA RAID Motherboard With OnBoard Video / Audio & LAN For AMD Athlon 64 / Sempron Processors. The K8M supports the VIA K8M chipset with integrated graphics and AGP 4X/8X, providing a revolutionary graphics experience. Also included on the K8M is dual-channel DDR400 up to 2GB, 800MHz FSB, 2 USB 2.0, as well as 3 PCI and 1 AGP expansion slots. As a mATX motherboard, it is perfect for distributors and system integrators looking for an aggressively priced all-in-one motherboard. This motherboard is made by FIC OEM featuring eMachines / Gateway bios.

Specifications:

Download Latest Drivers Here

Unit Type & Packaging: OEM Motherboard as shown below. I/O Shield not included!
Processor: Athlon 64 clawhammer (K8) up to 3600+
Chipset: K8M / VIA 8237
Memory: 2 DIMM slot / Support DDR 266/333/400 DDR SDRAM / Max. Cap. Is 1 GB for each channel / 2GB total
Video: 1 x AGP 4X / 8X slot
Audio: AC' 97 codec 5.1 Channel / Realtek ALC655
Onboard Lan: Realtek 8100C Ethernet
Expand Slots: 1 x AGP / 3 x PCI
Onboard IO: 1 Parallel Port / 2 PS2 Connectors / 1 x COM port / 1 x VGA connector / 1 (1 x RJ45 + 2 x USB 2.0) / 1 x Audio connectors : Mic-In, Line-In, Line-Out / 1 x (2 x USB 2.0)
Onboard IDE: IDE Connectors Support Ultra DMA ATA 66/100/133
System Bios: ACPI, APM, DMI, SMBIOS, PnP, USB, PC99, PC2001, Y2K Compliant
USB: 2.0 Total 8 USB2.0 ports
Form Factor: mATX 9.6" x 9.6"
Serial ATA: VIA 8237, 2 ports (RAID 0,1,0+1)
