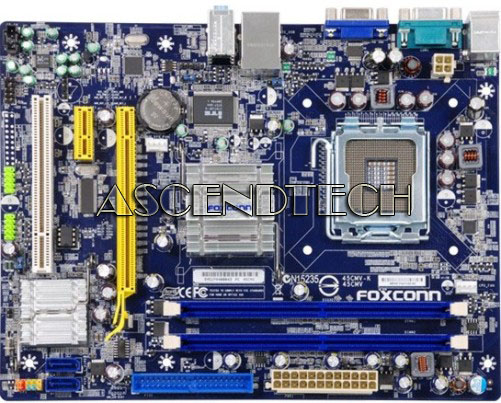

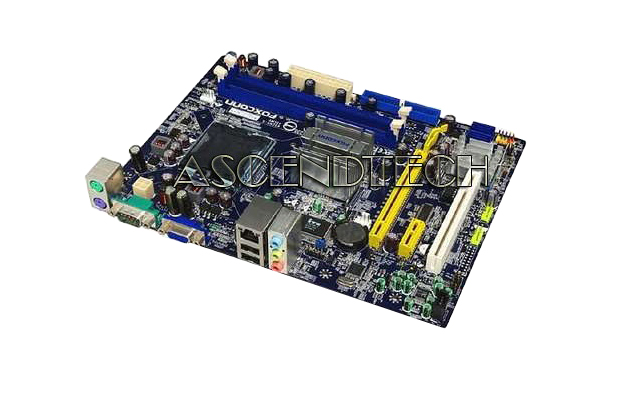

FOXCONN 45CMV LGA775 INTEL 945GC DDR2 MB

Foxconn 45CMV LGA 775 Intel 945GC Micro ATX Intel Motherboard. The 45CMV has been specially engineered for low power (sub-65W) Intel Core 2 Duo and 45nm CPUs. With 1333MHz FSB support (via OC), and a dedicated DirectX 9.0 graphics core onboard, this motherboard is ideal for low-cost solutions using the latest Intel processor technologies.





Features:

• Intel Core 2 Duo, Pentium Dual-Core, Celeron and 45nm (wolfdale) processors, Socket T (LGA775)
• 1333(oc)/1066/800/533 MHz(FSB)
• Dual channel DDR2 667/533/400 x 2 DIMMs, Max. 4GB
• 1 *  PCIe x16, 1 * PCIe x1, 1 * PCI
• ATA x 1, SATA II x 2
• 5.1 channel Audio, Realtek ALC662
• 10/100M LAN, Realtek RTL8101E
• 6 USB 2.0 ports

Specifications:

Processor: Intel Core 2 Duo, Pentium Dual-Core, Celeron and 45nm (wolfdale) processors, Socket T (LGA775)
Chipset: Intel 945GC + ICH7
Front Side Bus: 1333(oc)/1066/800/533 MHz FSB
Memory: Dual channel DDR2 667/533/400 x 2 DIMMs, Max. 4GB
VGA on Die: Integrated
Expansion Slots: 1 * PCIe x16, 1 * PCIe x1, 1 * PCI
IDE: ATA 100 x 1
Serial ATA(SATA)/RAID: SATAII x 2
Audio: 5.1 HD audio by Realtek® ALC662
LAN: 10/100M LAN by Realtek® RTL8101E

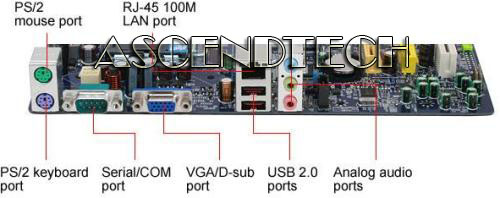

Back Panel I/O Ports:
1 x Audio jack supports 3 jacks
1 x PS/2 keyboard port
1 x PS/2 mouse port
2 x USB 2.0 ports
1 x RJ45 LAN port
1 x Serial port
1 x VGA port
Internal I/O Connectors:
2 x USB 2.0 headers support additional 4 ports
1 x ATX 24-Pin power connector
1 x 4-pin ATX 12V power connector
2 x CPU / System FAN connectors
1 x Front panel connector
2 x Serial ATAII connectors
2 x USB power headers
1 x Front Audio Header
1 x CD-in connector
1 x TPM header (reserved)
1 x Intrusion Alarm header
1 x Buzzer (reserved)
1 x Speaker
1 x IRDA
BIOS Features: 8Mb flash EEPROM w/ LAN boot PnP, ACPI, WfM, DMI
Standards/Manageability: PCI 2.3, USB2.0, DMI 2.5
Form Factor Micro: ATX ( 9.6” x 7.2”)
