Foxconn 45CTD DDR2 Desktop Motherboard
We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.
Item Code MB4FOX45CTD330D
Brand Foxconn
Model 45CTD
Category Intel Lga775 Motherboards
Condition Like New Grade A
Condition Description Please note, this motherboard comes with I/O Shield only! No cables, or any other accessories!
Description

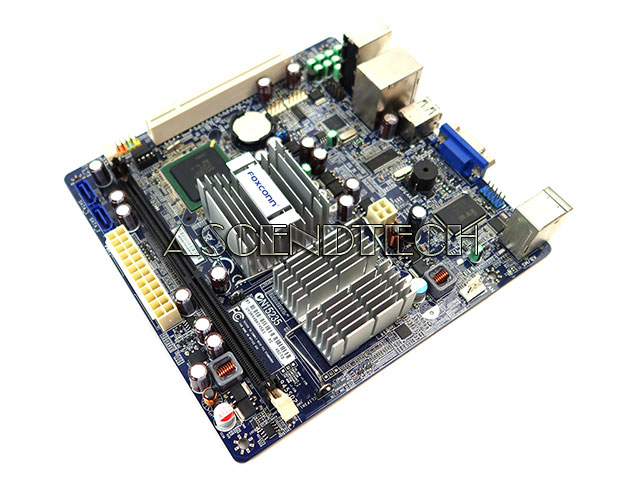

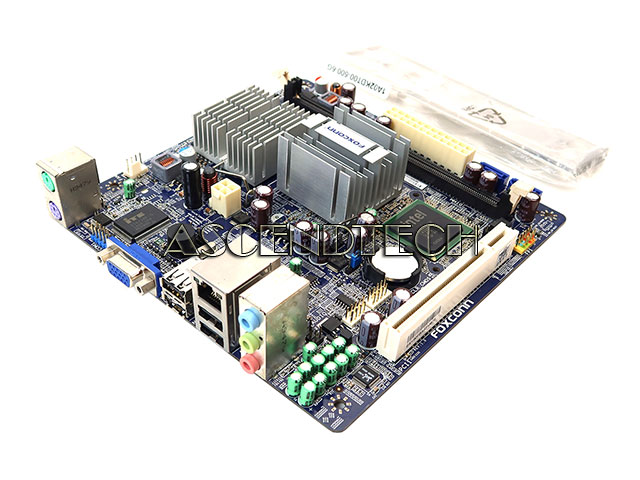

Foxconn 45CTD Intel Atom 330 1.6GHz Processor DDR2 VGA SATA 3GB/s Mini-ITX Desktop Motherboard.
Chipset: Intel 945GC
Socket: Intel BGA437
Processor/CPU: Intel Atom 330
Processor/CPU Speed: 1.60GHz
Number of Cores: 2
Max Supported Memory: 2GB
Number of Memory Slots: 1
Memory Type: DDR2 SDRAM
Storage Interface: SATA 3Gb/s
Network/Communications: Realtek RTL8101E 10/100M
Audio: Realtek ALC662
Connectors: 1x ATX 24-pin power connector, 1x 4-pin System fan connector, 1x COM1 header, 1x Buzzer, 2x USB 2.0 connectors supports additional 4 ports, 2x Serial ATAII connectors, 1x Front panel connector, 1x Front Audio header
Input/Output Ports: 1x PS/2 keyboard port, 1x PS/2 mouse port, 1x RJ45 LAN port, 1x Audio jack supports 3 jacks, 4x USB 2.0 ports, 1x VGA port
Expansion Slots: 1x PCI Express, 2x SATA 3Gb/s
Form Factor: Mini-ITX
Type: Desktop Motherboard
Supported Operating System: Windows XP
