Foxconn 6100K8MB-RS SKT 754 Motherboard

Foxconn 6100K8MB-RS Socket 754 ATX Motherboard. Foxconn meets the current and future demands of high-performance, power embedded computing, making it ideal for communications, transaction terminal, interactive client, industrial automation applications, as well as for standard home use.

Manufacturer: Foxconn
Part Number: 6100K8MB-RS

Specifications:

Processor
Socket 754 for AMD Athlon™ 64 / Sempron™ processors

Chipset
GeForce 6100+nForce 410

Front Side Bus
Up to 1600 MT/s HyperTransport™

Memory
Single channel DDR400 x2, support up to 2GB

VGA on Die
Integrated

Expansion Slots
1 x PCIe x16, 3 x PCI slots
IDE ATA133 x 2
Serial ATA(SATA)/RAID Supports 2 Serial ATAII devices, RAID 0, RAID 1

Audio
5.1 channel (Realtek ALC653)

LAN
RTL8201BL; 10/100 PHY

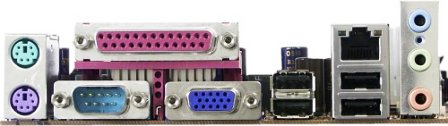

Back Panel I/O Ports
1 x PS/2 Keyboard
1 set 5.1 channel Audio Jack (3 jacks)
1 x PS/2 Mouse
1 x Parallel
1 x VGA
1 x RJ45
4 x USB 2.0
1 x COM

Internal I/O Connectors
CD IN x 1
COM2 header x1
2 x USB 2.0 headers, support 4 ports
S/PDIF out header x1
IrDA header x1
AUX IN x1
Speaker x 1
Buzzer x 1 (reserve)
Front panel x 1
Front audio header x 1

BIOS Features
LPC 4MB, SuperUtilities

Support CD
Chipset Drivers, DirectX 9.0, VGA Driver, USB 2.0 Driver, Audio Driver, Network Driver, Adobe Reader 6.0, SuperUtilities, Norton Internet Security, User Manual, RAID Manual

Standards/Manageability
USB2.0, WfM 2.0, DMI 2.0, WOL by PME, LPC 1.1 Interface, PC2001

Form Factor
Micro ATX (9.6” x 8.6”)
