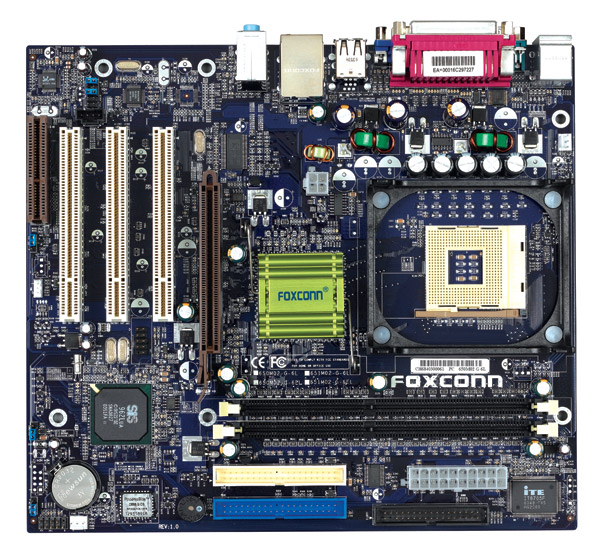

FOXCONN 650M02-G-6L S.478 AGP DDR400 MB

Foxconn 650M02-G-6L Socket 478 Motherboard. Foxconn’s 650M02 series motherboard offers superior performance, reliability and quality, at a reasonable price. This motherboard adopts the advanced SiS 650GX / 962 chipsets, providing users a computer platform with a high integration-compatibility-performance price ratio.


Features:

• Supports compatible Intel® Socket 478 processors
• FSB 400 MHz
• Single Channel 266MHz DDR DRAM x 2 DIMMs
• 1 x AGP 4X, 3 x PCI, 1 x CNR
• 2 x ATA/133
• 5.1 channel AC97 (Realtek)
• Integrated Fast Ethernet (10/100) MAC + PHY (Realtek)
• 6 USB 2.0 ports

Specifications:

Processor: Supports compatible Intel® Socket 478 processors
Chipset: SiS650GX + 962
Front Side Bus: 400MHz
Memory: Single Channel 266MHz DDR DRAM x 2 DIMMs, max 2GB
VGA on Die: Integrated SiS graphics
Expansion Slots: 1 x AGP 4X, 3 x PCI, 1 x CNR
IDE: 2 x ATA/133
Audio: 5.1 channel AC97 (Realtek)
LAN: Integrated Fast Ethernet (10/100) MAC + PHY (Realtek)
Back Panel I/O Ports:
1 x PS/2 keyboard
1 x PS/2 mouse
1 x RJ45 (LAN)
4 x USB 2.0
1 x line-in/line-out/mic (audio)
1 x parallel (SPP/ECP/EPP)
1 x COM (16550-compatible UART)
1 x VGA (integrated video)
Internal I/O Connectors:
1 x floppy disk drive
1 x S/PDIF (coax out) header
1 x USB 2-port header, ver. 2.0
BIOS Features: 2Mb flash EEPROM w/ PnP, ACPI, WfM, DMI 2.0,
Form Factor: microATX, 9.6'' x 9.6''
