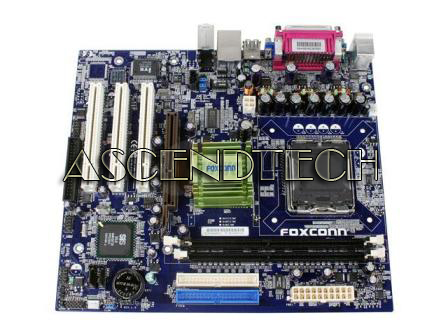

Foxconn 661FX7MF-S LGA775 Motherboard

Foxconn 661FX7MF-S LGA775 Micro ATX Motherboard. Foxconn meets the current and future demands of high-performance, power embedded computing, making it ideal for communications, transaction terminal, interactive client, industrial automation applications, as well as for standard home use.

Manufacturer: Foxconn
Part Number: 661FX7MF-S

Specifications:

Product Type
Motherboard

Form Factor
Micro ATX

Width
24.4 cm

Depth
24.4 cm

CPU Type
Celeron D, Pentium 4

CPU Socket Type
LGA775 Socket

Chipset Type
SiSM661FX

Data Bus Speed
800 MHz

Storage Controllers
ATA-133, Serial ATA-150 (RAID)

Processor
Installed Qty (Max Supported) 0 ( 1 )

Memory
RAM Installed / Max
0 MB / 2 GB (max)

Supported RAM Speed
PC2100, PC2700, PC3200

Video
Graphics Controller SiS Mirage

Audio
Audio Output Type Sound card

Sound Output Mode 5.1 channel surround
Compliant Standards AC '97

Telecom / Networking
Modem Type None

Networking Type
Network adapter

Networking Network adapter -
Ethernet, Fast Ethernet

Features
Sleep / Wake Up Features suspend to RAM (STR), wake on LAN (WOL)

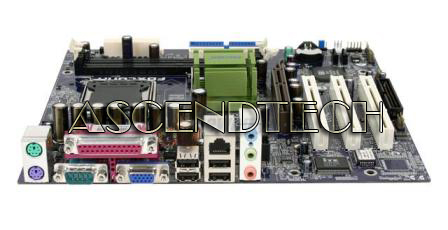

Expansion / Connectivity Interfaces
1 x audio - line-in - mini-phone stereo 3.5 mm
1 x audio - line-out - mini-phone stereo 3.5 mm
1 x display / video - VGA - 15 pin HD D-Sub (HD-15)
1 x keyboard - generic - 6 pin mini-DIN (PS/2 style)
1 x microphone - input - mini-phone 3.5 mm
1 x mouse - generic - 6 pin mini-DIN (PS/2 style)
1 x network - Ethernet 10Base-T/100Base-TX - RJ-45
1 x parallel - IEEE 1284 (EPP/ECP) - 25 pin D-Sub (DB-25)
1 x serial - RS-232 - 9 pin D-Sub (DB-9)
1 x storage - floppy interface - 34 pin IDC
2 x storage - ATA-133 - 40 pin IDC
2 x storage - Serial ATA-150 - 7 pin Serial ATA
4 x Hi-Speed USB - 4 pin USB Type A
