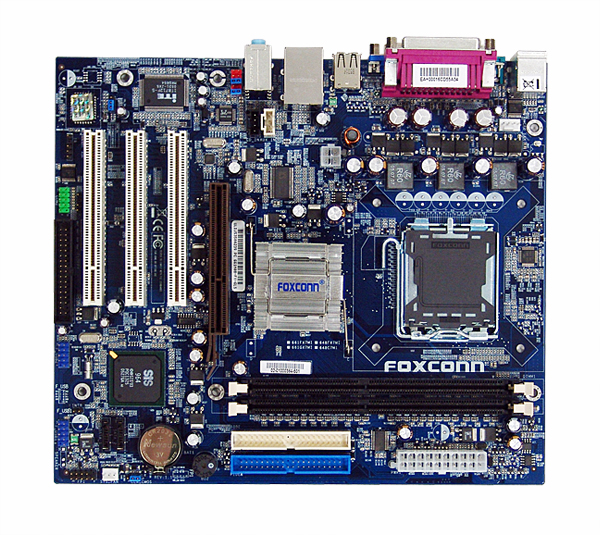

FOXCONN 661FX7MI-S LGA775 DDR400 AGP 8X

Foxconn 661FX7MI-S Intel Socket LGA775 Motherboard. Foxconn’s 661FX7MI-S motherboard offers superior performance, reliability and quality, at a reasonable price. This motherboard adopts the advanced SiS 661FX + 964 chipset, providing users a computer platform with a high integration-compatibility-performance price ratio.


Features:

• Supports compatible Intel® Socket 775 processors
• 800 / 533 MHz FSB
• Single Channel 400MHz / 333MHz / 266MHz DDR SDRAM, 2 x DIIMs
• 5.1 channel audio, AC’97 (Realtek)
• 10/100 Mbps LAN (Broadcom)
• 8 x USB 2.0 ports


Specifications:

Processor: Supports compatible Intel® Socket 775 processors
Chipset: SiS 661FX + 964
Front Side Bus: 800 MHz
Memory: Support Max. 2GB Single Channel 400MHz / 333MHz / 266MHz DDR SDRAM
VGA on Die: Integrated SiS Mirage™ Graphics
Expansion Slots: 1x AGP8X, 3 x PCI slots
IDE: Support Ultra ATA 133/100/66 x 2 drives
Serial ATA(SATA)/RAID: 2 x Serial ATA
Audio: Realtek ALC653 controller, 5.1 channel audio (AC’97); S/PDIF-out interface
LAN: Broadcom AC131KML 10 / 100 Ethernet LAN
Back Panel I/O Ports:
1 x PS/2 keyboard
4 x USB 2.0/1.1 ports
1 x PS/2 mouse
1 x RJ45 port
1 x parallel port
1 x line-in / line-out / mic port
1 x COM port
1 x VGA
Internal I/O Connectors:
2 x USB 2.0 headers; support 4 ports
1 x S/PDIF out header
1 x CD-IN header
1 x COM2 header
1 x IrDA header
1 x speaker header (reserve only)
1 x front audio header
1 x buzzer
1 x intruder
1 x AUX IN
BIOS Features: 4Mb flash ROM, PnP1.0a, DMI 2.0, WfM 2.0, SMBIOS 2.3, ACPI 1.0b
Standards/Manageability: PCI 2.3, USB2.0; WfM 2.0, DMI 2.0
Special Features: STR (Suspend-to-RAM), STD (Suspend-to-Disk),SuperSpeed, SuperBoot, SuperBIOS-Protect, SuperRecovery, SuperStep, SuperLogo, SuperUpdate
Form Factor: Micro ATX (9.6" x 8.3")
