FOXCONN 661MXPLUS SOCKET 478 DDR AGP 8X

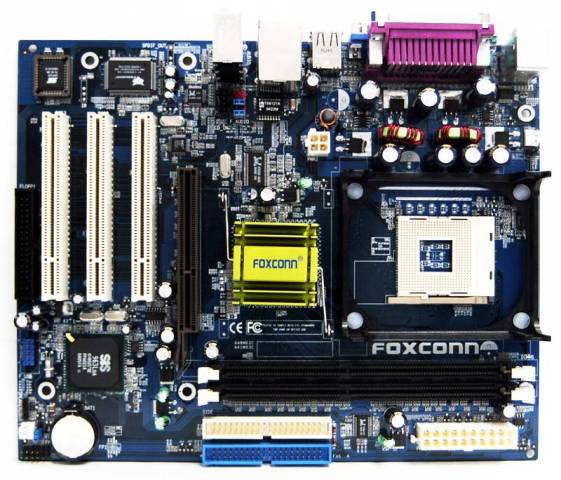

Foxconn 661MXPlus Socket 478 Motherboard. Foxconn’s 661MXPlus series motherboard offers superior performance, reliability and quality, at a reasonable price. This motherboard adopts the advanced SiS 661GX / 964L chipsets, providing users a computer platform with a high integration-compatibility-performance price ratio.


Features:

• Intel® Pentium 4 processors, Socket 478
• 533 / 400 MHz FSB
• Single Channel 400MHz / 333MHz / 266MHz DDR SDRAM x 2 DIMMs
• 1 x AGP 8X , 3 x PCI
• 5.1 channel audio, AC’97 (Realtek)
• 10 / 100 Mbps LAN (IC Plus)
• 8 x USB 2.0 ports


Specifications:

Processor: Supports compatible Intel® Socket 478 processors.
Chipset: SiS661GX + 964L
Front Side Bus: Support FSB 533/400Mhz
Memory: Single channel DDR266/333/400 x2, Max. 2GB Memory
VGA on Die: Integrated SiS Mirage™ Graphics
Expansion Slots: 1 x AGP 8X slot; 3 x PCI slots
IDE: Support 2x PATA 133/100/66 Drives
Audio: Realtek ALC655, 5.1 channel audio (AC’97); S/PDIF-out interface (Reserve)
LAN: IC Plus IP101 10 / 100 Mbps LAN
Back Panel I/O Ports:
1 x VGA
4 x USB 2.0
1 x line-in / line-out / mic port
1 x PS/2 keyboard
1 x parallel
1 x PS/2 mouse
1 x COM
1 x RJ45
Internal I/O Connectors:
2 x USB 2.0 headers; support 4 ports
1 x CD-IN connector
1 x S/PDIF-out header (Reserve)
BIOS Features: 2Mb, Support SuperBIOS, SuperBoot, SuperBIOS-Protect
Form Factor: Micro ATX (9.6" x 8.0")

Click here for Foxconn  661MXPlus Latest Available Drivers

CPU Support List:
