Foxconn 671M mATX Intel Motherboard

Foxconn 671M LGA 775 SiS 671 Micro ATX Intel Motherboard. Foxconn meets the current and future demands of high-performance, power embedded computing, making it ideal for communications, transaction terminal, interactive client, industrial automation applications, as well as for standard home use.

Manufacturer: Foxcon
Part Number: 671M

Specifications:

Processor
Intel® Core™2 Duo, Pentium® Dual-Core, Pentium® D, Pentium® 4, Celeron® D processors, Socket T (LGA775)
Chipset
SIS® 671 + 968
Front Side Bus
800 / 533 MHz FSB
Memory
DDRII 667 / 533 / 400 x 2 DIMMs, Max. 4GB
VGA on Die
Integrated
Expansion Slots
1 x PCIe x16
1 x PCIe x1
2 x PCI
IDE
ATA 133 x 1
Serial ATA(SATA)/RAID
SATAII x 2 with
RAID 0, 1, JBOD
Audio
5.1 channel HD Audio, Realtek® ALC883
LAN
10/100M LAN, Realtek® RTL8100C
IEEE1394
N/A

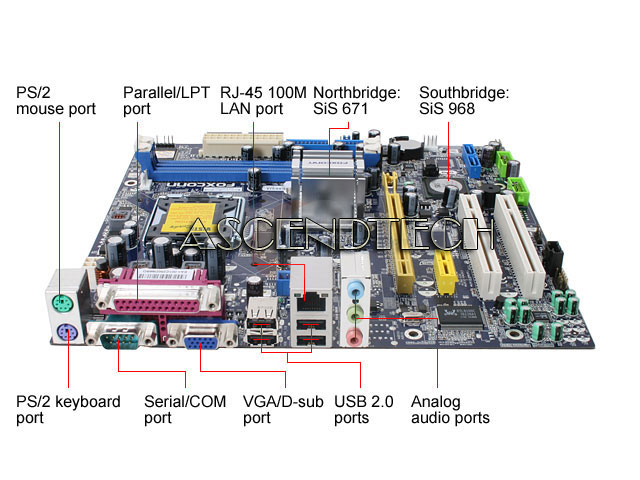

Back Panel I/O Ports
1 set 5.1 channel Audio jacks (3 jacks)
1 x Parallel port
1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x VGA port
4 x USB 2.0 ports
1 x RJ45 LAN jack
1 x Serial Port

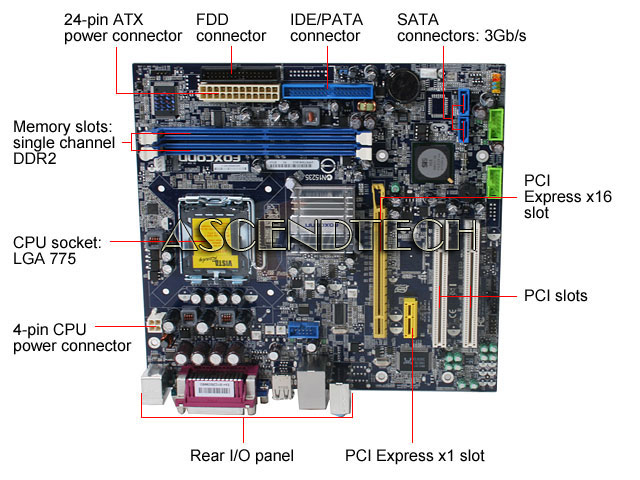

Internal I/O Connectors
ATX 24-Pin power connector
4-pin 12V power connector
CPU / System connectors
1 x CD-in connector
1 x Front Audio
1 x IDE connector
1 x IRDA
1 x Speaker
2 x USB 2.0 connectors support additional 4 ports
1 x Floppy connector
2 x SATAII connectors
1 x Front panel (color)
1 x Intruder
1 x S/PDIF out header
1 x TPM
1 x COM2
BIOS Features
4Mb flash ROM, PnP1.0a, DMI 2.5, WfM 2.0, SMBIOS 2.3, ACPI 1.0b
Support CD
Drivers, DirectX, Adobe Reader, Norton Internet Security, PDF RAID Manual
Standards/Manageability
PCI 2.3, USB2.0; WfM 2.0, DMI 2.5
Form Factor
Micro ATX (9.6" x 8.9")
