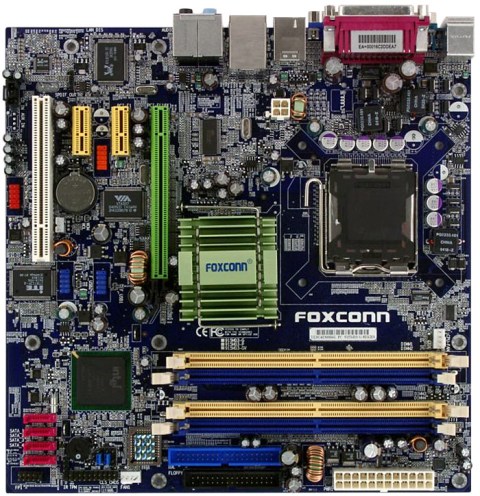

FOXCONN 915M03-G-8EKRS2 775 MOTHERBOARD

Foxconn 915M03-G-8EKRS2 Intel Socket LGA775 Motherboard. Foxconn’s 915M03-G-8EKRS2 motherboard offers superior performance, reliability and quality, at a reasonable price. This motherboard adopts the advanced Intel 915G + Intel ICH6R chipset, providing users a computer platform with a high integration-compatibility-performance price ratio.


Features:

• Intel® Pentium® 4 processors, Socket T (LGA775)
• FSB 800 / 533 MHz
• Dual channel DDR2 400/533 x4 DIMMs
• Intel® Graphics Media Accelerator 900
• PCIe x16
• ATA x1 + Serial ATA x4 (w/ RAID 0, 1, 0+1)
• IEEE 1394 (Fire Wire)
• 7.1 channel Audio (Realtek)
• GbE LAN (Realtek)
• 8 USB 2.0 ports


Specifications:

Processor: Socket T (LGA775) for Intel® Pentium® 4 processors
Chipset: Intel 915G + Intel ICH6R
Front Side Bus: 800 / 533 MHz FSB
Memory: Dual channel DDR2 400 / 533 x4 DIMMs
VGA on Die: Intel® Graphics Media Accelerator 900
Expansion Slots: 1 x PCIe x16, 2 x PCIe x1, 1 x PCI
IDE: ATA 100 x1
Serial ATA(SATA)/RAID: Support 4 Serial ATA /150 devices (w/ RAID 0, 1, 0+1)
Audio: Realtek ALC880 7.1 channel
LAN: Realtek 8110S GbE LAN Controller
IEEE1394: VIA VT6307 - (2 ports) 1 port on back panel I/O & 1 header on board

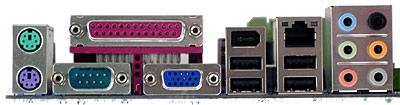

Back Panel I/O Ports:
1 x VGA
1 set 7.1 channel Audio jack
1 x PS/2 keyboard
1 x PS/2 mouse
1 x parallel
1 x COM
4 x USB 2.0
1 x RJ45
1 x IEEE 1394
Internal I/O Connectors:
2 x USB 2.0 headers support 4 ports
S/PDIF header
IEEE 1394 header
IrDA header
CD IN header
AUX IN header
BIOS Features: FWH 4MB, ACPI 1.0b, APM 1.2, PnP 1.0a, SMBIOS 2.3, USB 2.0, WfM 2.0
Standards/Manageability: PCI 2.3, USB2.0; WfM 2.0, DMI 2.0
Special Features: Wake on ring, LAN, USB, keyboard & mouse, STR (Suspend-to-Ram), STD (Suspend-to-Disk), SuperRecovery, SuperBoot, SuperBIOS-Protect, SuperSpeed by BIOS, SuperStep, SuperLogo, SuperUpdate by CD Driver
Form Factor: Micro ATX (9.6” x 9.6”)

Click here for Foxconn 915M03-G-8EKRS2 Latest Available Drivers
