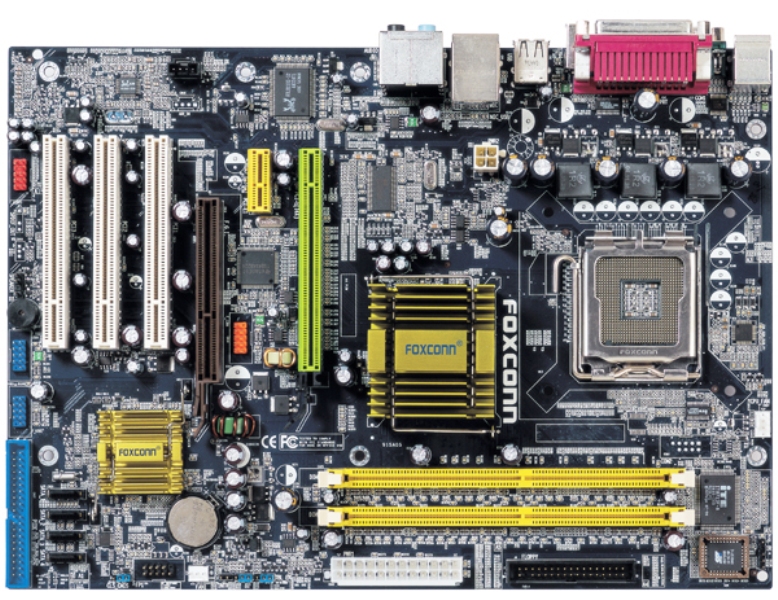

FOXCONN 915PL7AE-8S 775 MOTHERBOARD

Foxconn 915PL7AE-8S Intel Socket LGA775 Motherboard. Foxconn’s 915PL7AE-8S motherboard offers superior performance, reliability and quality, at a reasonable price. This motherboard adopts the advanced Intel 915PL + Intel ICH6 chipset, providing users a computer platform with a high integration-compatibility-performance price ratio.


* Please Note: This is an OEM motherboard and it does not come with rear I/O shield also known as back-plate cover; this part is not needed and you can still install the board in standard ATX case.


Features:

• Intel® Pentium® 4 processors, Socket T (LGA 775)
• FSB 800 / 533MHz
• Dual channel DDR 400/333 x 2 DIMMs
• PCIe x 16, FGE 8X
• ATA x 1 + Serial ATA x 4
• 7.1 channel HDA (Realtek)
• 10/100M LAN (Realtek)
• 8 USB 2.0 ports




Specifications:

Processor: Support socket T, Intel® Pentium® 4 processors
Chipset: Intel® 915PL + Intel® ICH6R
Front Side Bus: 800 MHz FSB
Memory: Support Max. 2GB, Dual Channel 400MHz / 333MHz DDR SDRAM
Expansion Slots: 1 x PCIe x 16, 1 x FGE 8X, 1 x PCIe x 1, 3 x PCI
IDE: ATA 100 x1
Serial ATA(SATA)/RAID: Support 4 Serial ATA 150 drives
Audio: Realtek ALC880; 7.1 channel High Definition Audio
LAN: RTL8100C, 10/100 M LAN

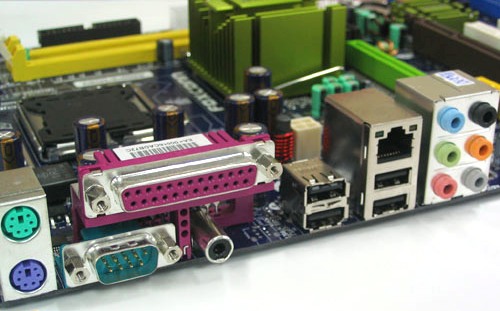

Back Panel I/O Ports:
1 x PS/2 mouse
1 x RJ45
1 x PS/2 keyboard
1 set 7.1 channel Audio jack
1 x parallel
4 x USB 2.0
1 x COM1
1 x coax. S/PDIF out
Internal I/O Connectors:
2 x USB 2.0 headers
1 x S/PDIF out header (reserve)
1 x CD-IN header
1 x IrDA header
1 x AUX IN header (reserve)
1 x Front Audio
1 x COM2 (reserve)
1 x Speaker header
1 x buzzer
BIOS Features: 4Mb flash ROM, Award BIOS, PnP1.0a, DMI 2.0, WfM 2.0, SMBIOS 2.3, ACPI 1.0b
Form Factor: ATX (12” x 8.6)
