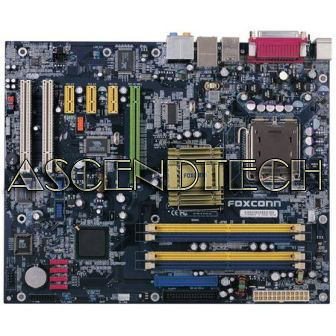

Foxconn 925A01-8EKRS2 LGA775 Motherboard

Foxconn 925A01-8EKRS2 Intel 925X Skt 775 ATX Intel Motherboard. Foxconn 925 Series Motherboard for Intel 775 CPUs Blistering speed, awesome power and astonishing multimedia experiences. That's what you'll get when you build your system around this Foxconn 925 Series motherboard for Intel's mighty Pentium 4 775 processors. If you're a gung-ho gamer or PC extremist, the Foxconn 925A01-8EKRS2 is your ideal choice. And at our incredibly low pricing, this world-class motherboard is a steal! Foxconn motherboard meets the current and future demands of high performance, power embedded computing, making it ideal for communications, transaction terminal, interactive client, industrial automation applications as well as for standard home use.

Manufacturer: Foxconn
Part Numbers: 865G7MF-SH

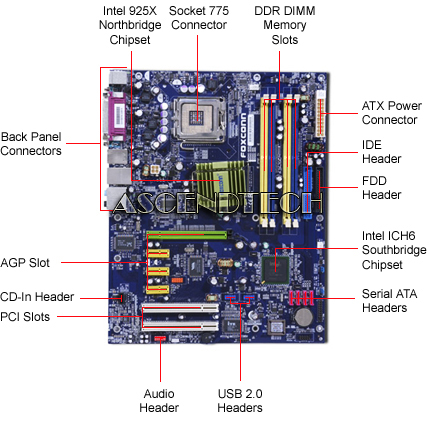

Specifications:

Processor Socket
LGA 775 Pentium 4 / Celeron D

Chipset
Intel 925X Express / Intel ICH6R

Front Side Bus
800/533MHz

Memory
DDR2 400 4GB Max Dual Channel

Video
Intel GMA 900

Expansion Slots
1 x PCIe x 16
3 x PCIe
2 x PCI

IDE
1 x ATA100 2 Dev. Max

Serial ATA(SATA)/RAID
Supports Serial ATA x 4 w / RAID 0, 1, 0+1, JBOD

Audio
AC '97 , High Definition Audio 8 Channels

LAN
10/100Mbps

IEEE1394
Yes

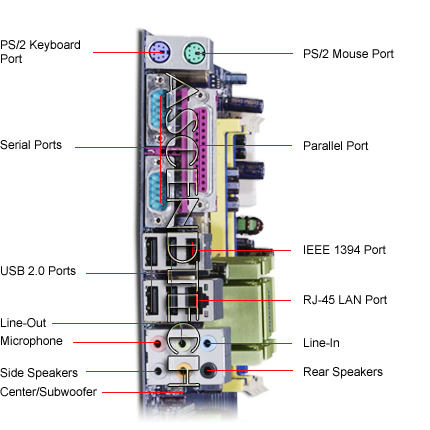

Back Panel I/O Ports
1 x PS/2 keyboard
1 x PS/2 mouse
1 x Parallel
2 x Serial Ports
1 x COM1
4 x USB 2.0
1 x RJ45

Internal I/O Connectors
4 x USB 2.0 headers, support 4 ports

Form Factor Micro
ATX (12.0" x 9.6")
