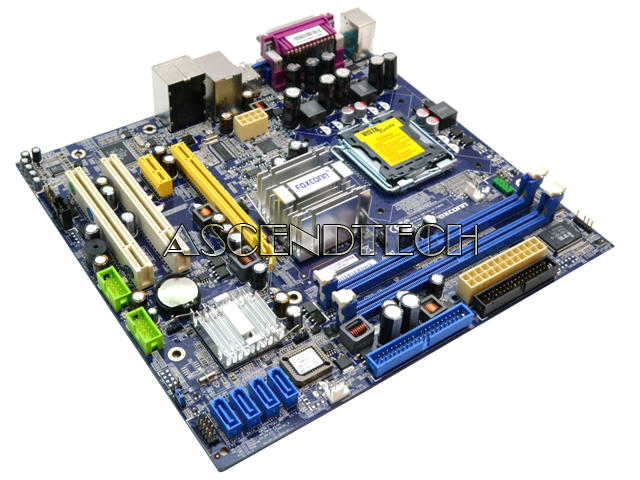

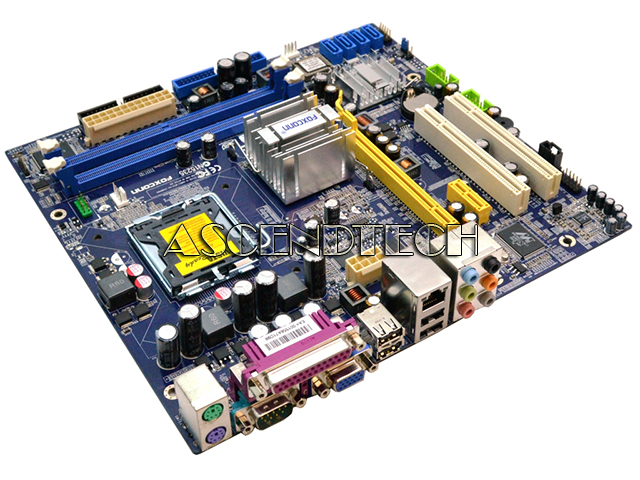

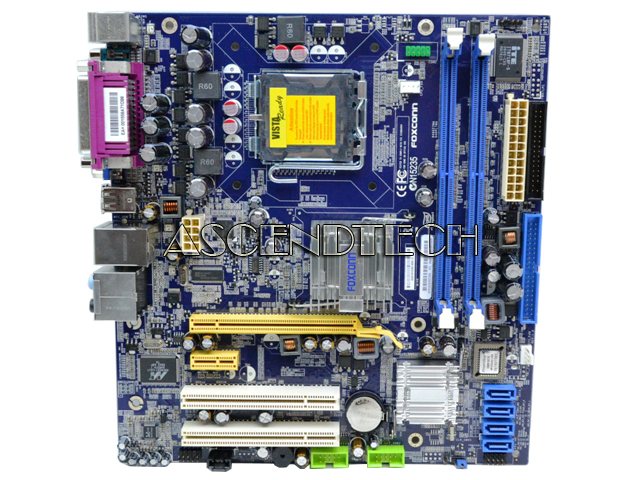

Foxconn 946GZ7MA-8KS2H Intel Motherboard
We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.
Description
Foxconn 946GZ7MA-8KS2H LGA775 Intel 946GZ DDR2 Micro ATX Motherboard. The 946GZ7MA-8KS2H supports Intel Core 2 Quad, Core 2 Extreme and Core 2 Duo processors, including those with 1066MHz FSB. This board also includes onboard graphics powered by the Intel GMA3000 chip. SATAII, 7.1channel audio, Gigabit LAN and 8x USB2.0 ports make this board the ideal choice for business and home office PCs. This motherboard supports Microsoft Windows Vista Premium.
Specifications:
| Processor | Intel Core 2 Quad, Core 2 Extreme, Core 2 Duo, Pentium D, Pentium EE, Pentium 4, and Celeron D processors, Socket T (LGA775) |
| Chipset | Intel 946GZ + ICH7 |
| Front Side Bus | 533/800/1066(oc)MHz FSB |
| Memory | Dual channel DDR2 533 / 667 x 2 DIMMs, Max 4GB |
| VGA on Die | Integrated |
| Expansion Slots | 1 x PCIe x16, 1 x PCIe x1, 2 x PCI |
| IDE | ATA 100 x1 |
| Serial ATA (SATA)/RAID | SATA II x4 |
| Audio | 7.1 channel, Realtek ALC 883 (HDA) |
| LAN | GbE LAN, Marvell 88E8001(PCI) |
| IEEE1394 | N/A |

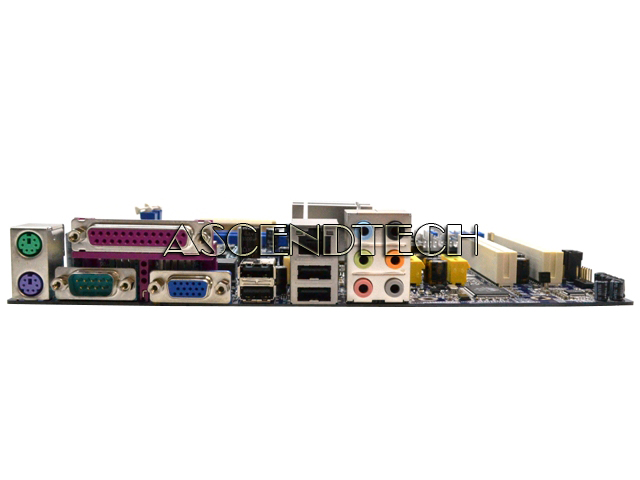

| Rear Panel I/O Ports | x1 PS/2 Keyboard Port x1 PS/2 Mouse Port x1 Parallel Port x1 RJ-45 (Ethernet) Jack x4 USB 2.0 Ports x1 Serial Port x6 7.1 Channel Audio Jacks x1 VGA Port |
| Internal I/O Connectors | x2 USB 2.0 Headers, Support 4 Ports x1 Speaker (Reserve) x1 IrDA Header x1 Intruder x1 CD IN Header x1 AUX-IN Header x1 COM2 Header (Reserve) x1 Front Panel Header x1 Buzzer x1 S/PDIF Out Header x1 Front Audio Header |
| BIOS Features | FWH 4MB, ACPI 2.0b, APM 1.2, PnP 1.0a, SMBIOS 2.3, USB 2.0 |
| Support CD | Drivers, DirectX, Adobe Reader, SuperUtilities, Norton Internet Security, Word perfect |
| Standards/Manageability | PCI 2.3, USB2.0, DMI 2.0 |
| Special Features | SuperRecovery, SuperBoot, SuperBIOS-Protect, SuperLevel, SuperStep, SuperLogo, SuperUpdate |
| Form Factor | Micro ATX (9.6” x 9.0”) |
