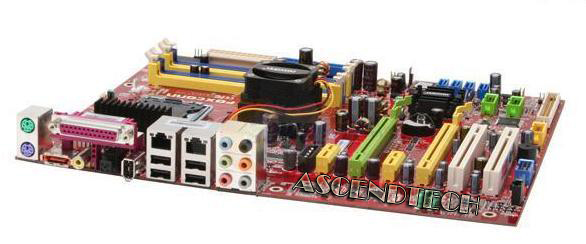

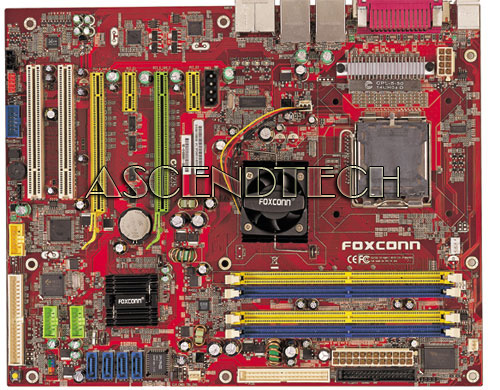

FOXCONN 975X7AB-8EKRS2H LGA775 CROSSFIRE

Foxconn 975X7AB-8EKRS2H LGA 775 Intel 975X ATX Intel CrossFire Motherboard. Based on the Intel® 975X chipset, the 975X7AB-8EKRS2H motherboard supports the new 1066Mhz FSB standard for Intel® Core™2 Extreme and Core™2 Duo processors. Designed for performance systems, and designed to meet the demanding requirements of PC enthusiasts, this motherboard has a range of features including CrossFire™ support for multi-GPU configurations and Digital Power Management for greater system stability and more responsive performance tweaking. FoxOne™ - Foxconn's proprietary system monitoring and performance management system is integrated on board, along with Dual Gigabit LAN, 8-channel HD Audio, SATAII and eSATA connections, Firewire (1394a) and RAID.



Features:

• Supports compatible Intel® Socket 775 (Socket T) processors; Intel® Core™2 Extreme, Core™2 Duo, Pentium® EE, Pentium® D, Pentium® 4 processors
• Intel 975X Express (refresh) + ICH7R chipset
• 1066/800/533 MHz FSB
• Dual channel DDR2-533/667/800(OC) x 4 DIMMs w/ or w/o ECC
• Dual PCIe x16 ( CrossFire compatible ), 2 x PCIe x1, 2 x PCI
• 2 x PATA + 4 x SATA II/300 with RAID (0, 1, 0+1, 5) + 1 x eSATA
• 7.1 channel, high definition audio (Realtek)
• Dual Gigabit Ethernet LAN (Marvell)
• 8 USB 2.0 ports
• 2 x IEEE-1394a
• Supports ATI CrossFire
• Digital PWM
• RoHS compliant



Specifications:

Processor: Supports compatible Intel® Socket 775 processors: Intel® Core™2 Extreme, Core™2 Duo, Pentium® EE, Pentium® D, Pentium® 4 processors, Socket T (LGA775)
Chipset: Intel® 975X Express + ICH7R
Front Side Bus: 1066 / 800 / 533 MHz FSB
Memory: Dual channel DDR2 800 (OC) / 667 /533 x 4 DIMMs/ECC, Max 8GB
VGA on Die: N/A
Expansion Slots: 2 x PCI Express x16 (function as 2 x8 under ATI CrossFire), 2 x PCI Express x1, 2 x PCI
IDE: 1 x ATA/100 + 1 x ATA/133
Serial ATA(SATA)/RAID: 4 x SATA II/300, supports RAID 0, 1, 0+1, 5, and Matrix Storage; second SATA II/300 controller with 1 x eSATA
Audio: 7.1 channel, high definition (Realtek)
LAN: 2 x Gigabit Ethernet (10/100/1000) controllers, dual ports, PCIe (Marvell)
IEEE1394: 2 x 1394a; 1 x 6-pin in rear I/O area + 1 front via internal header

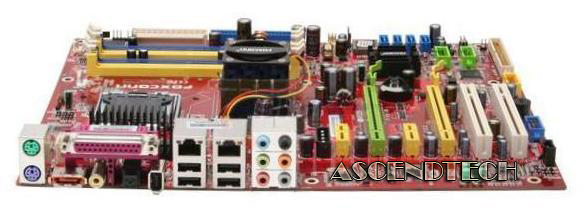

Back Panel I/O Ports:
1 set 7.1 channel audio (6 jacks)
1 x PS/2 keyboard
1 x PS/2 mouse
2 x RJ45 (LAN)
4 x USB 2.0
1 x parallel (SPP/ECP/EPP)
1 x IEEE-1394a (6-pin)
2 x S/PDIF (1 x coax out + 1 x optical out)
1 x eSATA
Internal I/O Connectors:
1 x floppy disk drive
Front audio header
2 x USB 2-port headers, ver. 2.0
1 x IEEE-1394a header
BIOS Features: 4Mb flash EEPROM with LAN boot, PnP, ACPI, WfM, DMI 2.0
Standards/Manageability: PCI 2.3, USB2.0; WfM 2.0, DMI 2.0
Special Features:
ATI Crossfire Technology via: 2 ATI Based GPU- same brand/model video cards.
Multi-Graphic Card Technology (Nvidia SLI Technology) is NOT supported- requires non-supported Nvidia drivers. Foxconn does not support/endorse nor provide such drivers.

STR (Suspend-to-Ram); STD (Suspend-to-Disk); Fox One/Tiger One, Foxocnn LiveUpdate; supports ATI CrossFire; digital PWM, RoHS compliant
Form Factor: ATX (12” x 9.6”)
