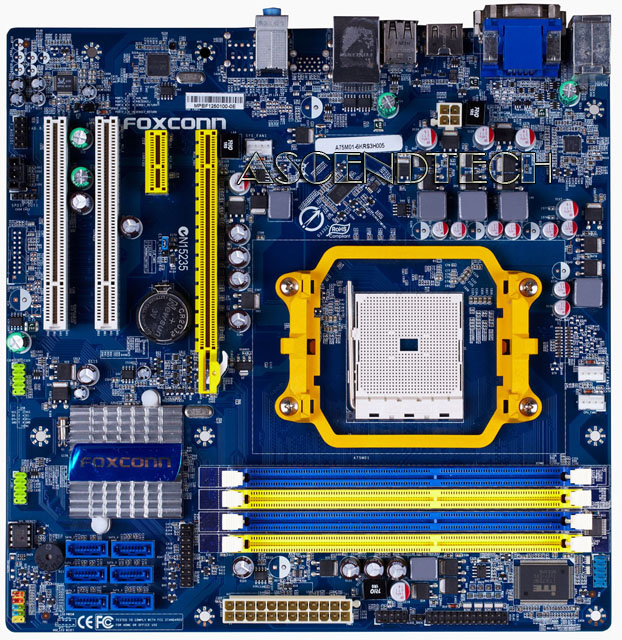

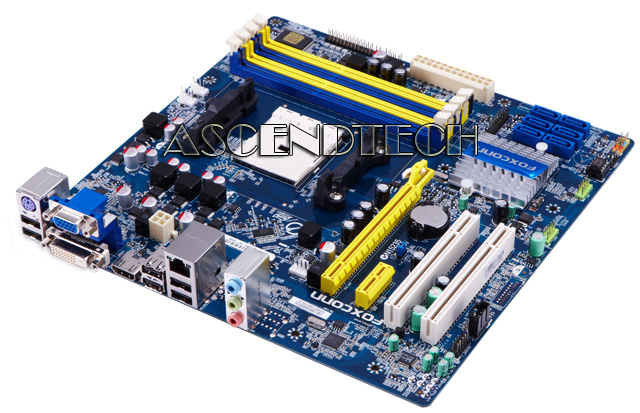

Foxconn A55M FM1 DDR3 DVI VGA HDMI Board

Foxconn A55M Support FM1 socket CPU offers enhanced connectivity and entertainment capability, backed-up by high-performance features and components. Based on the AMD® A55 (Hudson D2) chipset with an advanced DirectX 11 graphics engine and AMD UVD 3.0 technology. UVD supports Blue-Ray and HD-DVD content, whilst offloading power and processor-intensive video decoding from the CPU to the graphics core.Supporting AMD the Llano APU processors with UMI technology, and supports Dual DDR3 1866MHz memory for better overall system performance. Support AMD Radeon HD6xxx graphics and Dual Graphics capable technology. The A55M support AMD Turbo Core 2.0 technology.






Features:

• AMD FM1 socket CPU , Quad-Core CPU, Up to 4 "Husky" CPU Cores
• AMD A55 Chipset (Hudson D2)
• Dual channel DDR3 1866/1600/1333 x 4 DIMMs, Max. 64GB
• 1* PCIe x16, 1* PCIe x1,2* PCI
• 6* SATAII, SATA RAID 0,1, 10
• Supports 5.1 channel audioGigabit LAN
• Supports Gbe Lan

Specifications:

Processor: AMD FM1 socket CPU , Quad-Core CPU; Up to 4 "Husky" CPU Cores
Chipset: AMD A55 Chipset (Hudson D2)
Memory: Dual channel DDR3 1866/1600/1333 x 4 DIMMs, Max. 64GB
Expansion Slots: 1* PCIe x16, 1* PCIe x1,2* PCI
IDE: N/A
Serial ATA(SATA)/RAID: 6* SATAII ,SATA RAID 0,1,10
Audio: Supports 5.1 channel audio
LAN: Supports Gbe Lan
IEEE1394: N/ALAN: Gigabit LAN by Realtek 8111DL

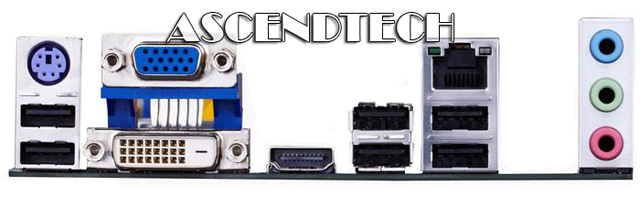

Back Panel I/O Ports:
1x PS/2 keyboard port
1x VGA port
1x DVI port
1x audio jack supports 3 jacks
1x HDMI
6x USB 2.0 ports
1x RJ45 Lan port
Internal I/O Connectors:
1x ATX 24-Pin power connector
1x 4-pin ATX 12V power connector
3x 4-pin CPU / System Fan connector
1x CD-in connector
1x Speaker header
6x Serial ATA connectors
2x USB 2.0 headers
1x parallel header
1x Intrusion Alarm header
1x TPM/TCM header
1x Buzzer (reserved)
1x COM header
1x Front Panel header
1x S/PDIF out header(reserved)
1x Front Audio header
1x IR/CIR header (default IR)
BIOS Features: 16Mb flash EEPROM w/ LAN boot PnP, ACPI, WfM, DMI 2.0
Standards/Manageability: supports up to 10 USB 2.0 ports
Form Factor: mATX form factor 9.6x9.6 inch - 4 layers PCB



CPU Name	CPU Model	Cpu Cache	CPU Core	Wattage
Amd A-Series Processor 2.50GHz	3300	512KB*2	Llano	65W
Amd A-Series Processor 2.50G	3300	512KB*2	Llano	ESW
Amd A-Series Processor 2.70GHz	3400	512KB*2	Llano	65W
Amd A-Series Processor 2.70G	3400	512KB*2	Llano	ESW
Amd A-Series Processor 2.80GHz	3420	512KB*2	Llano	65W
Amd A-Series Processor 2.10GHz	3500	1MB*3	Llano	65W
Amd A-Series Processor 2.10G	3500	1MB*3	Llano	ESW
Amd A-Series Processor 2.10GHz	3600	1MB*4	Llano	65W
Amd A-Series Processor 2.10G	3600	1MB*4	Llano	ESW
Amd A-Series Processor 2.20GHz	3620	1024KB*4	Llano	65W
Amd A-Series Processor 2.60GHz	3650	1MB*4	Llano	100W
Amd A-Series Processor 2.60G	3650	1MB*4	Llano	ESW
Amd A-Series Processor 2.70GHz	3670	1024KB*4	Llano	100W
Amd A-Series Processor 2.40GHz	3800	1MB*4	Llano	65W
Amd A-Series Processor 2.40G	3800	1MB*4	Llano	ESW
Amd A-Series Processor 2.50GHz	3820	1024KB*4	Llano	65W
Amd A-Series Processor 2.90GHz	3850	1MB*4	Llano	100W
Amd A-Series Processor 2.90G	3850	1MB*4	Llano	ESW
Amd A-Series Processor 3.0GHZ	3870	1024KB*4	Llano	100W
Amd Athlon™ Processor 2.80GHz	221X	512KB*2	Llano	65W
Amd Athlon™ Processor 2.80G	221X	512KB*2	Llano	ESW
Amd Athlon™ Processor 2.60GHz	631X	1MB*4	Llano	100W
Amd Athlon™ Processor 2.60GHz	631X	1MB*4	Llano	65W
Amd Athlon™ Processor 2.60G	631X	1MB*4	Llano	ESW
Amd Athlon™ Processor 2.80GHz	641X	1MB*4	Llano	100W
Amd Athlon™ Processor 2.80G	641X	1MB*4	Llano	ESW
Amd E2-Series Processor 2.40GHz	3200	512KB*2	Llano	65W
Amd E2-Series Processor 2.40G	3200	512KB*2	Llano	ESW
Amd Sempron™ Processor 2.50GHz	198X	512KB*2	Llano	65W
Amd Sempron™ Processor 2.50G	198X	512KB*2	Llano	ESW
