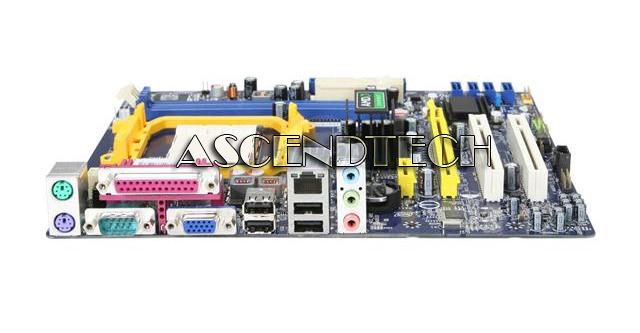

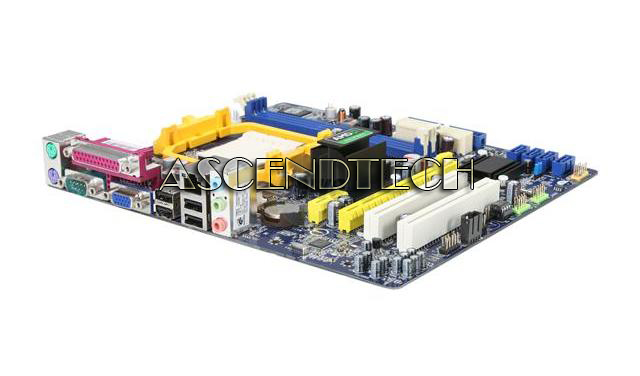

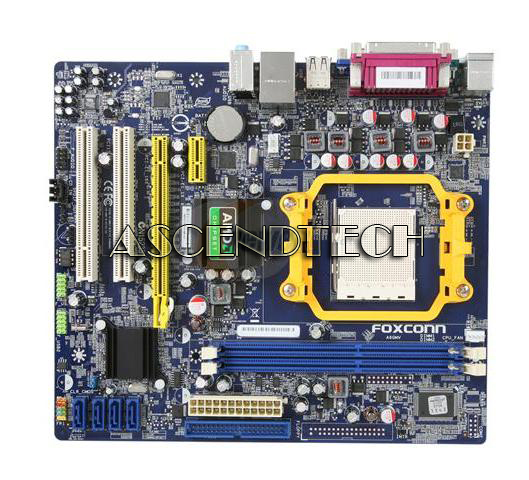

Foxconn A6GMV AM3 690G DDR3 Motherboard

Foxconn A6GMV AM3 AMD 690G Micro ATX AMD Motherboard. Based on the AMD 690G chipset with SB600 southbridge, the A6GMV supports socket AM3 processor, AMD Phenom™II model. The ATI Radeon™ 1250 graphics engine with onboard VGA output meets everyday home and office needs, and with Dual channel DDR3 memory support up to 1333MHz, the A6GMV delivers all-round system performance. Gigabit LAN, 5.1 channel HD audio and SATA RAID area all included onboard, and with the added benefit of FoxOne™ Premium technology, for easy overclocking and system-monitoring, this motherboard represents excellent value for money, whilst still providing excellent productivity and performance.

Manufacturer: Foxconn
Part Number: A6GMV

Specifications:

Processor

AMD Phenom™II,Athlon™II processor, Socket AM3

Chipset

AMD® 690G + SB600

Front Side Bus

2000 MT/s HyperTransport™

Memory

Dual channel DDR3 1333/1066 x 2 DIMMs, Max 8GB

VGA on Die

Integrated ATI®Radeon™ 1250 graphics

Expansion Slots

1* PCIe x16, 1* PCIe x1, 2* PCI

IDE

1* ATA133

Serial ATA(SATA)/RAID

4* Serial ATA II w / RAID 0, 1, 0+1 JBOD

Audio

5.1 channel HD audio

LAN

Gigabit LAN

IEEE1394

N/A

Back Panel I/O Ports

1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x VGA port
1 x Serial port
1 x Audio jack supports 3 jacks
4 x USB 2.0 ports
1 x RJ45 LAN port
1 x Parallel port

Internal I/O Connectors

1 x ATX 24-Pin power connector
1 x 4-pin ATX 12V power connector
2 x 4-pin CPU / System FAN connectors
1 x ATA133 IDE connector
1 x Front Audio header
1 x Front Panel header
2 x USB 2.0 headers support additional 4 ports
4 x Serial ATAII connectors
1 x Intrusion Alarm header
1 x CD-in connector
1 x S/PDIF out header
1 x Speaker

BIOS Features

8Mb flash EEPROM w/ LAN boot PnP, ACPI, WfM, DMI 2.0

Standards/Manageability

PCI 2.3, USB2.0, DMI 2.5

Form Factor

Micro ATX (9.6" x 8.4")
