FOXCONN A74ML-K 3.0 AM3 DDR3 SATA PCI-e

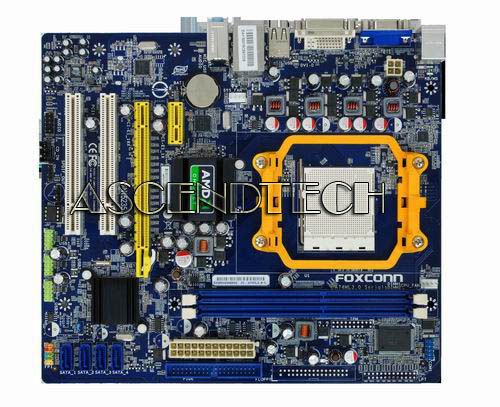

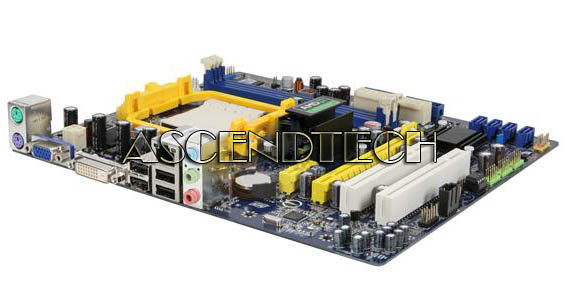

Foxconn A74ML-K 3.0 AMD Socket AM3 Motherboard. Get affordable performance with Foxconn's A74ML-K 3.0 motherboard. Ideal for home or business environments, this micro-ATX board is based on AMD's 740G + SB710 chipsets to support multi-core CPU's.

Features:

- AMD Phenom™ II Athlon™ II processors Socket AM3 with HT1.0 interface
- 2000 MT/s HyperTransport™
- Dual channel DDR3 1333/1066 x 2 DIMMs, Max 8GB
- 1* PCIe x16, 1* PCIe x1, 2* PCI
- ATA 133 x 1, SATAII x 4
- 5.1 channel HD Audio
- Gigabit LAN
- 10 USB 2.0 ports

Specifications:

Processor: AMD Phenom™II.Athlon™II processors, Socket AM3
Chipset: AMD® 740G + SB710
Front Side Bus: 2000 MT/s HyperTransport
Memory: Dual channel DDR3 1333/1066 x 2 DIMMs, Max 8GB
VGA on Die: Integrated ATI® Radeon™ 2100 graphic
Expansion Slots: 1* PCIe x16, 1* PCIe x1, 2* PCI
IDE: ATA 133 x 1
Serial ATA(SATA)/RAID: SATAII x 4 w / RAID 0, 1, 10
Audio: 5.1 channel HD Audio
LAN: Gigabit LAN
Back Panel I/O Ports:
1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x DVI port
1 x VGA port
1 x Audio jack supports 3 jacks
4 x USB 2.0 ports
1 x RJ45 LAN port
Internal I/O Connectors:
1 x ATX 24-Pin power connector
1 x 4-pin ATX 12V power connector
2 x 4-pin CPU / System FAN connectors
1 x ATA133 IDE connector
1 x CD-in connector
1 x Front Audio header
1 x Front Panel header
3 x USB 2.0 headers support additional 6 ports
4 x Serial ATAII connectors
1 x Intrusion Alarm header
1 x S/PDIF out header
1 x COM header
1 x Speaker
BIOS Features: 8Mb flash EEPROM w/ LAN boot PnP, ACPI, WfM, DMI
Form Factor: Micro ATX ( 9.6" x 8.4")

Click here for Foxconn A74ML-K 3.0 Latest Available Drivers

CPU Support List:
