FOXCONN A76ML-K AM2+ AMD 760G DDR2-1066

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.
Foxconn A76ml-K Am2+ Amd 760G Ddr2-1066

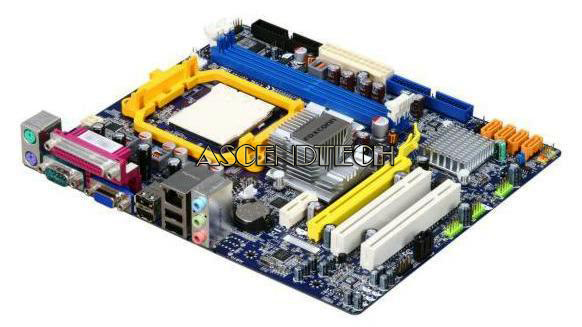

  Enlarge
Foxconn A76ml-K Am2+ Amd 760G Ddr2-1066
Foxconn A76ml-K Am2+ Amd 760G Ddr2-1066
Foxconn A76ml-K Am2+ Amd 760G Ddr2-1066
*Note this image is for descriptional purposes.
Actual product may vary.
Item Code MB64FOXCNA76MLK
Brand Foxconn
Model A76ML-K
Category Amd Socket Am2+ Am3 Motherboards

Description

Foxconn A76ML-K AM3 Ready / AM2+ / AM2 AMD 760G Micro ATX AMD Motherboard. Supporting the AMD Phenom processor, these sockets AM3/AM2+ motherboards features the AMD 760G chipset and an advanced DirectX 10 graphics engine. Supporting 5.2GT/S Hyper Transport, and the A76ML-K also allows you to build powerful PCs on a budget. Supporting up to 4GB of Dual Channel DDR2 memory at 1066MHz . This motherboard enables full Microsoft support. Gigabit LAN and 6-channel HD audio are included onboard.

Features:

AMD K10 PROCESSOR SUPPORT
The Foxconn A76ML-K supports AM3 AMD processors including the Athlon 64 FX, Athlon 64 X2, Sempron and the latest AM2+ K10 Phenom II, Phenom x4, Phenom x3 series AMD processors.

PCI EXPRESS X16 GRAPHICS INTERFACE
The PCI Express x16 graphics interface delivers over 3.5 times the bandwidth of AGP 8X to support the latest high-performance graphics cards.

SATA II WITH RAID SUPPORT
The second generation SATA interface delivers up to 300MB/sec transfer speed, doubling that of the first generation Serial ATA. The on-board four SATA II ports support RAID 0, 1 and 10 for better performance and enhanced data security.

GIGABIT ETHERNET CONNECTIVITY
The Foxconn A76ML-K features a fast Gigabit network interface for high-speed LAN connections at up to 1000Mbps data transfer rates with advanced security features to ward off malicious attacks. Gigabit LAN is ideal for supercharged seamless streaming of Internet audio and video content.



Specifications:

ProcessorAMD Phenom II, Phenom x4, Phenom x3, Athlon, Sempron processors, Socket AM3 and AM2+
ChipsetAMD 760G + SB710
Front Side Bus5.2 GT/s HyperTransport
MemoryDual channel DDR2 1066/800/667 x 2 DIMMs, Max. 8GB
VGA on DieATI Radeon 3000
Expansion Slots1* PCIe2.0 x16, 1* PCIe2.0 x1, 2* PCI slots
IDE1* ATA133
Serial ATA(SATA)/RAID4* SATAII w / RAID 0, 1, 10
Audio5.1 channel HDA by VIA VT1708B
LANGigabit LAN by Realtek RTL8111D

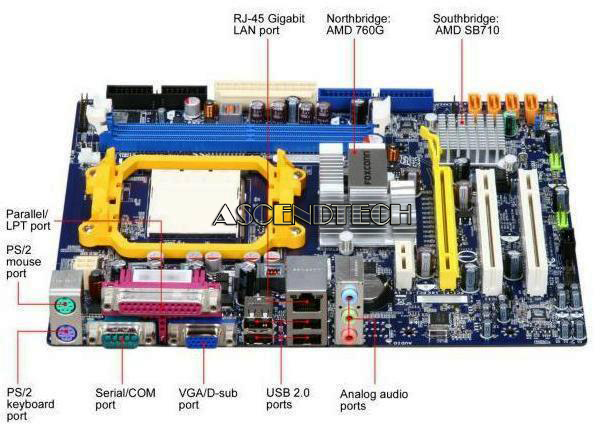

Back Panel I/O Ports1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x VGA port
1 x Printer port
1 x Audio jack supports 3 jacks
1 x Serial port
4 x USB 2.0 ports
1 x RJ45 LAN jack

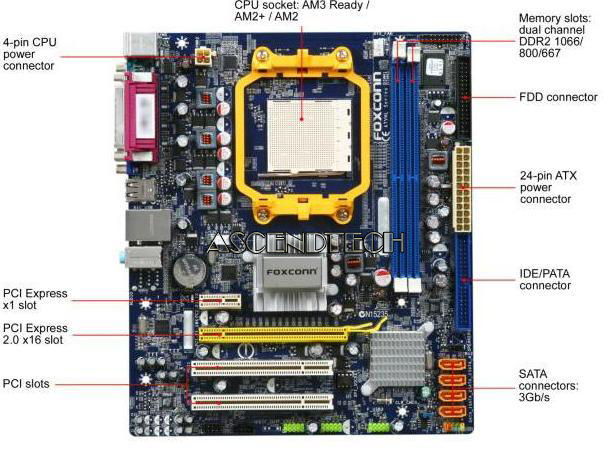

Internal I/O Connectors1 x ATX 24-pin power connector
1 x 4-pin ATX 12V power connector
2 x 4-pin CPU/System Fan connectors
1 x Floppy connector
1 x CD-in connector
1 x Front Audio header
1 x Front Panel header
3 x USB 2.0 connectors support additional 6 ports
4 x SATAII connectors
1 x TPM header
1 x ATA133 IDE connector
1 x Intrusion Alarm header
1 x Speaker header
1 x IrDA header
BIOS Features8Mb flash EEPROM w/ LAN boot PnP, ACPI, WfM,
Standards/ManageabilityPCI 2.3, USB2.0, DMI 2.5
Form FactoruATX (9.6" x 8.2")
